Overview

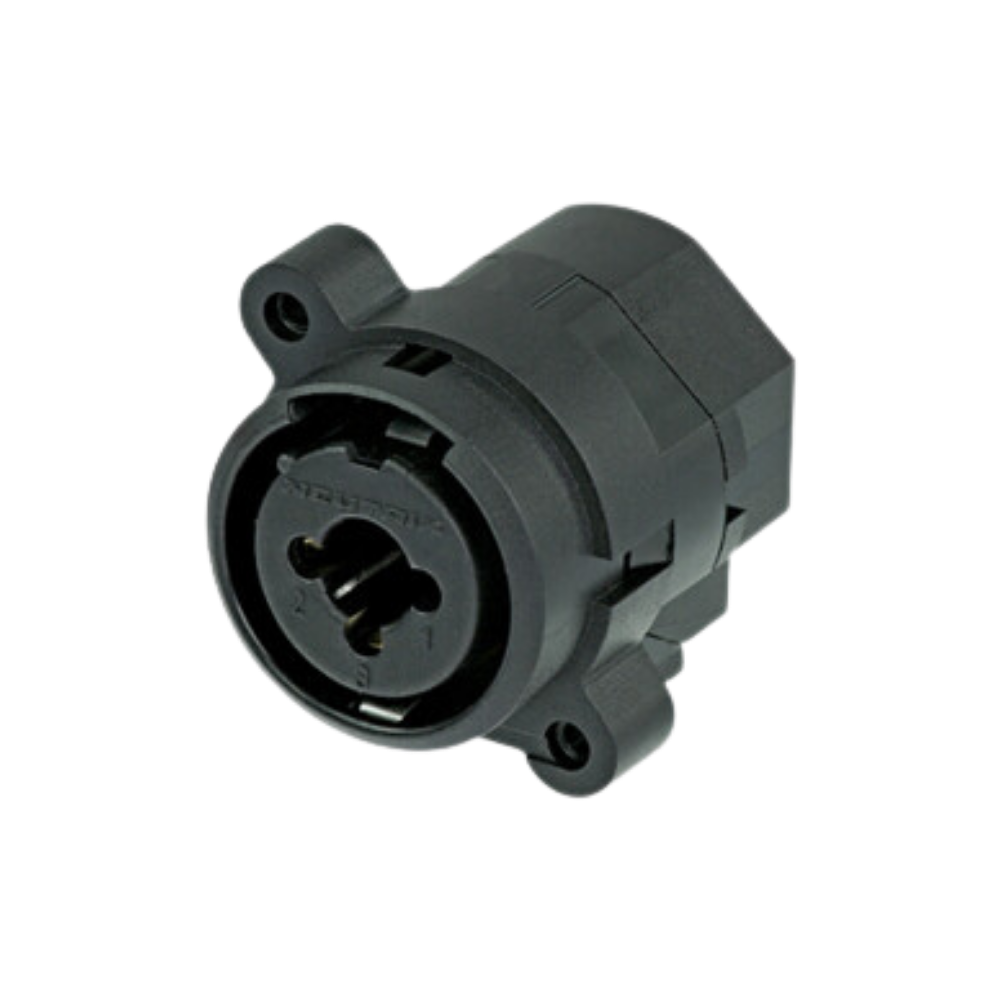

The Neutrik NCJ10FI-H-0 is a combo chassis connector that combines a 3-pole XLR female receptacle and a 1/4 inch switching TRS stereo jack with switching ground contact in a compact XLR housing. Designed for horizontal PCB mounting, it features a retention spring for secure plug engagement while providing microphone, line input, and advanced signal routing connectivity.

Professional Switching Audio Performance

The NCJ10FI-H-0 supports both XLR and switching TRS connections within one connector. Its three switching contacts and switching ground contact provide flexible normalling and signal routing functions for professional audio equipment. The very low conductor capacitance makes it suitable for digital audio applications.

Durable PCB Mount Construction

Built for professional equipment manufacturers, the connector features a horizontal PCB mount configuration with rear mounting installation. Gold-plated contacts provide reliable conductivity, while the retention spring helps maintain secure plug engagement in demanding professional environments. The hybrid construction combines two connector formats into a single space-saving housing.

Applications

•
  Audio mixers and consoles

•
  Studio patching and routing systems

•
  Microphone and line input panels

•
  Recording and broadcast equipment

•
  Digital audio systems

•
  AV integration equipment
