Overview

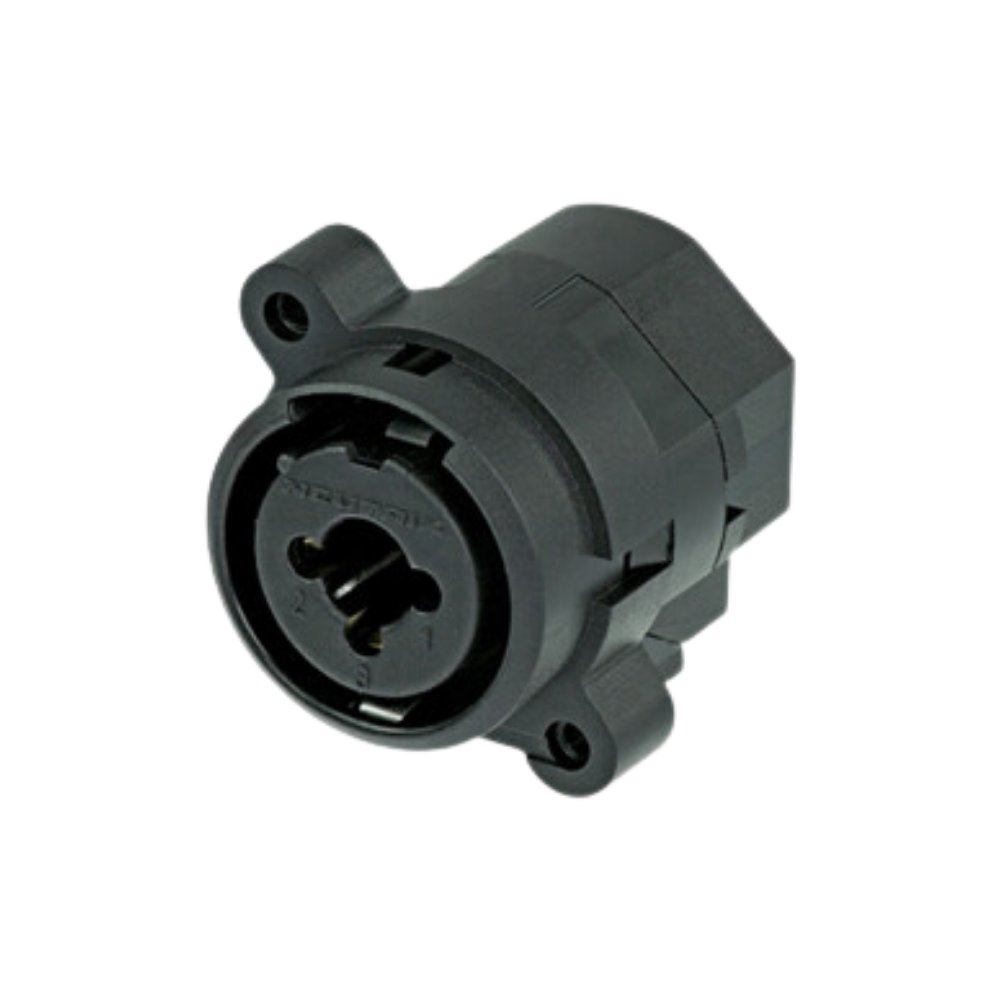

The Neutrik NCJ5FI-H-0 is a combo chassis connector that combines a 3-pole XLR female receptacle and a 1/4 inch TS mono jack in a compact XLR housing. Designed for horizontal PCB mounting, it features a retention spring for secure plug engagement while providing microphone, line-level, and instrument input connectivity in a single connector.

Professional Audio Performance

The NCJ5FI-H-0 supports both XLR and mono jack connections in one housing, making it ideal for professional audio equipment with multiple input requirements. Its very low conductor capacitance makes it suitable for digital audio applications, while the integrated design simplifies equipment layouts and panel space requirements.

Durable PCB Mount Construction

Built for professional equipment manufacturers, the connector features a horizontal PCB mount configuration with rear mounting installation. Gold-plated contacts ensure reliable conductivity, while the compact hybrid design reduces panel space requirements by combining two connector formats into a single housing.

Applications

•
  Audio mixers and consoles

•
  Microphone and line input panels

•
  Instrument input connections

•
  Recording and studio equipment

•
  Digital audio systems

•
  AV integration equipment
