Overview

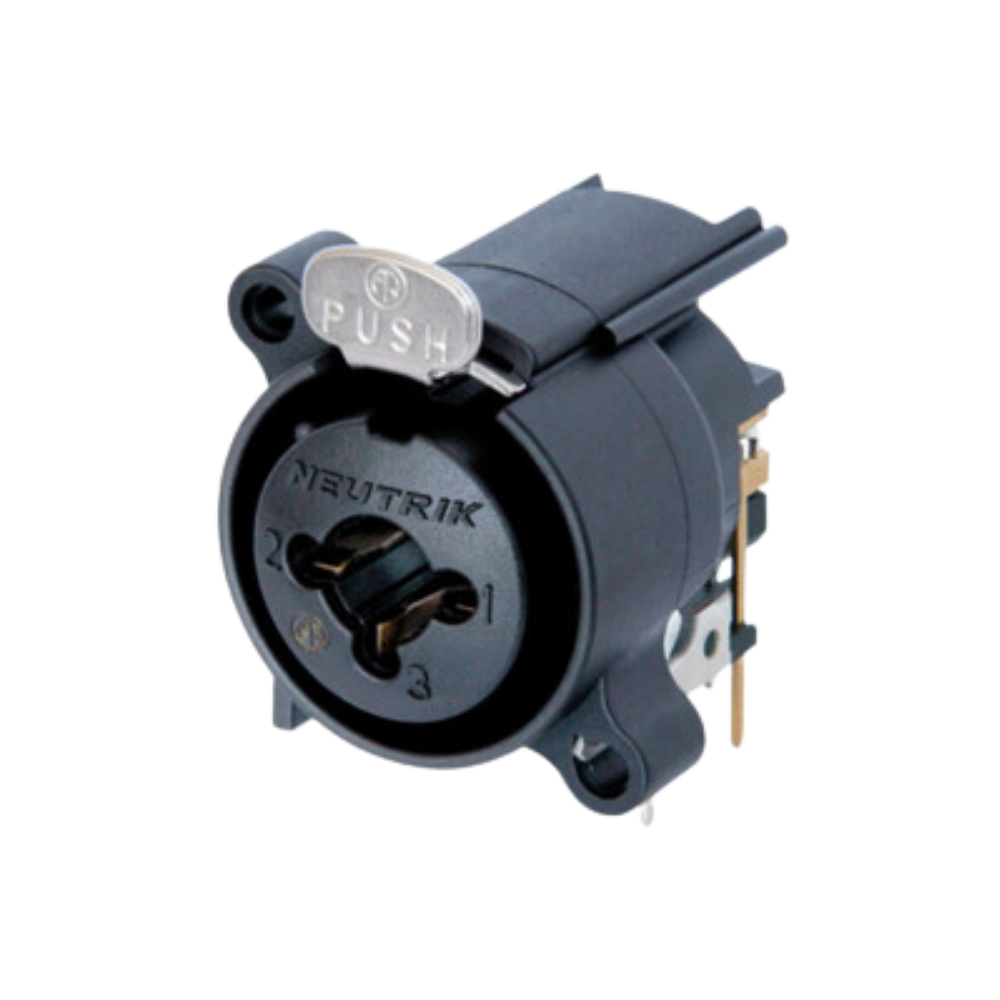

The Neutrik NCJ6FA-H is a combo chassis connector that combines a 3-pole XLR female receptacle and a 1/4 inch TRS jack in a compact XLR housing. Designed for horizontal PCB mounting, it provides balanced microphone, line, and instrument input connectivity while reducing panel space requirements.

Professional Audio Performance

The NCJ6FA-H supports both XLR and TRS connections in a single connector, making it ideal for professional audio equipment with multiple input requirements. Its very low conductor capacitance makes it suitable for digital audio applications, while the combined design simplifies system integration and panel layouts.

Durable PCB Mount Construction

Built for professional equipment manufacturers, the connector features a horizontal PCB mount configuration and rear mounting design. The compact housing provides significant space savings while remaining compatible with Neutrik A Series front panel cut-outs for straightforward integration.

Applications

•
  Audio mixers and consoles

•
  Microphone and line input panels

•
  Instrument input connections

•
  Recording and studio equipment

•
  Digital audio systems

•
  AV integration equipment
