Overview

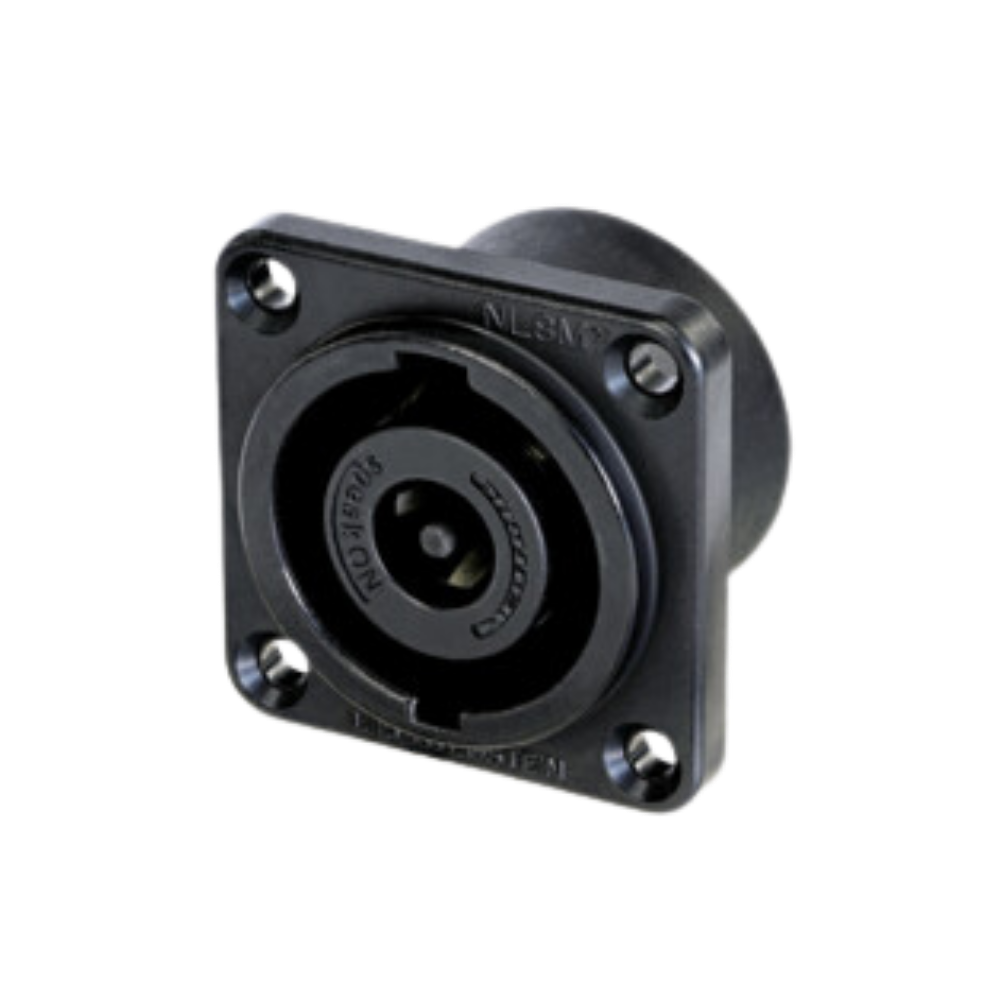

The Neutrik NL8MPRXX is an 8-pole male speakON chassis connector designed for professional loudspeaker and amplifier interconnections. Featuring a metal square G-size flange with countersunk through holes and 3/16 inch flat tab terminals, it provides secure panel-mounted speaker connections for demanding professional audio applications.

Professional Audio Performance

The NL8MPRXX incorporates Neutrik's proven Quick Lock metal locking system, ensuring electrical contact is established only after the connector is fully locked. With a continuous current rating of 30 A rms per contact, it delivers dependable performance for professional loudspeaker systems and is IEC 61984 certified for equipment designed to IEC 62368-1.

Durable Professional Construction

Built with an extremely robust zinc die-cast metal flange and a glass-reinforced UL 94 V-0 insert, the NL8MPRXX is engineered for long-term reliability in harsh professional environments. Silver-plated copper alloy contacts, precise keyway alignment, and support for both front and rear mounting ensure secure installation and dependable operation.

Applications

•
  Professional loudspeaker systems

•
  Power amplifier panels

•
  Live sound equipment

•
  Touring audio systems

•
  Rental and staging equipment

•
  Professional audio installations
