Overview

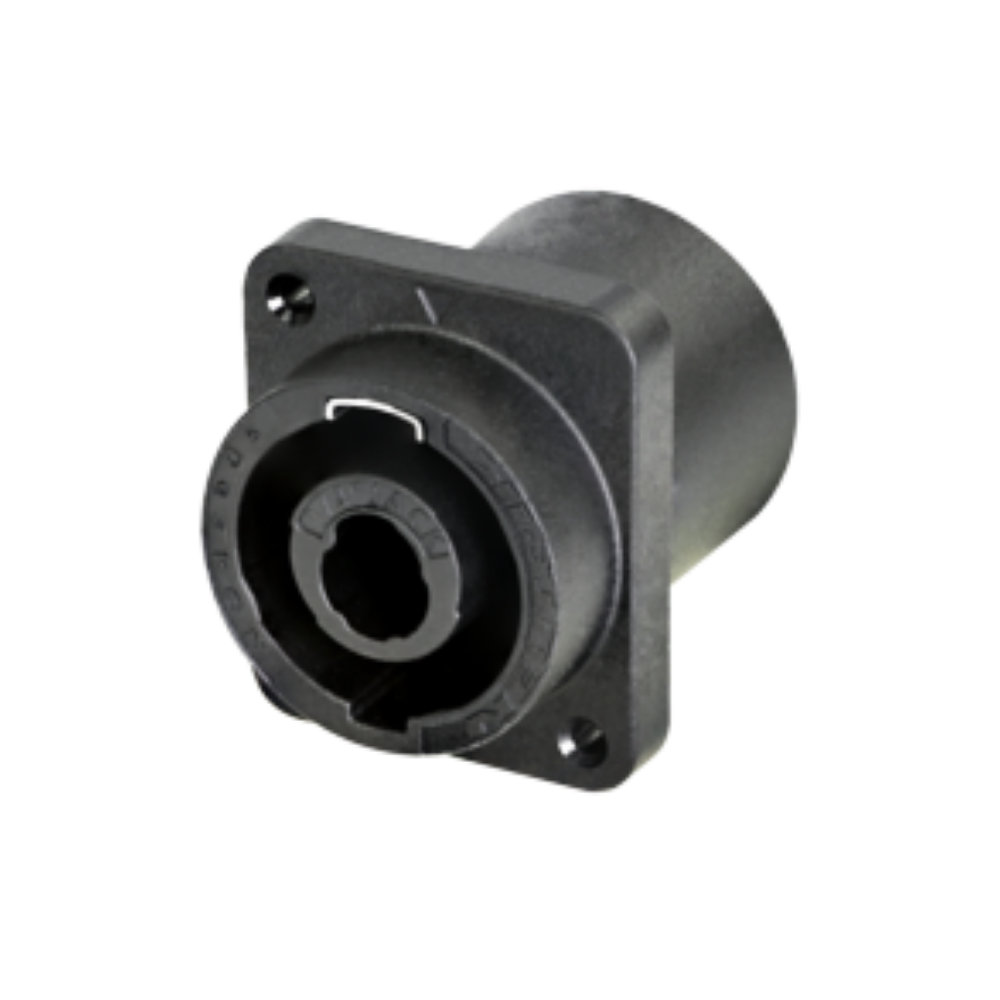

The Neutrik NLJ2MDXX-H is a 2-pole speakON Combo chassis connector that combines a speakON receptacle with a 1/4 inch TS jack socket in a single D-size housing. Designed for horizontal PCB mounting, it shares the same PCB footprint and panel cut-out as the NL4MD-H, providing a compact, space-saving solution for professional loudspeaker and amplifier equipment.

Professional Audio Performance

The hybrid design accepts both 2-pole and 4-pole speakON cable connectors as well as 1/4 inch TS jack plugs using two contacts. Neutrik's Quick Lock mechanism ensures electrical contact is established only after the connector is fully locked, while the standard PA wiring connects 1+ to Tip and 1− to Sleeve for dependable loudspeaker operation.

Durable PCB Mount Construction

Constructed from glass-reinforced UL 94 V-0 polyamide with silver-plated copper alloy contacts, the NLJ2MDXX-H is built for long-term reliability. The rear-mount horizontal PCB design with self-tapping A-screw mounting holes simplifies installation while meeting IEC 61984 certification for IEC 62368-1 compliant equipment.

Applications

•
  Professional loudspeaker systems

•
  Power amplifier panels

•
  Live sound equipment

•
  Touring audio systems

•
  Rental and staging equipment

•
  Space-saving professional audio installations
