Overview

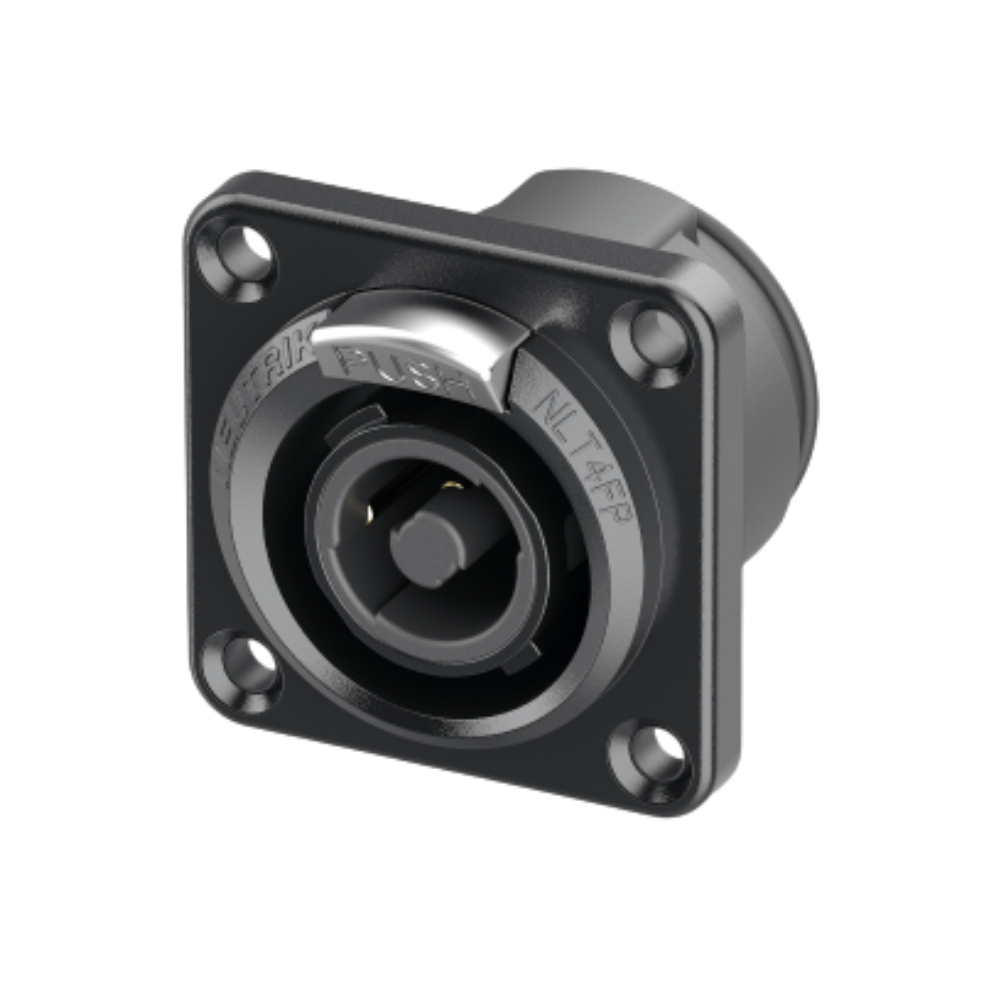

The Neutrik NLT4FD-V-BAG is a 4-pole female speakON STX Series chassis connector designed for vertical PCB mounting. Featuring an extremely rugged black metal housing with a square G-size flange and self-tapping A-screw mounting holes, it is engineered for heavy-duty amplifier-to-loudspeaker applications in demanding touring and live sound environments.

Professional Audio Performance

The NLT4FD-V-BAG delivers a continuous current rating of 40 A rms and 50 A audio with a 50% duty cycle. Its precise Quick Lock locking system mates with all current speakON connectors, while the integrated weatherproof gasket provides IP54 protection when mated for dependable operation in harsh environments.

Durable PCB Mount Construction

Built with a black KTL-coated zinc die-cast housing, glass-reinforced polyamide insert, and 4 µm silver-plated spring copper contacts, the NLT4FD-V-BAG is designed for long service life. The rear-mount vertical PCB configuration supports more than 5,000 mating cycles, making it ideal for demanding professional installations.

Applications

•
  Professional touring sound systems

•
  High-power loudspeaker systems

•
  Live sound reinforcement

•
  Outdoor event audio systems

•
  Rental and staging equipment

•
  Power amplifier installations
