Overview

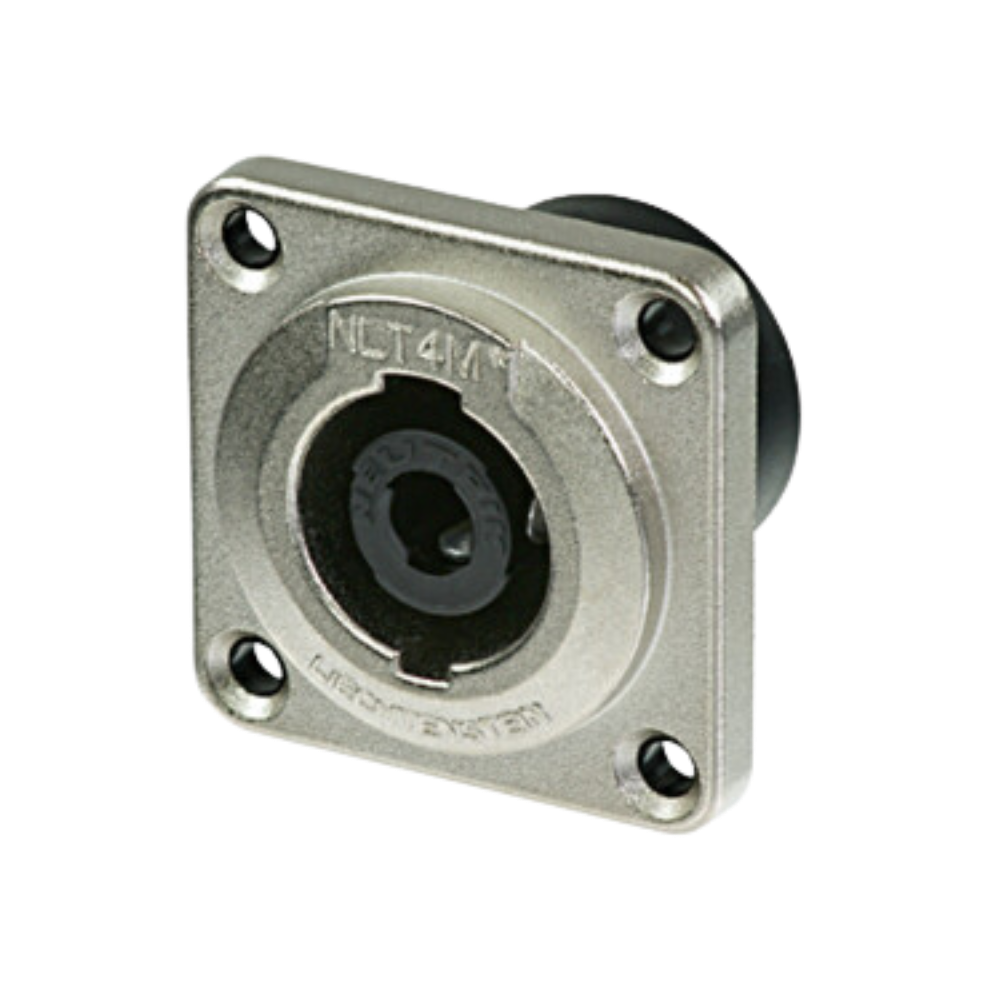

The Neutrik NLT4MD-V is a 4-pole male speakON STX Series chassis connector designed for vertical PCB mounting. Featuring an extremely rugged metal housing with a square G-size flange and self-tapping A-screw mounting holes, it is engineered for heavy-duty amplifier-to-loudspeaker applications in demanding touring and live sound environments.

Professional Audio Performance

The NLT4MD-V delivers continuous current ratings up to 40 A rms and 50 A audio with a 50% duty cycle. Its precise Quick Lock locking system mates with all current speakON products, while the integrated weatherproof gasket provides IP54 protection when mated for reliable outdoor and touring performance.

Durable Professional Construction

Built with a zinc die-cast nickel-plated housing, glass-reinforced polyamide insert, and 4 µm silver-plated spring copper contacts, the NLT4MD-V is designed to withstand harsh professional environments. The rear-mount vertical PCB configuration supports over 5,000 mating cycles for dependable long-term operation.

Applications

•
  Professional touring sound systems

•
  High-power loudspeaker systems

•
  Live sound reinforcement

•
  Outdoor event audio systems

•
  Rental and staging equipment

•
  Power amplifier installations
