Overview

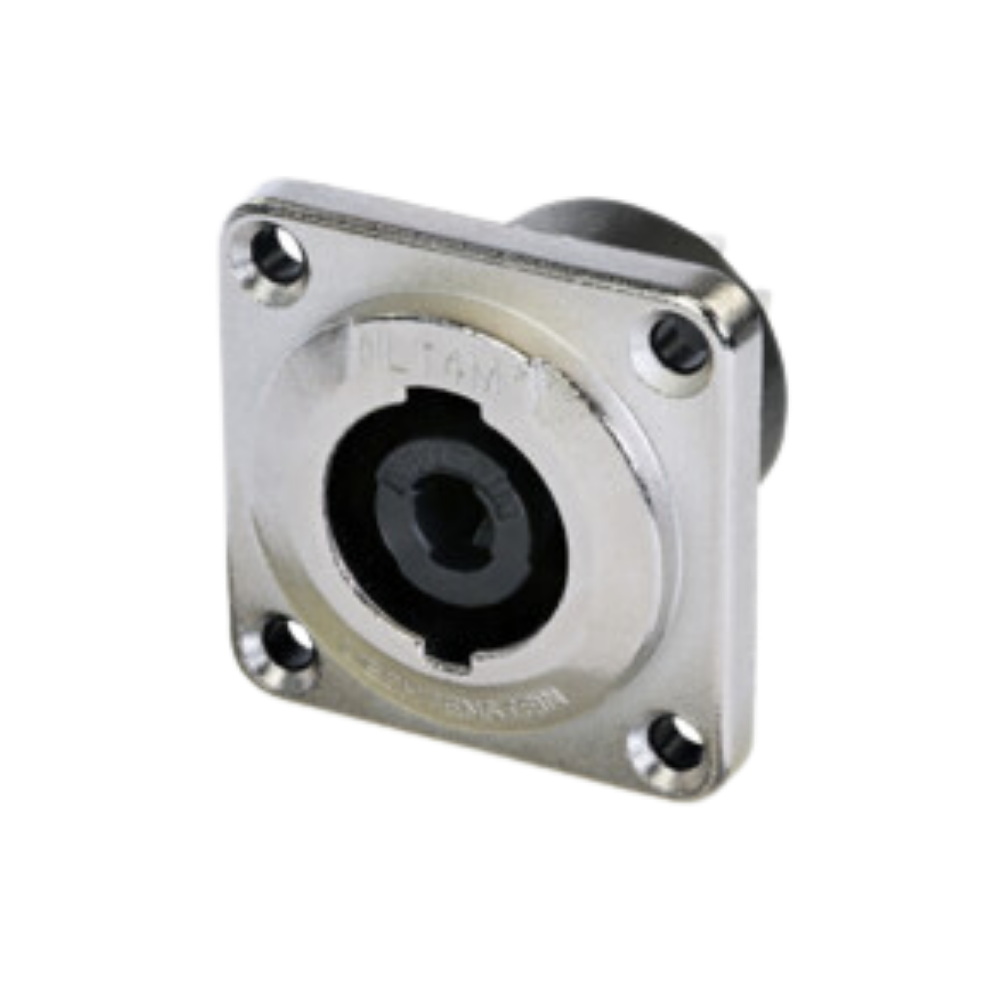

The Neutrik NLT4MPXX is a 4-pole male speakON chassis connector from the STXX Series, engineered for heavy-duty amplifier-to-loudspeaker applications. Featuring a rugged all-metal housing and 3/16 inch flat tab terminations, it provides dependable panel-mounted loudspeaker connectivity for demanding professional environments.

Professional Audio Performance

Designed for high-power loudspeaker systems, the NLT4MPXX supports a continuous current rating of 25 A rms per contact. Neutrik's precise Quick Lock system provides secure mating, while the built-in weatherproof gasket offers IP54 protection when mated for reliable performance in touring and live sound applications.

Durable Professional Construction

The STXX Series features an extremely robust zinc die-cast metal housing with a glass-reinforced V-0 insert for exceptional durability. The connector uses silver-plated 3/16 inch flat tab contacts, supports standard D-size panel cut-outs, and incorporates a stainless steel locking element for dependable long-term operation.

Applications

•
  Professional loudspeaker systems

•
  Live sound reinforcement

•
  Touring audio installations

•
  Concert and festival production

•
  Rental and staging systems

•
  High-power speaker cabinets and amplifiers
