Overview

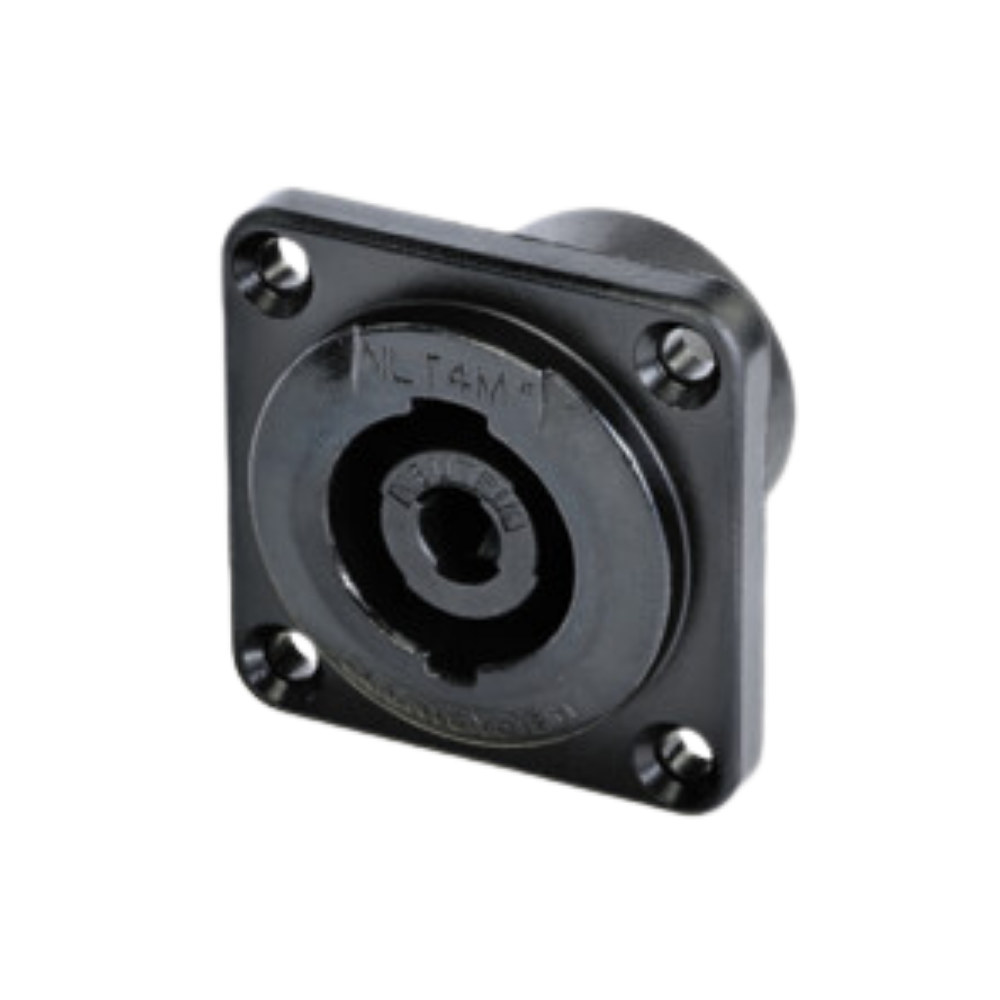

The Neutrik NLT4MPXX-BAG is a 4-pole male speakON chassis connector from the STXX Series, engineered for heavy-duty amplifier-to-loudspeaker applications. It features a rugged black metal housing, gold-plated 3/16 inch flat tab contacts, and Neutrik's Quick Lock system for secure, dependable loudspeaker connections.

Professional Audio Performance

Designed for high-power loudspeaker systems, the NLT4MPXX-BAG supports a continuous current rating of 25 A rms per contact. Gold-plated flat tab contacts ensure reliable conductivity, while the precise Quick Lock mechanism and integrated weatherproof gasket provide secure mating with IP54 protection when connected.

Durable Professional Construction

The STXX Series features an extremely robust zinc die-cast black metal housing with a glass-reinforced V-0 insert for outstanding durability in demanding touring environments. The connector supports standard D-size panel cut-outs and incorporates a stainless steel locking element for dependable long-term operation.

Applications

•
  Professional loudspeaker systems

•
  Live sound reinforcement

•
  Touring audio installations

•
  Concert and festival production

•
  Rental and staging systems

•
  High-power speaker cabinets and amplifiers
