Overview

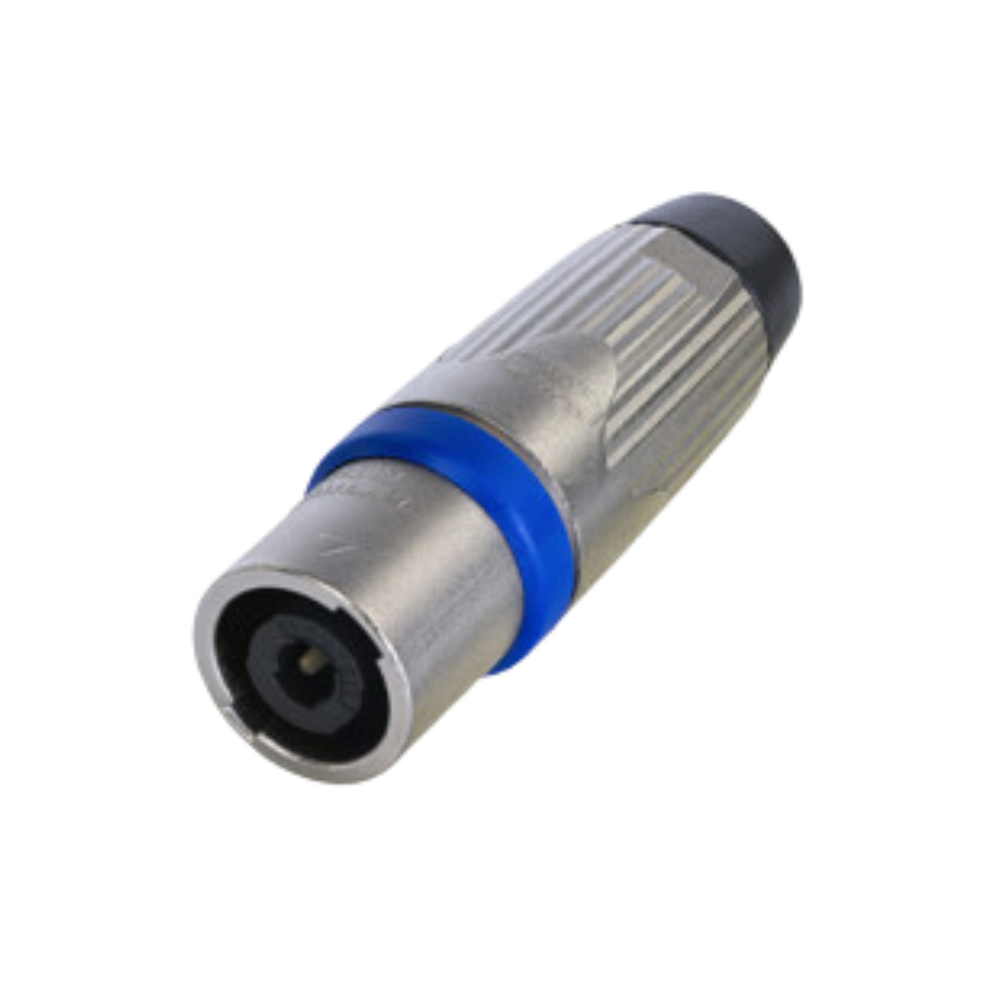

The Neutrik NLT4MXX is a 4-pole male speakON cable connector from the STXX Series, engineered for heavy-duty amplifier-to-loudspeaker applications. Featuring a rugged all-metal housing and Neutrik's Quick Lock system, it delivers secure and dependable loudspeaker connections for demanding professional environments.

Professional Audio Performance

Designed for high-power loudspeaker systems, the NLT4MXX supports a continuous current rating of 30 A rms. Its extra-large solder contacts accept conductors up to 6 mm² (AWG 10), while the precise Quick Lock mechanism provides reliable and secure speaker connections. The weatherproof gasket offers IP54 protection when mated.

Durable Professional Construction

The STXX Series features an extremely robust metal housing with a glass-reinforced V-0 material insert for outstanding durability in harsh touring environments. The integrated chuck-type strain relief provides secure cable retention for cable diameters from 9 mm to 16 mm, while IEC 61984 certification ensures compliance with IEC 62368-1 requirements.

Applications

•
  Professional touring sound systems

•
  Live sound reinforcement

•
  High-power loudspeaker cable assemblies

•
  Concert and festival production

•
  Rental and staging applications

•
  Professional PA systems
