Overview

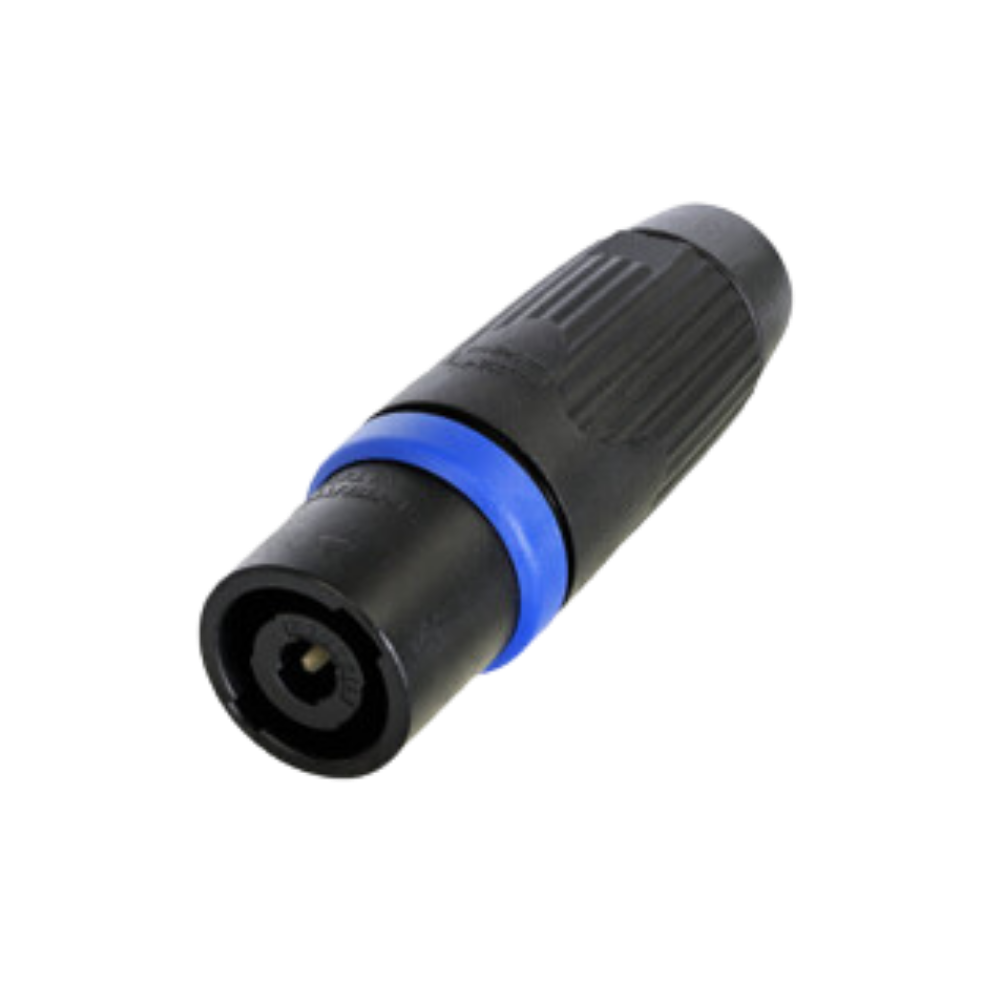

The Neutrik NLT4MXX-BAG is a 4-pole male speakON cable connector from the STXX Series, engineered for heavy-duty amplifier-to-loudspeaker applications. It features a rugged black metal housing, gold-plated contacts, and Neutrik's Quick Lock system for secure and dependable loudspeaker connections.

Professional Audio Performance

Designed for high-power loudspeaker systems, the NLT4MXX-BAG supports a continuous current rating of 30 A rms. Its extra-large solder contacts accept conductors up to 6 mm² (AWG 10), while the precise Quick Lock mechanism provides secure locking. Gold-plated contacts deliver reliable conductivity, and the weatherproof gasket provides IP54 protection when mated.

Durable Professional Construction

The STXX Series features an extremely robust black metal housing with a glass-reinforced V-0 material insert for outstanding durability in demanding touring environments. The integrated chuck-type strain relief securely accommodates cable diameters from 9 mm to 16 mm, while IEC 61984 certification ensures compliance with IEC 62368-1 requirements.

Applications

•
  Professional touring sound systems

•
  Live sound reinforcement

•
  High-power loudspeaker cable assemblies

•
  Concert and festival production

•
  Rental and staging applications

•
  Professional PA systems
