Overview

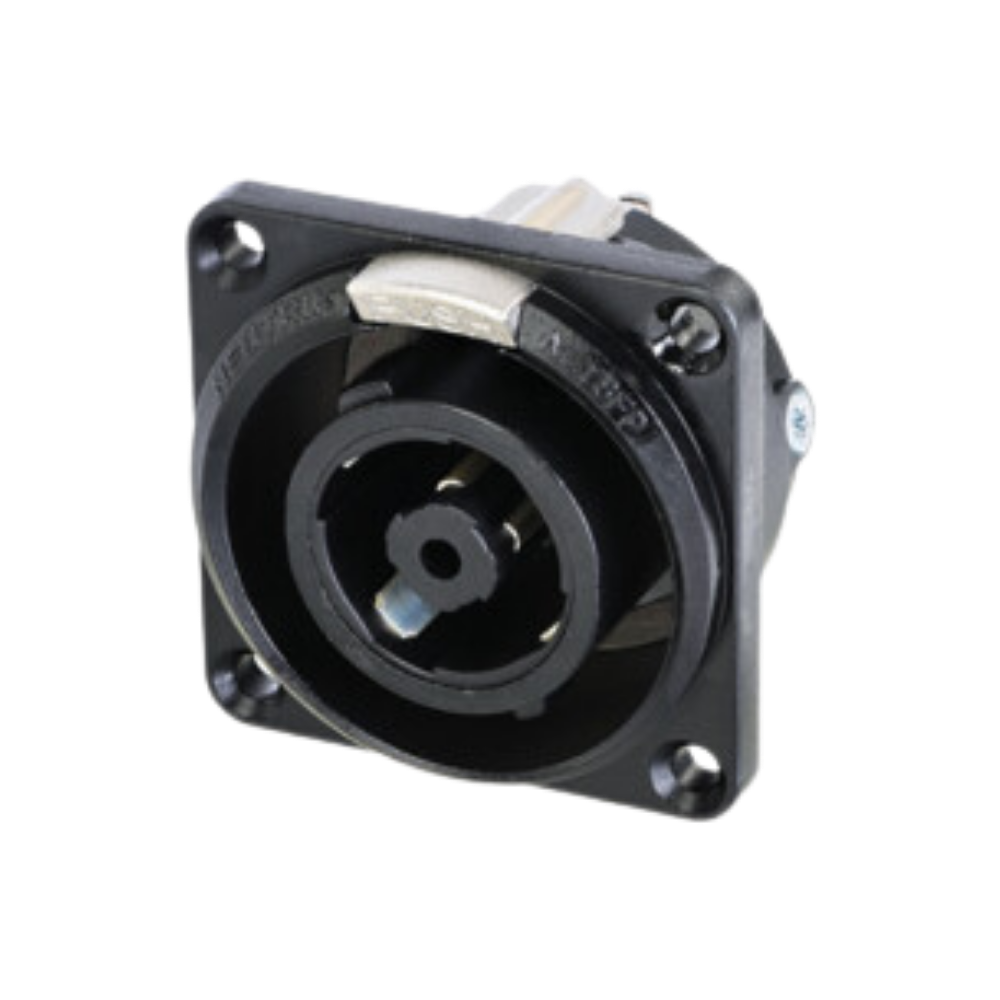

The Neutrik NLT8FPXX-BAG is an 8-pole female speakON chassis connector from the STXX Series, engineered for demanding amplifier-to-loudspeaker applications. It features a rugged black metal square G-size housing with solder contacts, providing dependable panel-mounted loudspeaker connectivity for professional touring and live sound systems.

Professional Audio Performance

Designed for high-power loudspeaker applications, the NLT8FPXX-BAG supports a continuous current rating of 30 A rms per contact. Neutrik's precise Quick Lock system ensures secure locking, while full compatibility with the complete 8-pole speakON product series provides flexible system integration.

Durable Professional Construction

The STXX Series features an extremely robust black chrome-plated zinc die-cast housing with a glass-reinforced V-0 insert for exceptional durability in demanding environments. Silver-plated copper alloy solder contacts provide reliable electrical performance, while the square G-size flange with four through holes enables secure front-panel mounting.

Applications

•
  Professional loudspeaker systems

•
  Live sound reinforcement

•
  Touring audio installations

•
  Concert and festival production

•
  Rental and staging systems

•
  High-power speaker cabinets and amplifiers
