Overview

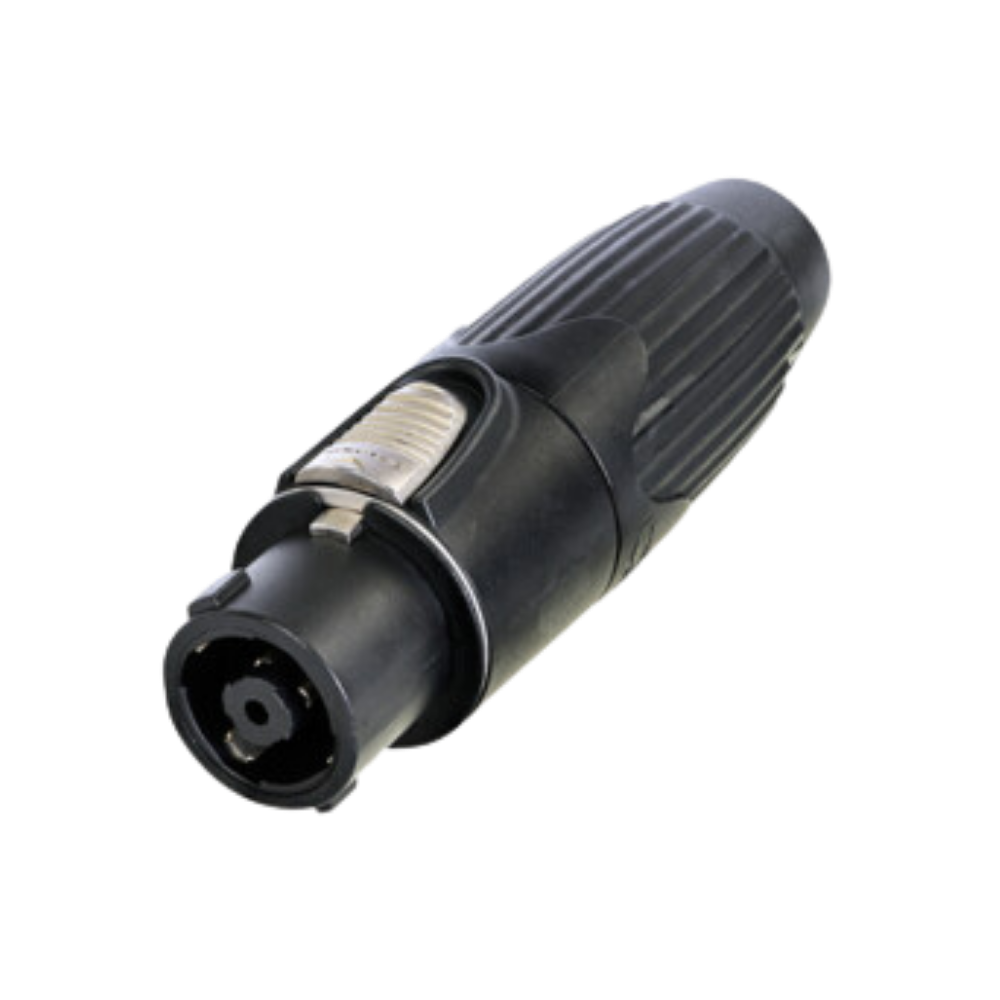

The Neutrik NLT8FXX-BAG is an 8-pole female speakON cable connector from the STXX Series, engineered for heavy-duty amplifier-to-loudspeaker applications. It features a rugged black metal housing, silver-plated contacts, and Neutrik's precise Quick Lock system for secure, dependable loudspeaker connections.

Professional Audio Performance

Designed for demanding loudspeaker systems, the NLT8FXX-BAG supports a continuous current rating of 30 A rms per contact. Its solder contacts accept conductor sizes from 1.5 mm² to 6 mm² (up to AWG 10), while the precise Quick Lock mechanism ensures secure and reliable mating with the complete 8-pole speakON product series.

Durable Professional Construction

The STXX Series features an extremely robust zinc die-cast metal housing with a glass-reinforced V-0 insert for long-term durability in harsh touring environments. An integrated chuck-type strain relief securely accommodates cable diameters from 8 mm to 20 mm, and the connector is IEC 61984 certified for use in equipment designed to IEC 62368-1.

Applications

•
  Professional touring sound systems

•
  Live sound reinforcement

•
  High-power loudspeaker cable assemblies

•
  Concert and festival production

•
  Rental and staging applications

•
  Professional PA systems
