Overview

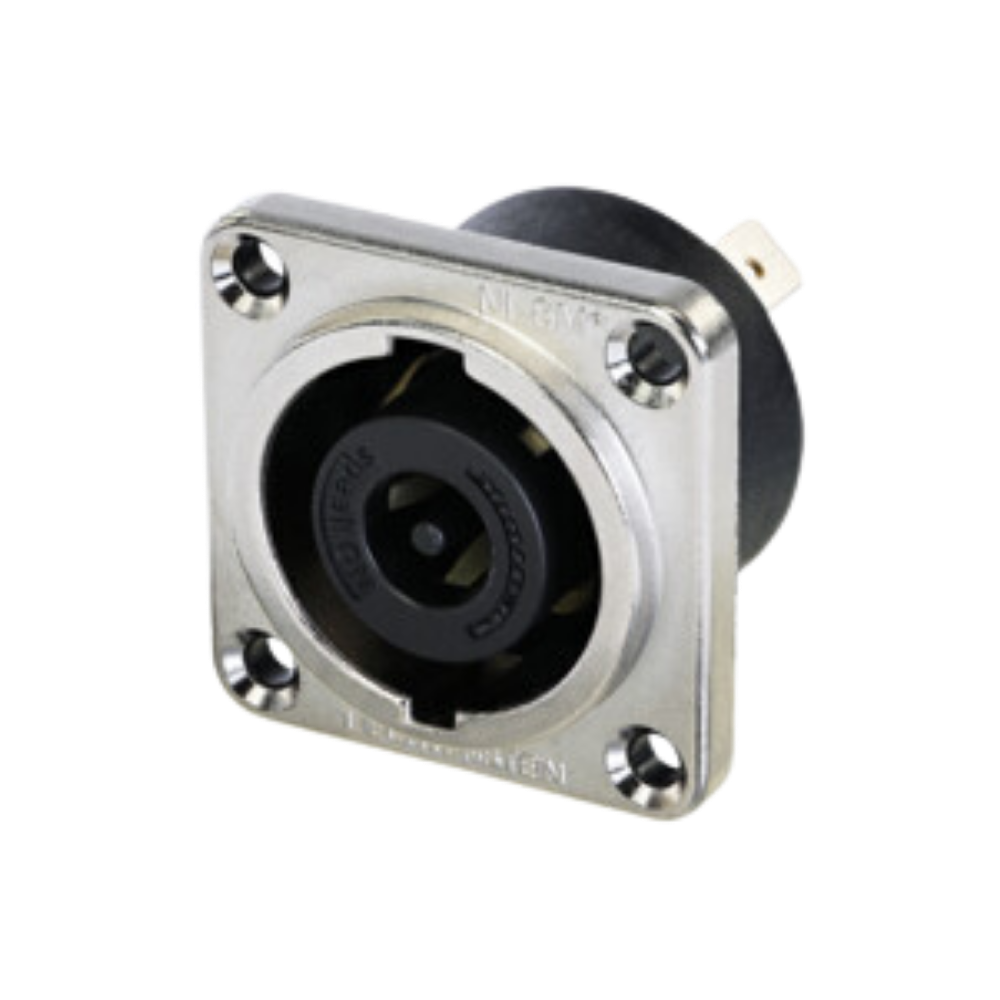

The Neutrik NLT8MPXX is an 8-pole male speakON chassis connector from the STXX Series, engineered for demanding amplifier-to-loudspeaker applications. Featuring a rugged all-metal square G-size housing and 1/4 inch flat tab terminations, it provides dependable panel-mounted loudspeaker connectivity for professional touring and live sound systems.

Professional Audio Performance

Designed for high-power loudspeaker applications, the NLT8MPXX supports a continuous current rating of 30 A rms per contact. Neutrik's precise Quick Lock system ensures secure locking, while full compatibility with the complete 8-pole speakON product series provides flexible system integration.

Durable Professional Construction

The STXX Series features an extremely robust zinc die-cast metal housing with a glass-reinforced V-0 insert for exceptional durability in demanding environments. Silver-plated copper alloy contacts provide reliable electrical performance, while the square G-size flange with four through holes supports both front and rear panel mounting.

Applications

•
  Professional loudspeaker systems

•
  Live sound reinforcement

•
  Touring audio installations

•
  Concert and festival production

•
  Rental and staging systems

•
  High-power speaker cabinets and amplifiers
