Overview

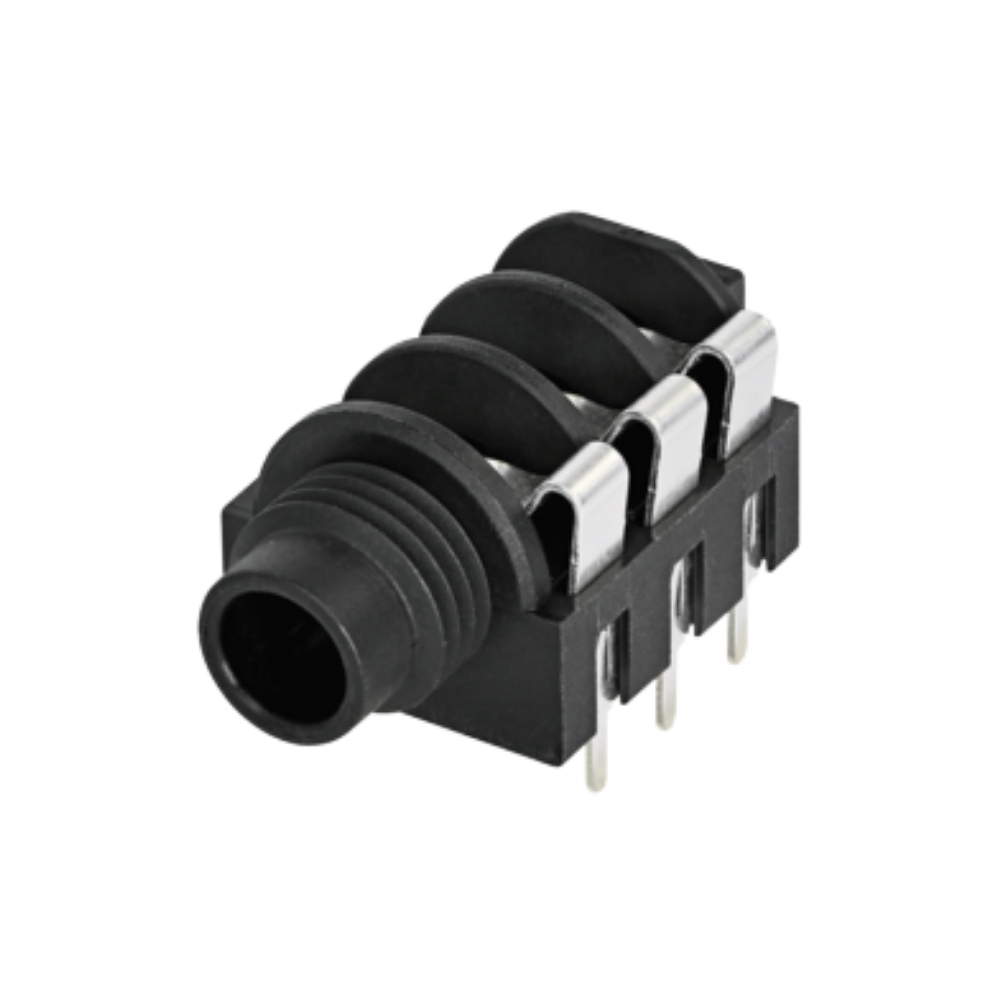

The Neutrik NMJ6HHD2 is a 1/4 inch TRS stereo switched audio jack featuring a half threaded nose, straight PCB pins, and three switching contacts. Designed for horizontal PCB mounting, it provides reliable stereo audio connectivity and mates with all stereo A-gauge plugs according to the EIA RS-453 standard.

Professional Switching Audio Performance

The NMJ6HHD2 is engineered for professional audio applications requiring stereo signal switching and routing functions. Its three switching contacts support normalling and signal management requirements, while the wide-body design and durable contacts ensure dependable performance through repeated mating cycles.

Durable PCB Mount Construction

Built with silver-plated bronze contacts and a robust polyamide housing, the NMJ6HHD2 is designed for long-term reliability. The connector features straight PCB pins, rear mounting installation, and a retention spring for secure plug engagement through more than 10,000 mating cycles. Please note that the fixing nut and washer are ordered separately for the half threaded version.

Applications

•
  Audio mixers and consoles

•
  Studio patching and routing systems

•
  Professional audio equipment

•
  Signal distribution equipment

•
  AV integration systems

•
  Industrial audio applications
