Overview

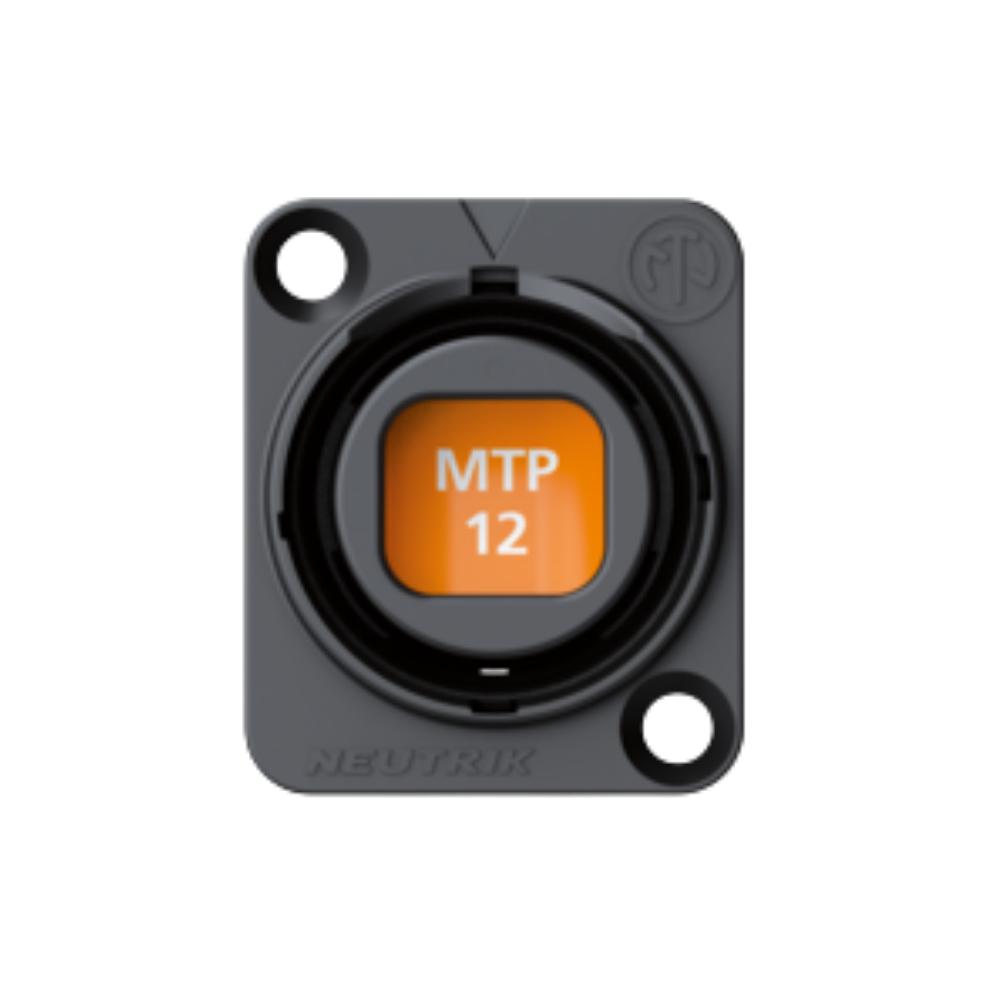

The Neutrik NO12FDW-A is an opticalCON MTP female chassis connector designed for high-density fiber optic installations in professional broadcast, AV, and data communication systems. Featuring a rugged black chromium-plated D-size housing and an MTP feedthrough interface, it provides a reliable panel-mount solution for high-performance optical networks.

Professional Fiber Performance

The NO12FDW-A utilizes an MTP feedthrough design that allows direct rear connection to a standard MTP connector for quick installation and maintenance. The automatic spherical sealing shutter protects the optical interface from dust and contamination, while the secure Push-Pull locking mechanism ensures reliable mating. When used with the appropriate sealing accessories, the connector provides IP65 protection in the mated condition.

Durable Professional Construction

Built for demanding professional environments, the connector features a rugged zinc die-cast housing with black chromium plating, precision alignment components, and a long-life Push-Pull locking system rated for thousands of mating cycles. The standard D-size front-mount design enables seamless integration into patch panels, stage boxes, and broadcast equipment.

Applications

•
  Broadcast fiber optic systems

•
  High-density AV installations

•
  Live production equipment

•
  Fiber optic patch panels

•
  Mobile production units

•
  Data communication infrastructure
