Overview

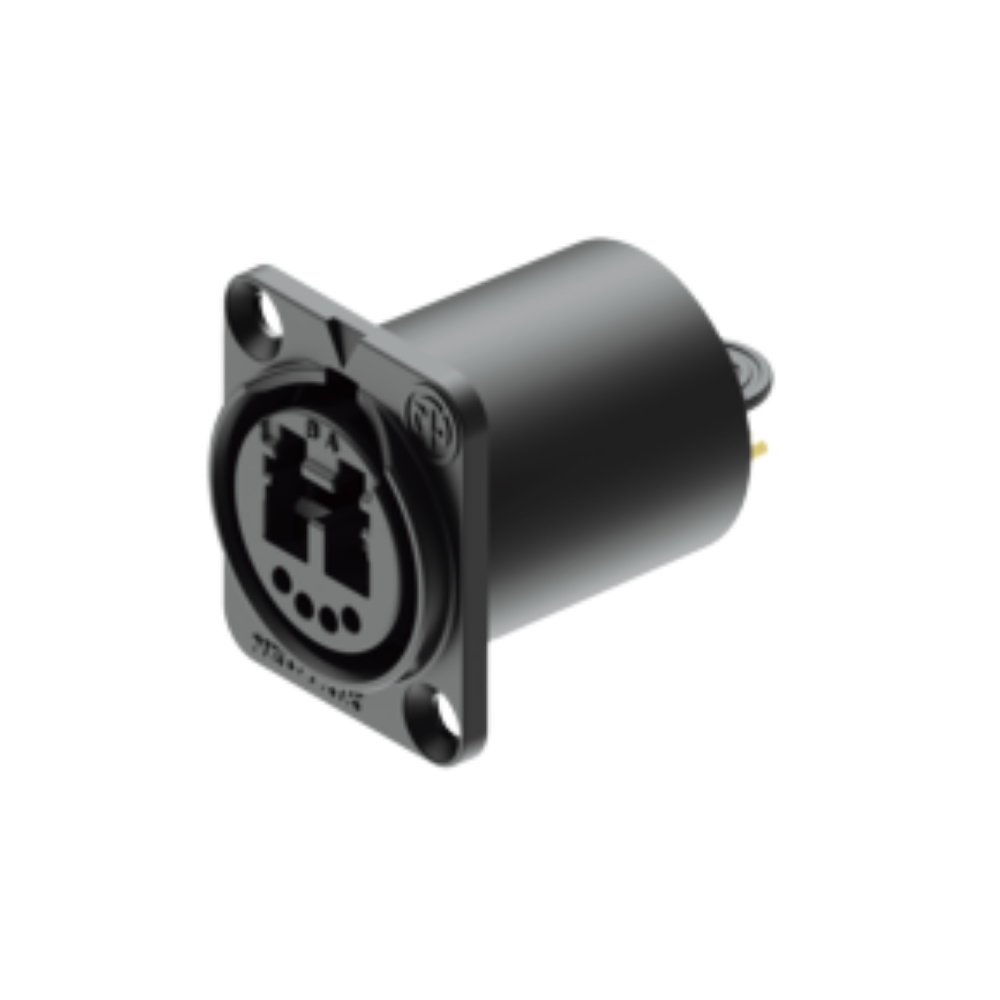

The Neutrik NO2-4FDW-A is an opticalCON DUO Advanced female chassis connector designed for professional fiber optic installations. It features black chromium plating, four solder contacts, and an LC-Duplex feedthrough socket in a standard D-size housing, providing a rugged and cost-effective solution for broadcast, AV, and fixed installations.

Professional Fiber Performance

Designed as a feedthrough connector, the NO2-4FDW-A allows a standard LC-Duplex connector to be connected directly at the rear for simplified installation. The front accepts either a rugged opticalCON DUO connector or a standard LC connector, while the automatic sealing shutter with a silicone gasket protects the optical interface from dust and contamination. When used with the SCDP-* sealing gasket, the connector provides IP65 ingress protection in the mated condition.

Durable Professional Construction

The connector features a rugged zinc die-cast housing with black chromium plating, ceramic split sleeves for precise optical alignment, and a secure Push-Pull locking mechanism rated for over 5,000 mating cycles. Its front-mount D-size design makes it ideal for professional broadcast equipment, patch panels, and fixed fiber installations.

Applications

•
  Broadcast fiber optic systems

•
  AV equipment integration

•
  Fiber optic patch panels

•
  Fixed installations

•
  Live production systems

•
  Professional communication networks
