Overview

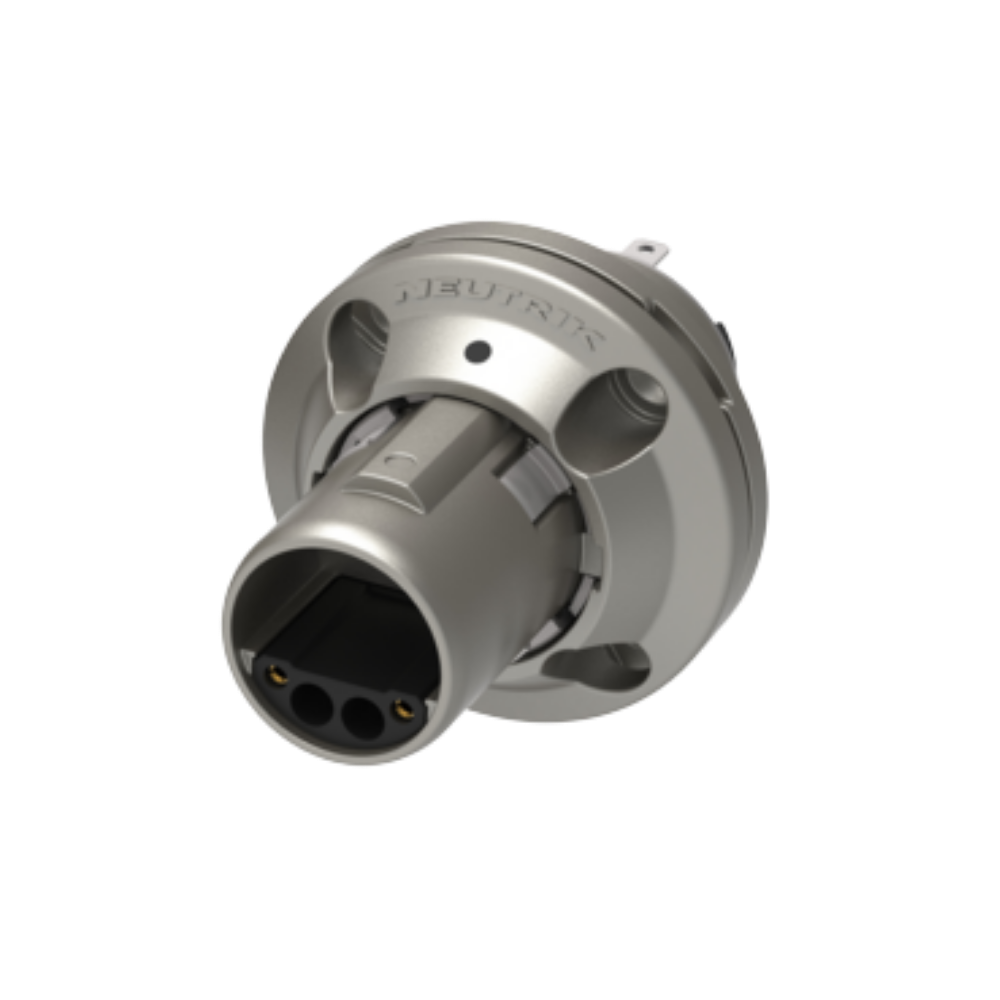

The Neutrik NO2MW-XP is a male opticalCON DRAGONFLY chassis connector designed for SMPTE hybrid camera systems. It features ruggedized anticorrosive plating, four crimp contacts, one XB2 feedthrough socket, and one shell ground contact for the SMPTE cable shield. The feedthrough design simplifies installation by allowing an XB2 patch cable to connect directly at the rear of the chassis.

Professional Data and Power Performance

Designed for professional broadcast and AV environments, the NO2MW-XP supports simultaneous optical signal and power transmission through a single hybrid connection. The improved guiding nose ensures safe and correct mating, while the connector is suitable for both indoor studio installations and outdoor OB truck camera links in accordance with SMPTE standards. When used with the SCXP-M sealing kit, the connector provides IP68 protection in the mated condition.

Durable Professional Construction

The NO2MW-XP features a ruggedized anticorrosive finish and is engineered for long-term reliability in demanding broadcast environments. Its chassis cut-out matches common standard broadcast cut-outs, making integration into existing systems straightforward. The connector also supports an optional lockable sealing cover (SCNO2MW-XP) for additional dust and dirt protection.

Applications

•
  Broadcast camera systems

•
  Studio camera infrastructure

•
  Outside broadcast (OB) trucks

•
  SMPTE hybrid camera installations

•
  Professional AV systems

•
  Broadcast equipment integration
