Overview

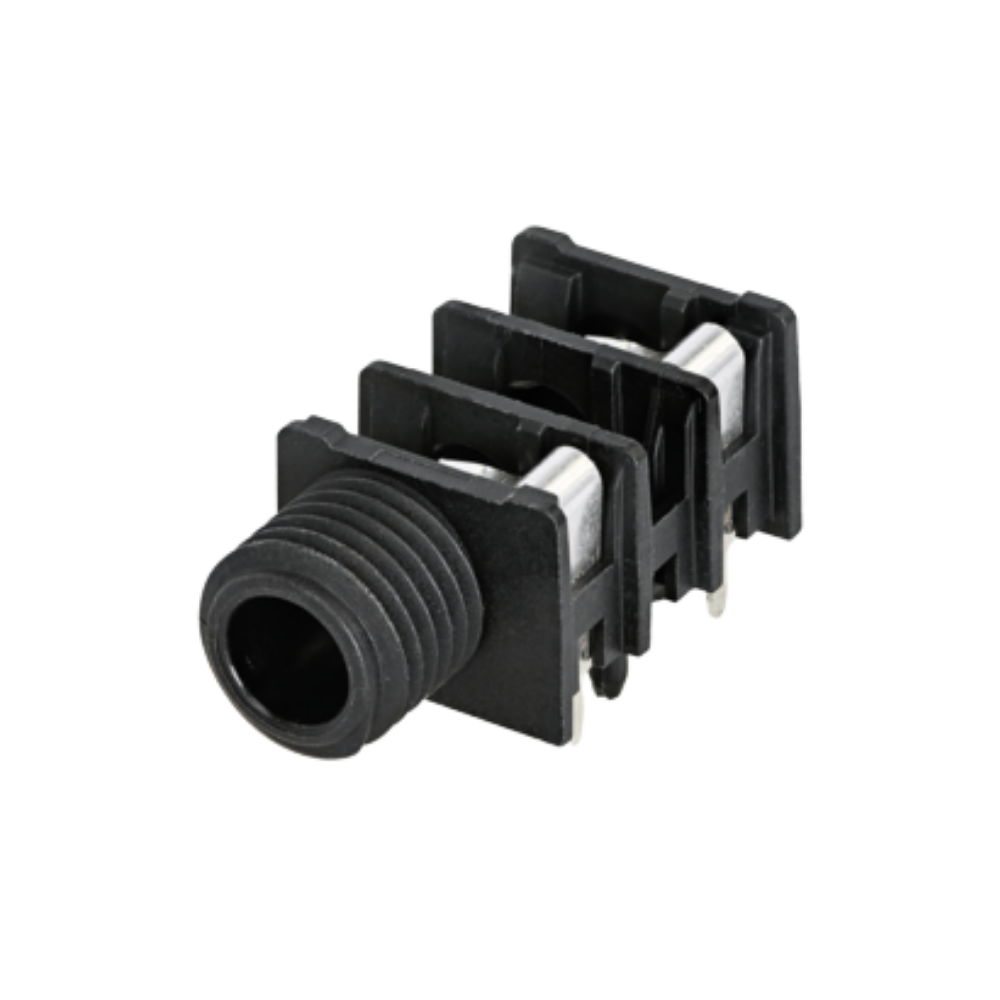

The Neutrik NRJ4HF-1 is a 2-pole switching 1/4 inch professional audio jack designed for horizontal PCB panel mounting. It features a fully threaded nose, silver-plated bronze contacts, sleeve contact front-panel connection, and a compact polyamide housing for professional audio equipment and panel applications.

Professional Switching Audio Performance

Designed for mono TS audio connections, the NRJ4HF-1 includes two switching contacts for signal routing and normalling applications. Its retention spring provides secure grip on inserted plugs to help prevent unintended disconnection.

High-Density PCB Mount Construction

The connector supports high board packing density, with horizontal PCB mounting on 15.88mm / 0.625 inch minimum centres in rows or arrays. Its rear-mount configuration and fully threaded nose support efficient integration into compact professional audio equipment.

Applications

•
  Broadcast audio equipment panels

•
  Studio signal routing and patching systems

•
  Horizontal PCB-mounted audio connections

•
  Mono TS switching and normalling circuits

•
  Compact professional audio devices

•
  High-density equipment panel assemblies
