Overview

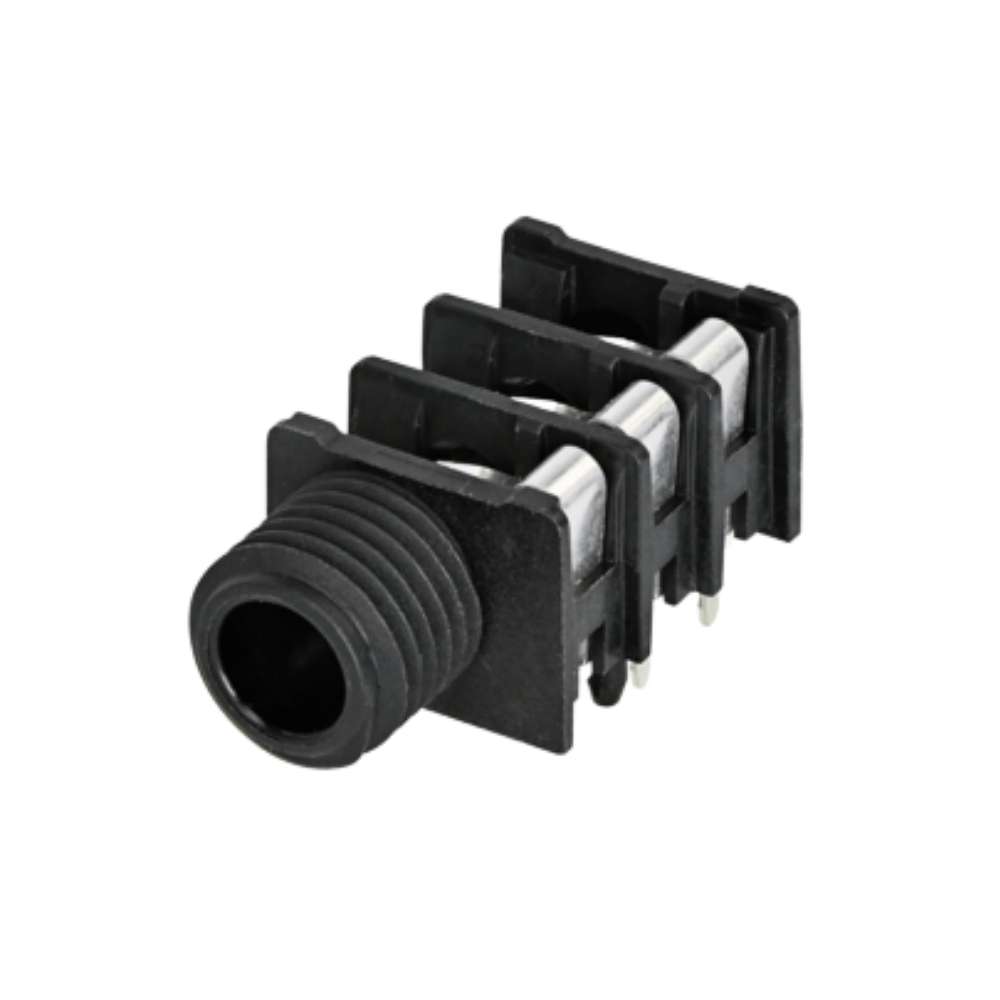

The Neutrik NRJ6HF-1 is a 1/4 inch TRS stereo switched audio jack designed for horizontal PCB panel mounting in professional audio equipment. It features a fully threaded nose, sleeve contact/front panel connection, and a compact design suitable for high-density PCB layouts.

Professional Switching Audio Performance

Designed for professional audio switching applications, the NRJ6HF-1 includes three switching contacts for flexible signal routing and normalling functions. The retention spring provides secure plug engagement, helping maintain reliable signal connections in demanding professional audio environments.

High-Density PCB Mount Construction

The horizontal PCB mount design supports installation on 15.88 mm minimum centers, making it ideal for compact equipment layouts. Constructed with a durable polyamide housing and silver-plated bronze contacts, the jack delivers dependable electrical and mechanical performance for long-term professional use.

Applications

•
  Professional audio equipment

•
  Studio patching and routing systems

•
  Audio mixers and signal processors

•
  AV integration equipment

•
  High-density PCB audio assemblies

•
  Professional communication and audio systems
