Overview

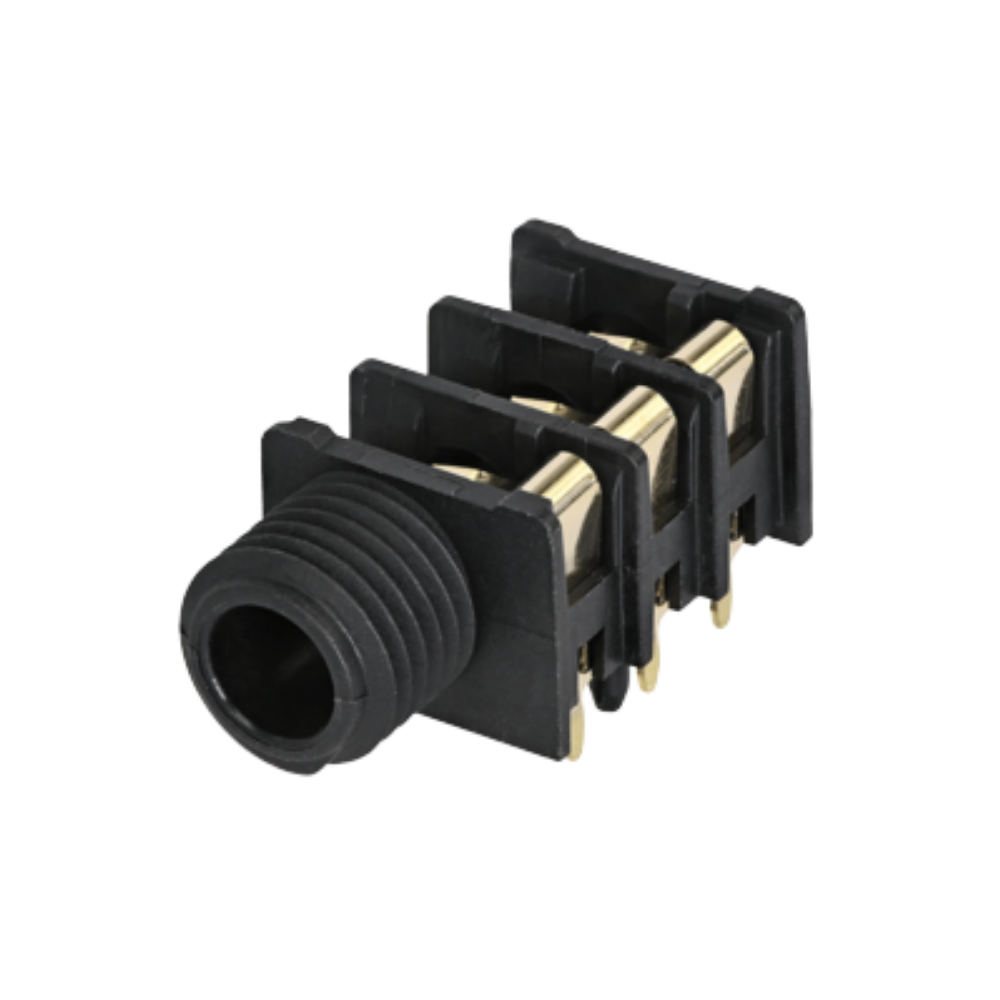

The Neutrik NRJ6HF-1-AU is a 1/4 inch TRS stereo switched audio jack designed for horizontal PCB panel mounting in professional audio equipment. It features gold-plated contacts, a fully threaded nose, sleeve contact/front panel connection, and a compact design suitable for high-density PCB layouts.

Professional Switching Audio Performance

Designed for professional audio switching applications, the NRJ6HF-1-AU includes three switching contacts for flexible signal routing. Its retention spring ensures optimum grip on inserted plugs, helping avoid lost connections in studio, patching, and professional audio systems.

High-Density PCB Mount Construction

The horizontal PCB mount design supports high board packing density with installation on 15.88 mm minimum centers in rows or arrays. The jack uses bronze contacts with gold plating and a durable polyamide shell for reliable long-term performance in compact audio equipment designs.

Applications

•
  Professional audio equipment

•
  Studio patching and routing systems

•
  Audio mixers and signal processors

•
  AV integration equipment

•
  High-density PCB audio assemblies

•
  Professional communication and audio systems
