Overview

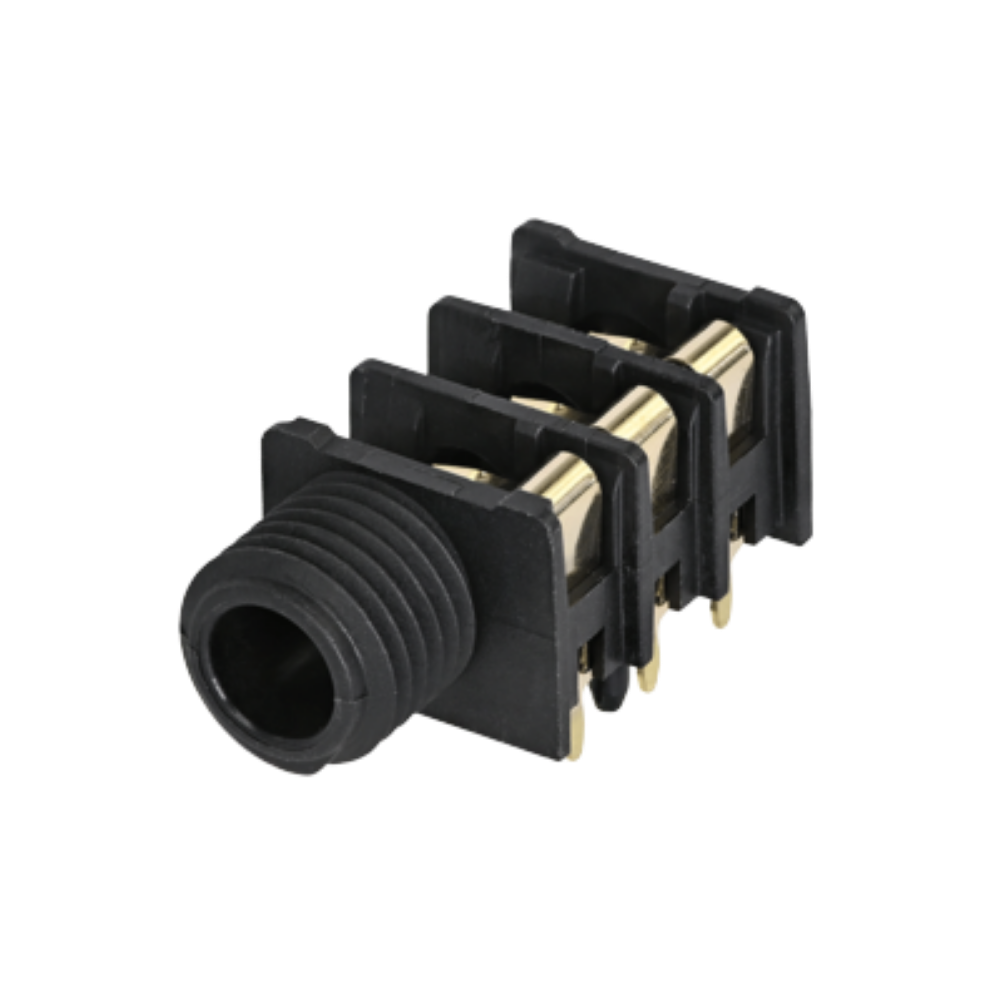

The Neutrik NRJ6HF-AU is a 1/4 inch TRS stereo switched audio jack designed for horizontal PCB mounting in professional audio equipment. It features a fully threaded nose, gold-plated contacts, and a compact design that supports high-density panel layouts with minimum center spacing of 15.88 mm.

Professional Switching Audio Performance

Designed for professional signal routing and switching applications, the NRJ6HF-AU incorporates three switching contacts and a retention spring that provides secure plug engagement. Its stereo TRS configuration makes it suitable for audio systems requiring dependable signal integrity and switching functionality.

High-Density PCB Mount Construction

The jack features a durable polyamide housing and bronze contacts with gold plating for reliable conductivity and long service life. The horizontal PCB mount design supports compact equipment layouts while maintaining performance through more than 10,000 mating cycles.

Applications

•
  Professional audio equipment

•
  Audio mixers and signal processors

•
  Studio patching systems

•
  Audio routing and switching applications

•
  AV integration systems

•
  High-density PCB audio assemblies
