Overview

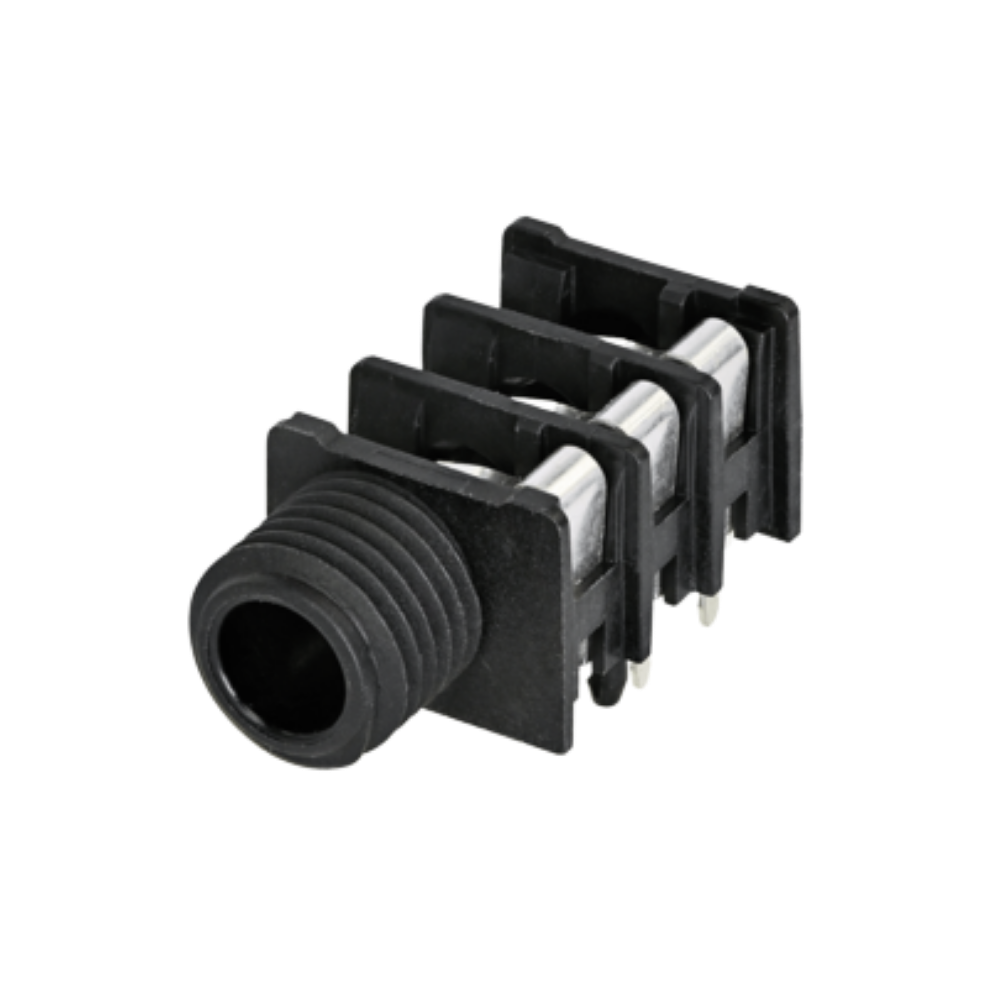

The Neutrik NRJ6HH is a 1/4 inch TRS stereo switched audio jack designed for horizontal PCB mounting in professional audio equipment. Its compact construction supports high-density panel layouts while providing dependable switching functionality for audio routing and signal management applications.

Professional Switching Audio Performance

The NRJ6HH features a TRS stereo configuration with three switching contacts, making it suitable for professional audio systems that require automatic signal routing when plugs are inserted or removed. A retention spring provides secure plug engagement for reliable operation in demanding environments.

High-Density PCB Mount Construction

Constructed with a durable polyamide housing and silver-plated bronze contacts, the NRJ6HH delivers consistent electrical performance and long-term reliability. The horizontal PCB mount design allows installation on 15.88 mm center spacing, making it ideal for compact professional equipment designs.

Applications

•
  Professional audio mixers

•
  Signal routing and switching systems

•
  Studio patch bays and interfaces

•
  Audio processors and equipment

•
  AV integration systems

•
  High-density PCB audio assemblies
