Overview

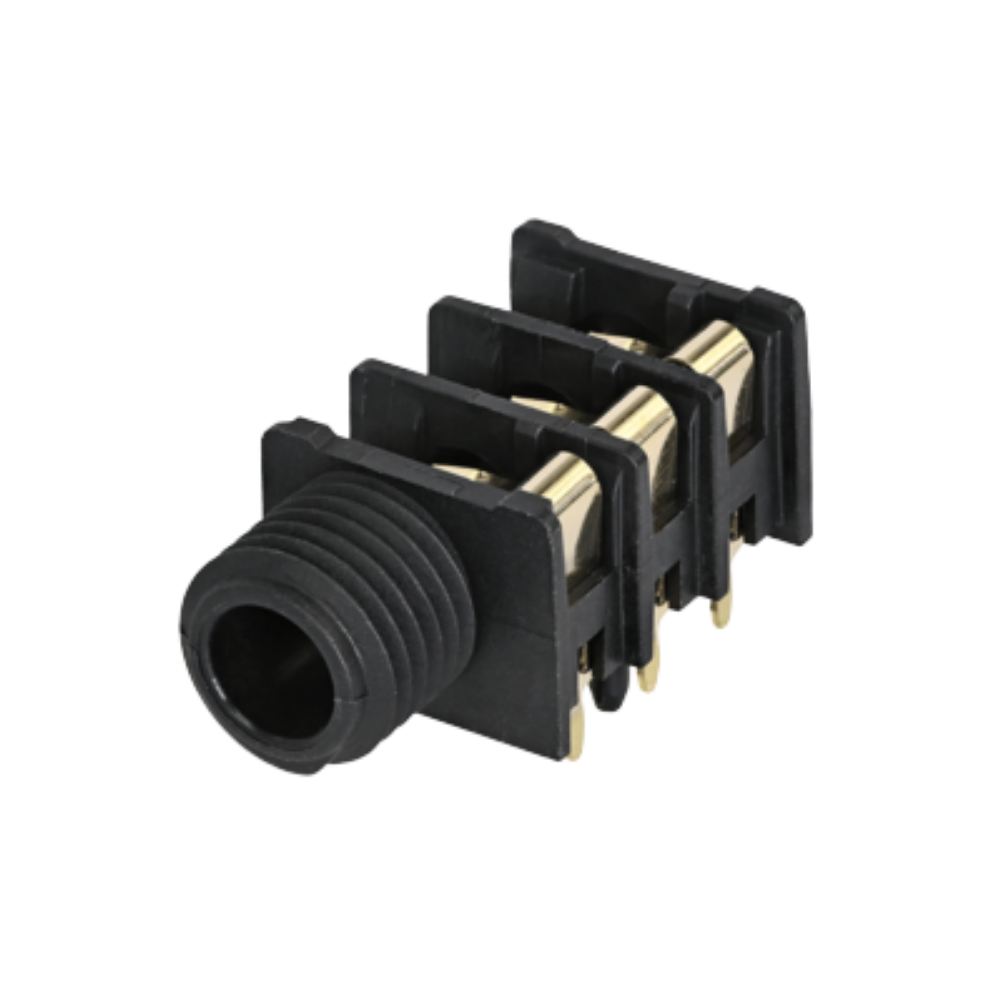

The Neutrik NRJ6HH-AU is a 1/4 inch TRS stereo switched audio jack designed for horizontal PCB panel mounting in professional audio equipment. It features gold-plated contacts, a half threaded nose, and a compact design suitable for high-density PCB layouts.

Professional Switching Audio Performance

Designed for professional audio switching applications, the NRJ6HH-AU includes three switching contacts for signal routing and normalling functions. A retention spring ensures optimum grip on inserted plugs, helping maintain reliable audio connections in demanding professional environments.

High-Density PCB Mount Construction

The horizontal PCB mount design supports high board packing density with installation on 15.88 mm minimum centers in rows or arrays. Gold-plated bronze contacts and a durable polyamide housing provide dependable electrical and mechanical performance for long-term professional use.

Applications

•
  Professional audio equipment

•
  Studio patching and routing systems

•
  Audio mixers and signal processors

•
  AV integration equipment

•
  High-density PCB audio assemblies

•
  Professional communication and audio systems
