Overview

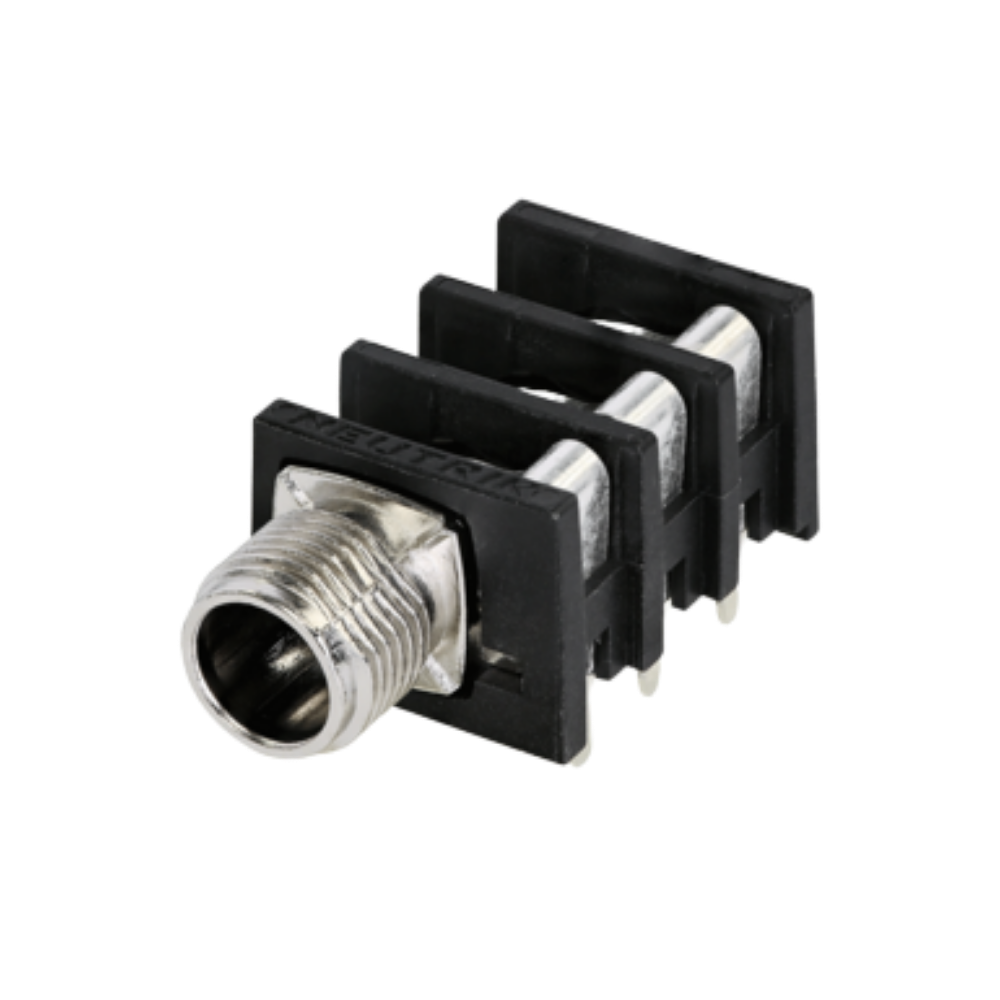

The Neutrik NRJ6HM-1 is a 1/4 inch TRS stereo switched audio jack designed for horizontal PCB panel mounting in professional audio equipment. It features a metal nose with efficient chassis ground connection and T, R, S normalling contacts for compact, reliable audio signal routing.

Professional Switching Audio Performance

Designed for professional audio switching applications, the NRJ6HM-1 includes three switching contacts for tip, ring, and sleeve normalling. Its efficient chassis grounding system helps meet EMC protection requirements, while the retention spring provides secure grip on inserted plugs to reduce connection loss.

High-Density PCB Mount Construction

The horizontal PCB mount design supports high board packing density with mounting on 15.88 mm minimum centers in rows or arrays. The jack uses silver-plated bronze contacts, rear mounting, and a durable polyamide shell for reliable performance in professional equipment designs.

Applications

•
  Professional audio equipment

•
  Studio patching and routing systems

•
  Audio mixers and signal processors

•
  AV integration equipment

•
  High-density PCB audio assemblies

•
  Professional communication and audio systems
