Overview

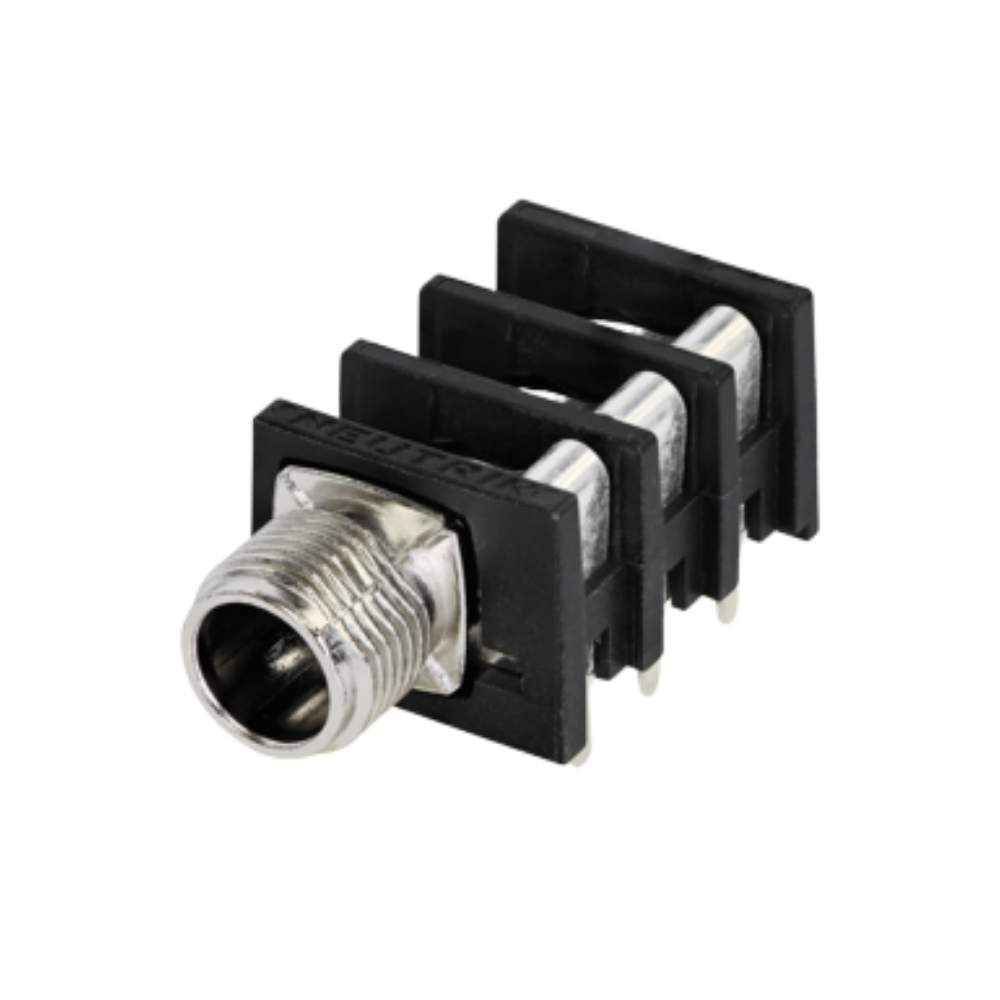

The Neutrik NRJ6HM-1-AU is a 1/4 inch TRS stereo switched audio jack designed for horizontal PCB panel mounting in professional audio equipment. It features a metal nose, gold-plated contacts, efficient chassis ground connection, and T, R, S normalling contacts for dependable audio signal routing.

Professional Switching Audio Performance

Designed for professional audio switching applications, the NRJ6HM-1-AU includes three switching contacts for tip, ring, and sleeve normalling. Its efficient chassis grounding system supports EMC protection requirements, while the retention spring provides secure grip on inserted plugs to reduce connection loss.

High-Density PCB Mount Construction

The horizontal PCB mount design supports high board packing density with installation on 15.88 mm minimum centers in rows or arrays. The jack uses gold-plated contacts and a metal nose construction for reliable performance in compact professional audio equipment.

Applications

•
  Professional audio equipment

•
  Studio patching and routing systems

•
  Audio mixers and signal processors

•
  AV integration equipment

•
  High-density PCB audio assemblies

•
  Professional communication and audio systems
