Overview

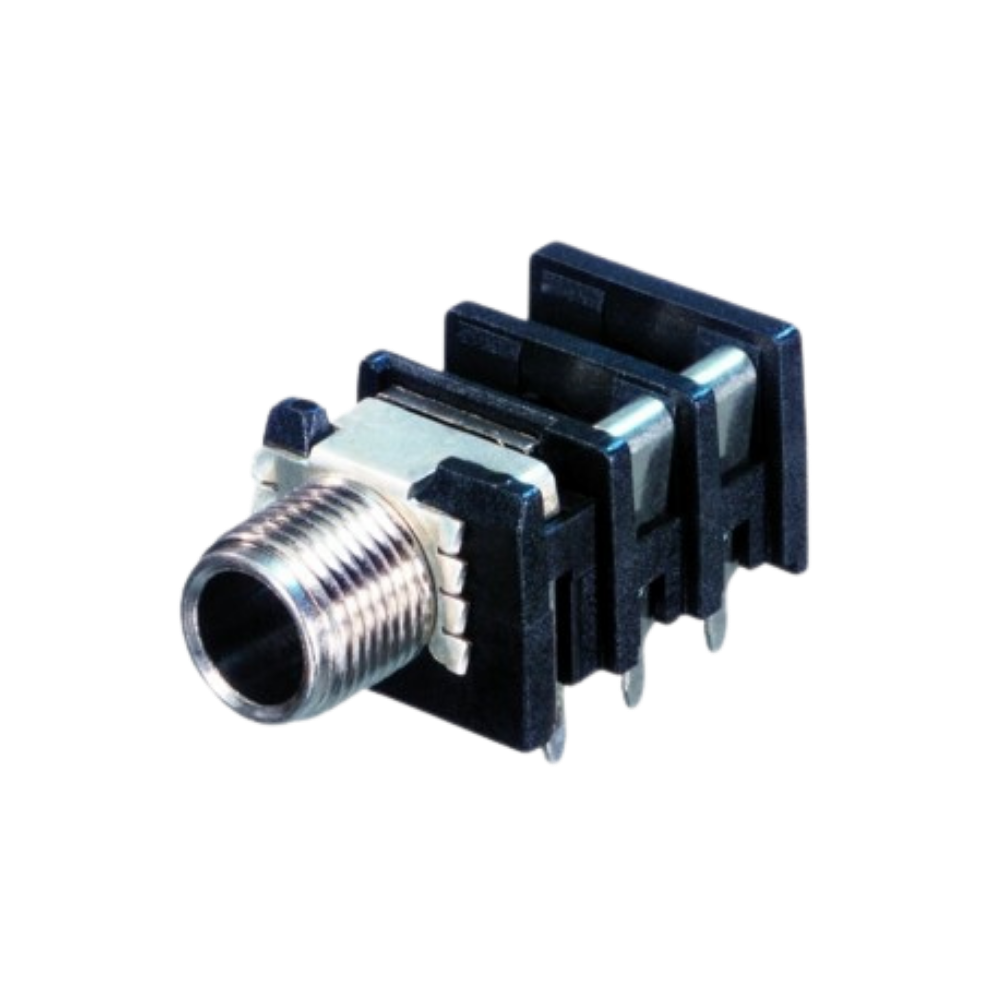

The Neutrik NRJ6HM-1-PRE is a 1/4 inch TRS stereo switched audio jack designed for horizontal PCB panel mounting in professional audio equipment. It features a metal nose, efficient chassis ground connection, and T and R normalling contacts for professional signal routing applications.

Professional Switching Audio Performance

The NRJ6HM-1-PRE is designed for stereo audio systems requiring tip and ring switching functionality. Its T and R normalling contacts support flexible signal routing, while the efficient chassis grounding system helps meet EMC protection requirements. A retention spring ensures secure plug engagement and dependable operation.

High-Density PCB Mount Construction

Built for compact equipment designs, the horizontal PCB mount configuration supports high board packing density with installation on 15.88 mm minimum centers. The jack features silver-plated bronze contacts, a durable polyamide housing, and a metal threaded nose for long-term professional use.

Applications

•
  Studio patching systems

•
  Professional audio routing equipment

•
  Audio mixers and processors

•
  AV integration systems

•
  Professional communication systems

•
  High-density PCB audio equipment
