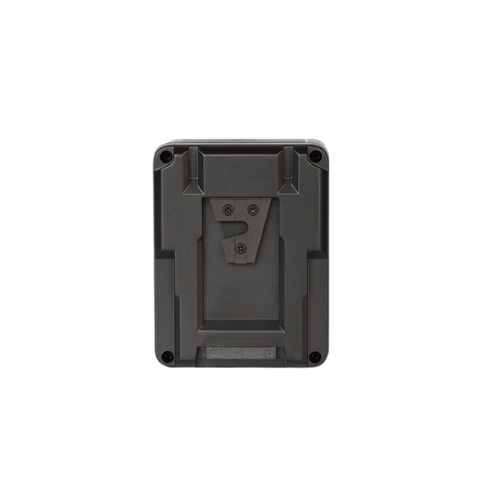

Compact Square Design for Cine Cameras

The PB-S146S features a compact square form factor, shorter than standard V-mount batteries, making it perfectly suited for cine camera setups. Its balanced design improves handling and integration with professional rigs.

High Capacity for Extended Runtime

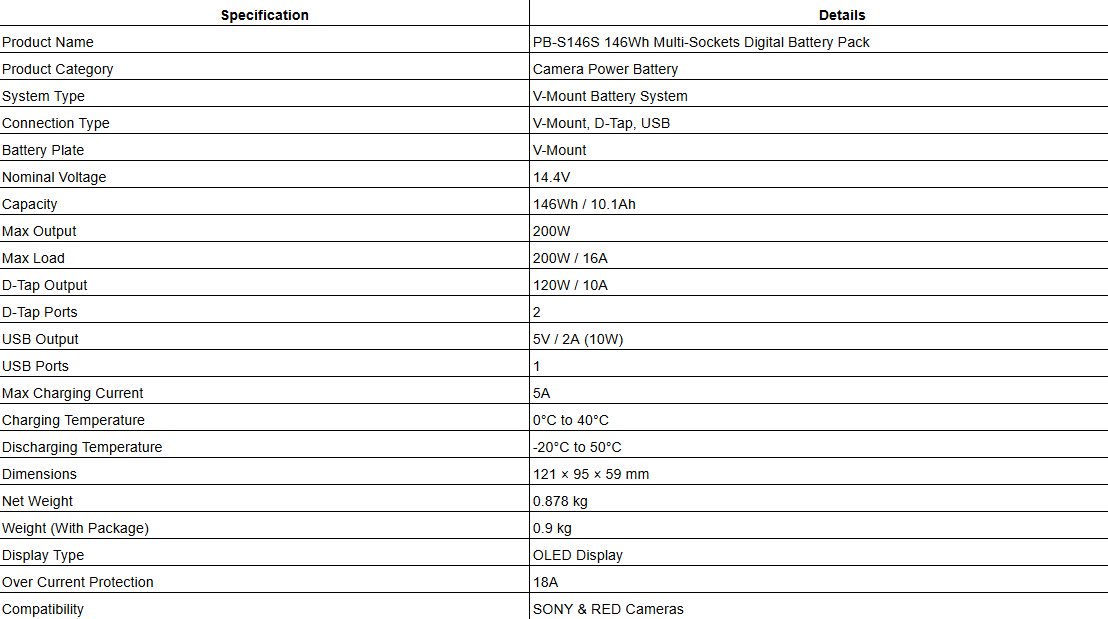

With a 146Wh / 10.1Ah capacity and 14.4V nominal voltage, this battery delivers extended operating time. It can power standard 30W cameras for approximately 5 hours, ensuring reliable performance during long shoots.

High Load Performance for Demanding Equipment

The PB-S146S supports a constant 200W / 16A load, even at low battery levels. It is designed to power high-performance cine cameras and accessories simultaneously while maintaining stable output. Over-current protection is rated at 18A.

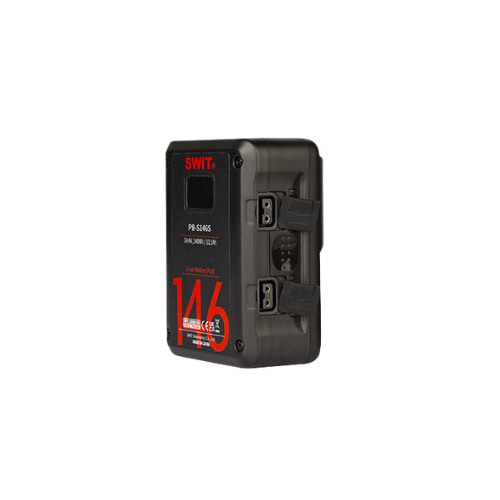

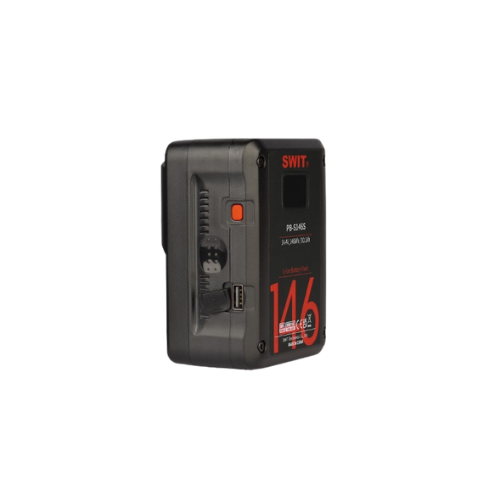

Multi-Socket Power Flexibility

Equipped with two D-Tap output ports and one USB output, this battery allows powering multiple devices at once. Both D-Tap ports also support charging input, offering enhanced convenience and flexibility.

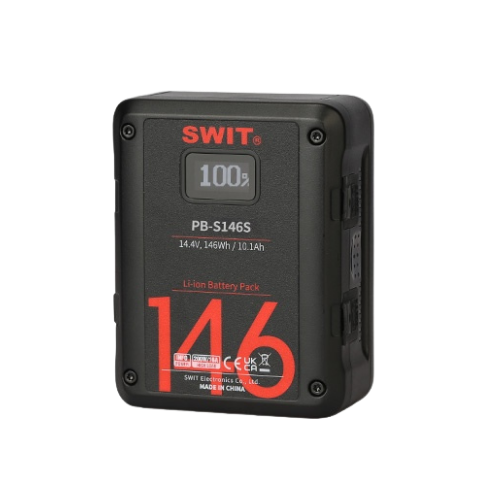

Advanced OLED Digital Display

The built-in OLED display provides accurate and real-time battery information, including remaining capacity, runtime, and cycle count. This enables better power management and monitoring during production.

Smart Camera Integration

With SMBUS compatibility, the PB-S146S integrates seamlessly with SONY and RED camera systems, displaying real-time battery status directly in the camera viewfinder.

Intelligent Protection System

The battery includes a comprehensive protection system that detects overload, overcharge, short circuit, and temperature issues. It automatically safeguards the battery and displays alerts to help maintain optimal performance and lifespan.
