Percon AK 84000 HF Star-Quad Multicore Audio Cable | 8 Quads 24 AWG Copper | Mobile Installation

Eight-Quad Multicore Audio Cable

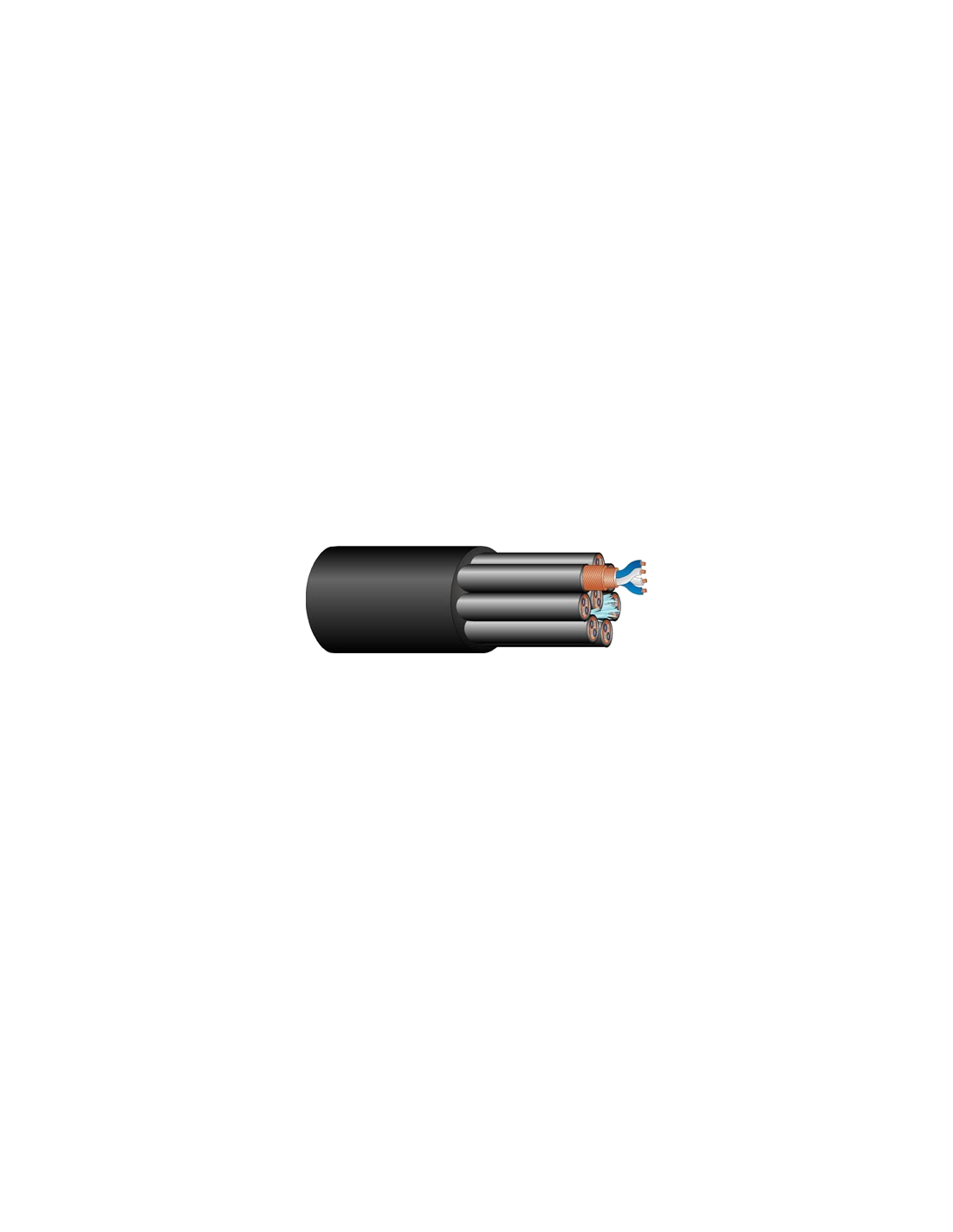

The Percon AK 84000 HF is a multicore analogue audio cable with eight star-quad circuits in one jacket. It is made for mobile installations where many microphone and line signals must run from a stage box, outside broadcast unit or studio rack in a single cable, saving time and reducing the number of separate runs on location.

Quad and Shield Design

Each quad uses 24 AWG copper OFC conductors with PPEX insulation. Every pair has its own double copper spiral shield, which keeps the circuits isolated from each other and supports the excellent signal-to-noise performance that the quad geometry provides across all eight circuits in the cable. Confirm the required length and connector type when you request a quote.

Jacket and Mobile Handling

The FRLSZH jacket is halogen-free and low smoke, which is important in enclosed venues. The nominal diameter is 17 mm and the cable is heavy, so it is typically handled on drums or reels and laid out with care during rig-up to avoid kinks, crushing and damage to the internal conductors. Check the specification against your project brief before placing an order.

Termination and Continuity Testing

Each quad must be terminated consistently, with the star-quad pairing kept intact through the connector. Verify continuity and insulation on every circuit before connecting the stage box to the console, because a single fault in a multicore run can affect several channels at once during the show. Share the route and quantity with your enquiry so the quote matches the job.

When to Choose the 8-Quad Cable

Choose the AK 84000 HF when eight balanced circuits must travel in one mobile multicore. For fewer circuits, the AK 24015 AL HF is the lighter option with two quads. Quotes are issued by length and quad count, so state both when enquiring to receive an accurate offer. Confirm the required length and connector type when you request a quote.
