Percon DMX 507 Lighting Control Cable | 120 Ohm Digital Balanced Pair | DMX and EN3 Compatible

DMX Lighting Control Cable

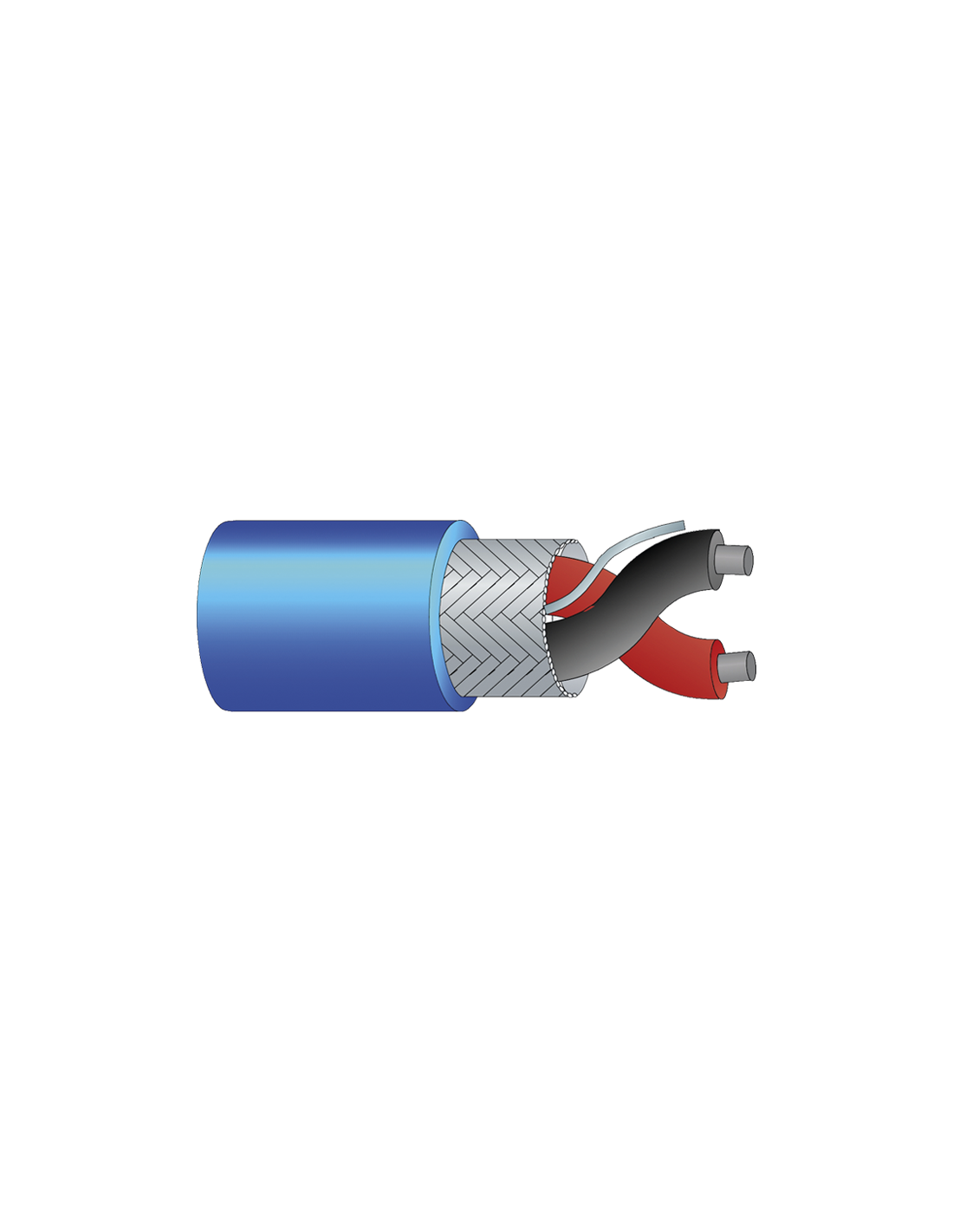

The Percon DMX 507 is a multicore low-capacitance shielded cable for lighting control using the DMX protocol. It supports both 3-pin and 5-pin DMX connections, and the listing also names compatibility with the 5-pin EN3 series used by some Meyer Sound STELLA loudspeakers. Confirm the required length and connector type when you request a quote.

Conductor and Pair Design

The cable has a 120 ohm digital balanced pair built from tinned copper with 22 AWG conductors and 11/32 stranding. The balanced design rejects interference over the DMX run, which matters on long stage lighting circuits. Check the specification against your project brief before placing an order. Confirm the required length and connector type when you request a quote.

Shield and Jacket

A braided CuSn shield covers the pair, and the PTC jacket is rated FCA under EN 50575. The nominal diameter is 6.3 mm, and the cable is listed for mobile installation on tours and in venues. Keep the cable path clear of mains and power runs to limit interference on the DMX signal. Share the route and quantity with your enquiry so the quote matches the job.

Termination Guidance and Details

Terminate DMX cable with 3-pin or 5-pin XLR connectors according to the fixture pin assignment. Keep the shield connected through the connector and terminate the line with the correct 120 ohm resistor at the last fixture. Confirm the required length and connector type when you request a quote. Keep the route plan and connector list ready so the quote reflects the real job.

Choosing the DMX Cable

Choose the DMX 507 for lighting control runs that need a 120 ohm balanced cable with a braided shield. Confirm the pin count required by your fixtures before ordering. Quotes are issued by length and connector type. Check the specification against your project brief before placing an order. Confirm the required length and connector type when you request a quote.
