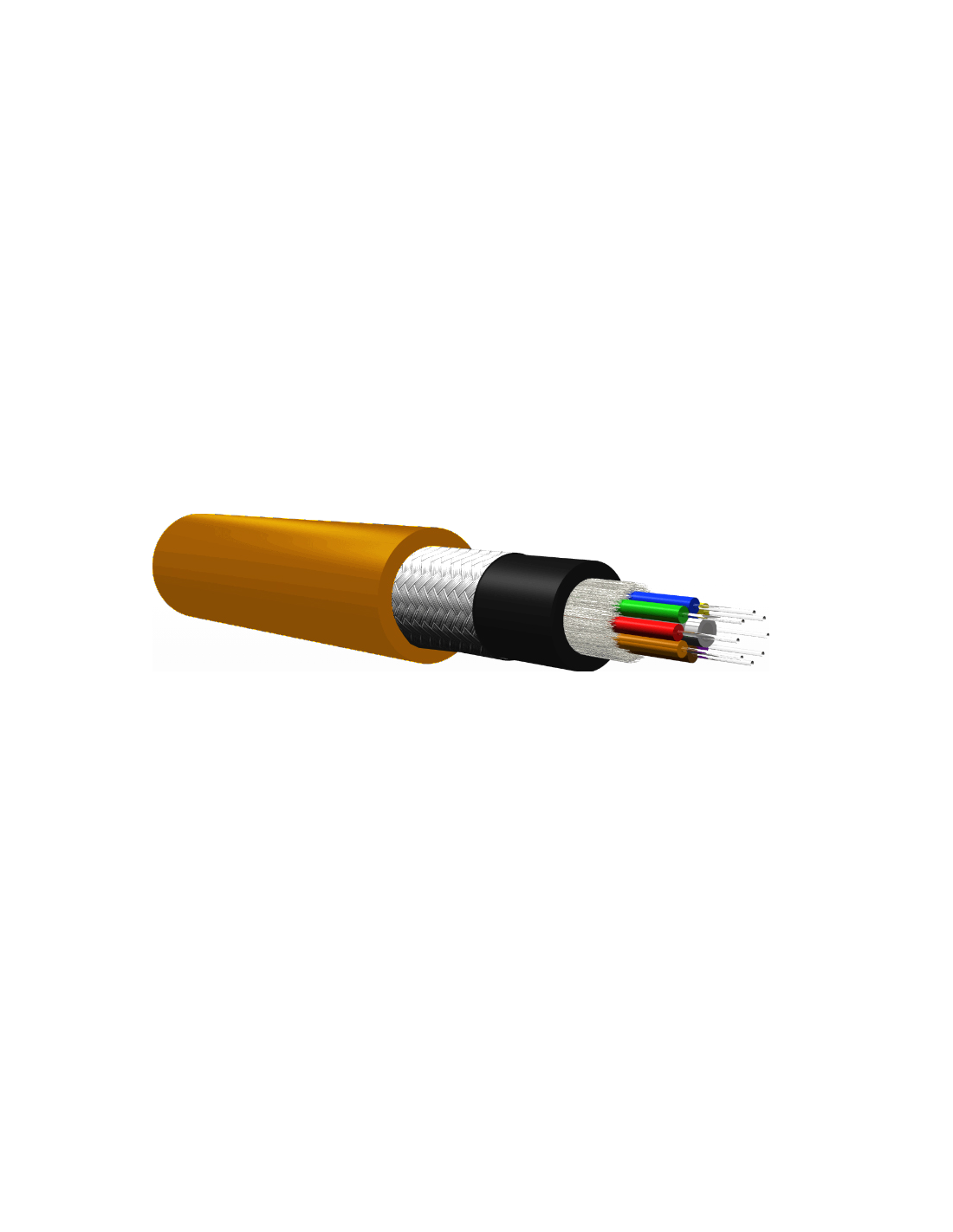

Percon FO2462DDOM1HF OM1 Multimode Fiber Cable | 24 Fibres 62.5/125 | Halogen-Free Indoor Outdoor

Twenty-Four-Fibre OM1 Distribution Cable

The Percon FO2462DDOM1HF is a 24-fibre multimode cable with 62.5/125 micron OM1 fibres. It is a distribution cable for indoor and outdoor runs, where a large fibre count feeds several panels or equipment racks from one route. It is a practical backbone option for buildings that need many multimode links carried together in one protected cable.

Tight Cable Structure

The cable uses a tight construction with direct connection, so connectors can be fitted without a separate splice tray at the cable end. The design is described as very robust and easy to strip, which helps installation teams manage many fibres at once. Careful organisation of the fibres at the patch panel keeps the installation tidy and easier to maintain over the years of service.

Halogen-Free Jacket and Armour

The LSZH jacket is halogen-free and low in smoke, which is required in many enclosed buildings and public facilities. The cable has anti-rodent armour and is completely dielectric, so it suits underground and outdoor ducts. Confirm that the jacket and armour meet the fire and environmental requirements specified for your building before ordering the full length.

Termination and Test Notes

Terminate each fibre with OM1-rated connectors and keep ferrules clean. Test with an OTDR and check the attenuation against the link budget. OM1 fibre has a shorter reach than OM3 at high data rates, so confirm the transceiver specification and the required distance before finalising the design of the link and placing the order for connectors.

Selecting the OM1 Cable

Choose the FO2462DDOM1HF for a 24-fibre multimode distribution route that needs halogen-free jacketing and anti-rodent armour. For OM3 at higher data rates, the FO450DDOM3PUR/XTREM is the better match. Quotes are issued by length, so send the route and connector list with your enquiry to receive an accurate offer for the job and its link budget.
