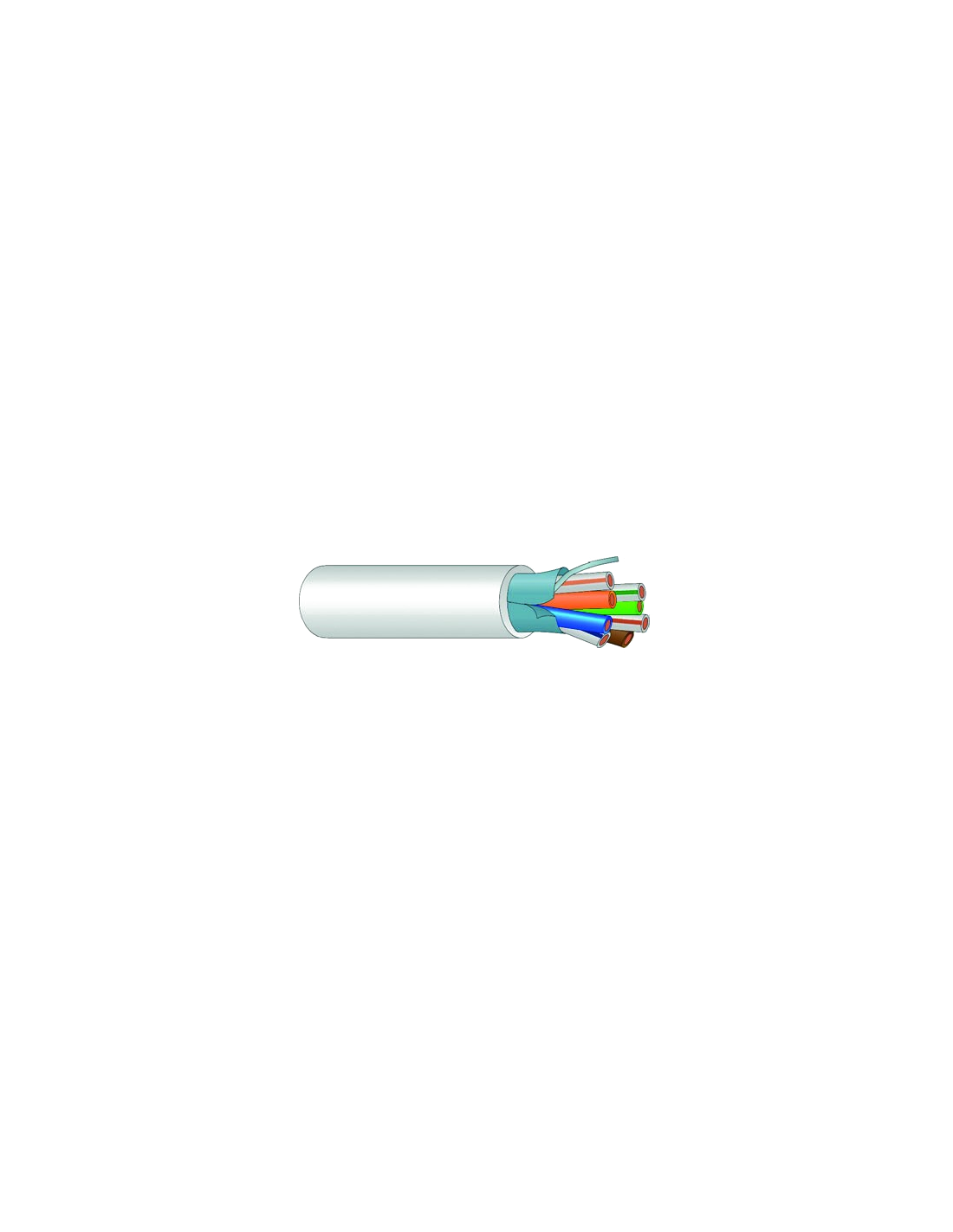

Percon NEO-CAT5011HF/HS Category 5e Data Cable | F/UTP Rigid 24 AWG | Halogen-Free Fixed Installation

Category 5e Fixed-Installation Cable

The Percon NEO-CAT5011HF/HS is a Category 5e F/UTP data cable for connecting computers, network devices and audio-video converters. The listing cites IEEE 802.3 Ethernet, PoE and PoE+, ATM and HDBaseT as applications, so it covers common building network and AV links for offices, studios and facilities. Confirm the required length and connector type when you request a quote.

Pair and Screen Construction

The cable has four pairs of solid 24 AWG copper with PE insulation. An aluminium-PET foil screen wraps the pairs and a drain wire runs along the foil, which improves screening in electrically noisy environments such as plant rooms, lighting areas and busy technical spaces where interference is common. Check the specification against your project brief before placing an order.

Halogen-Free Jacket and Details

The PTC FRLSZH jacket is halogen-free and low smoke, so it releases less smoke and no halogen gas if it burns. The nominal diameter is 6.4 mm, and the cable is listed for fixed installation in buildings and enclosed spaces where fire safety regulations apply to the choice of cabling. Share the route and quantity with your enquiry so the quote matches the job.

Termination and Link Testing

Terminate with Category 5e RJ45 connectors and bond the screen correctly with the rack and patch panel to avoid ground loops. Verify each link with a cable tester after installation, and keep records of the results so that future faults can be traced quickly and accurately across the network. Confirm the required length and connector type when you request a quote.

Choosing Category 5e

Choose the NEO-CAT5011HF/HS for Category 5e networks where a screened fixed cable and halogen-free jacket are needed. For higher bandwidth, the Category 6 and 6A cables in this range are the better choice. Quotes are issued by length, so state the route length and the number of data points when enquiring. Check the specification against your project brief before placing an order.
