Percon NEO-CAT6004 ECA Category 6 Data Cable | U/FTP Rigid 23 AWG | PoE and HDBaseT Ready

Category 6 Cable for Networks and AV

The Percon NEO-CAT6004/ECA is a Category 6 U/FTP data cable for connecting computers, network devices and audio-video converters. The listing names IEEE 802.3 Ethernet, PoE and PoE+, and HDBaseT as typical applications, which makes it useful for AV-over-IP links in studios, control rooms and venues. Confirm the required length and connector type when you request a quote.

Pair and Foil Construction

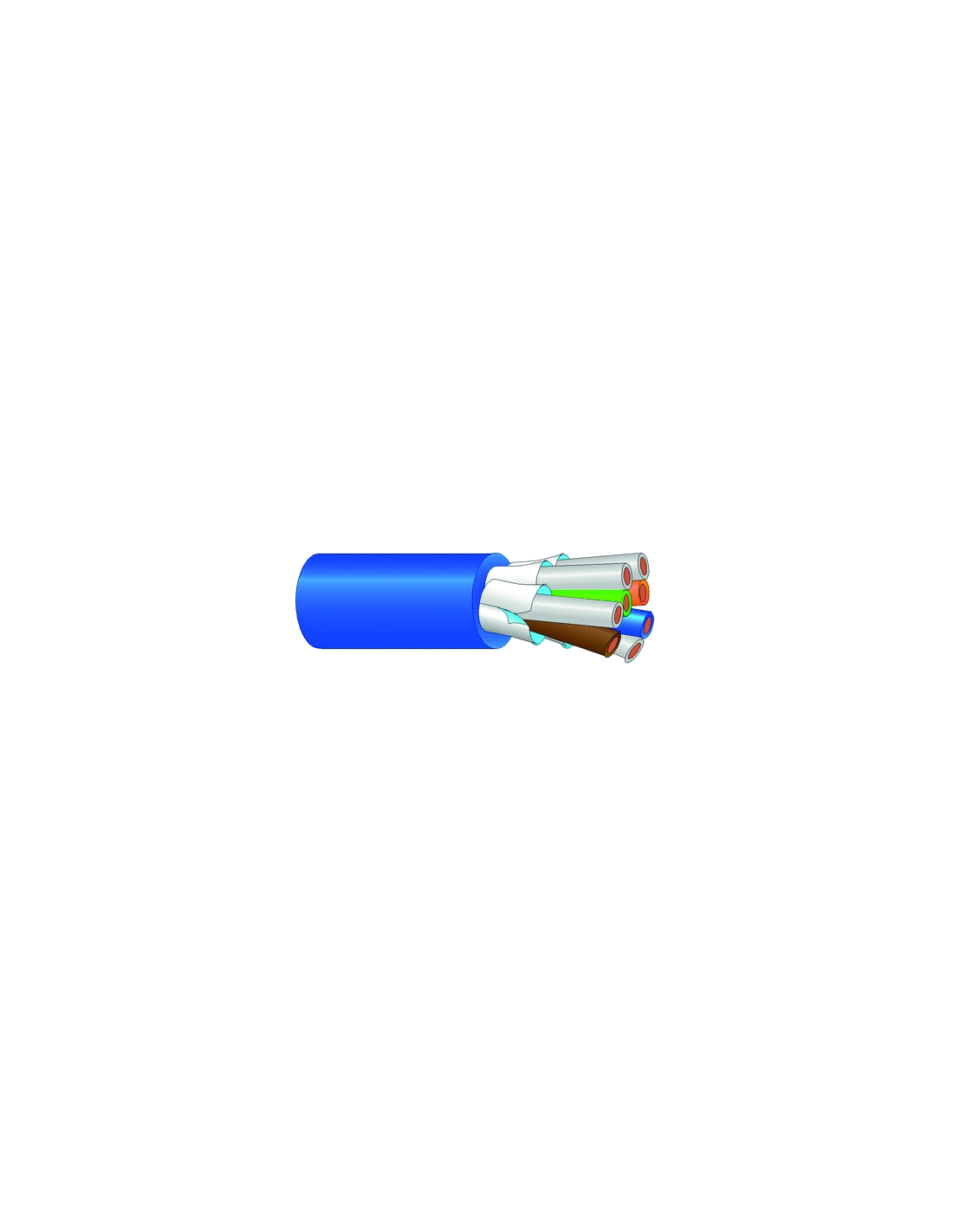

The cable has four pairs, each with an individual foil layer, and an overall screen covering the bundle. Solid copper conductors in the 23 to 27 AWG range give stable performance, and the PEX insulation keeps the pair geometry consistent along the full length of the run for reliable signalling. Check the specification against your project brief before placing an order.

Jacket and Diameter

The jacket is PTC with FRLSZH, which is low smoke and halogen-free. The nominal diameter is 6.5 mm, and the cable is rated ECA under EN 50575 and listed for fixed installation. The jacket choice suits enclosed buildings where smoke and corrosive gases must be limited in the event of a fire. Share the route and quantity with your enquiry so the quote matches the job.

Termination and Testing

Terminate with Category 6 RJ45 connectors and bond the screen correctly at both ends to avoid ground loops, which can add noise to audio-video links. Test each run after installation to confirm the link meets the Category 6 requirements before it is handed over to the users of the system. Confirm the required length and connector type when you request a quote.

Choosing the Category 6 Cable

Choose the NEO-CAT6004/ECA for fixed Category 6 networks and AV-over-IP links where a screened build is needed. For higher bandwidth, the Category 6A options are the better choice. Quotes are issued by length, so send the route length and the network equipment you plan to connect. Check the specification against your project brief before placing an order.
