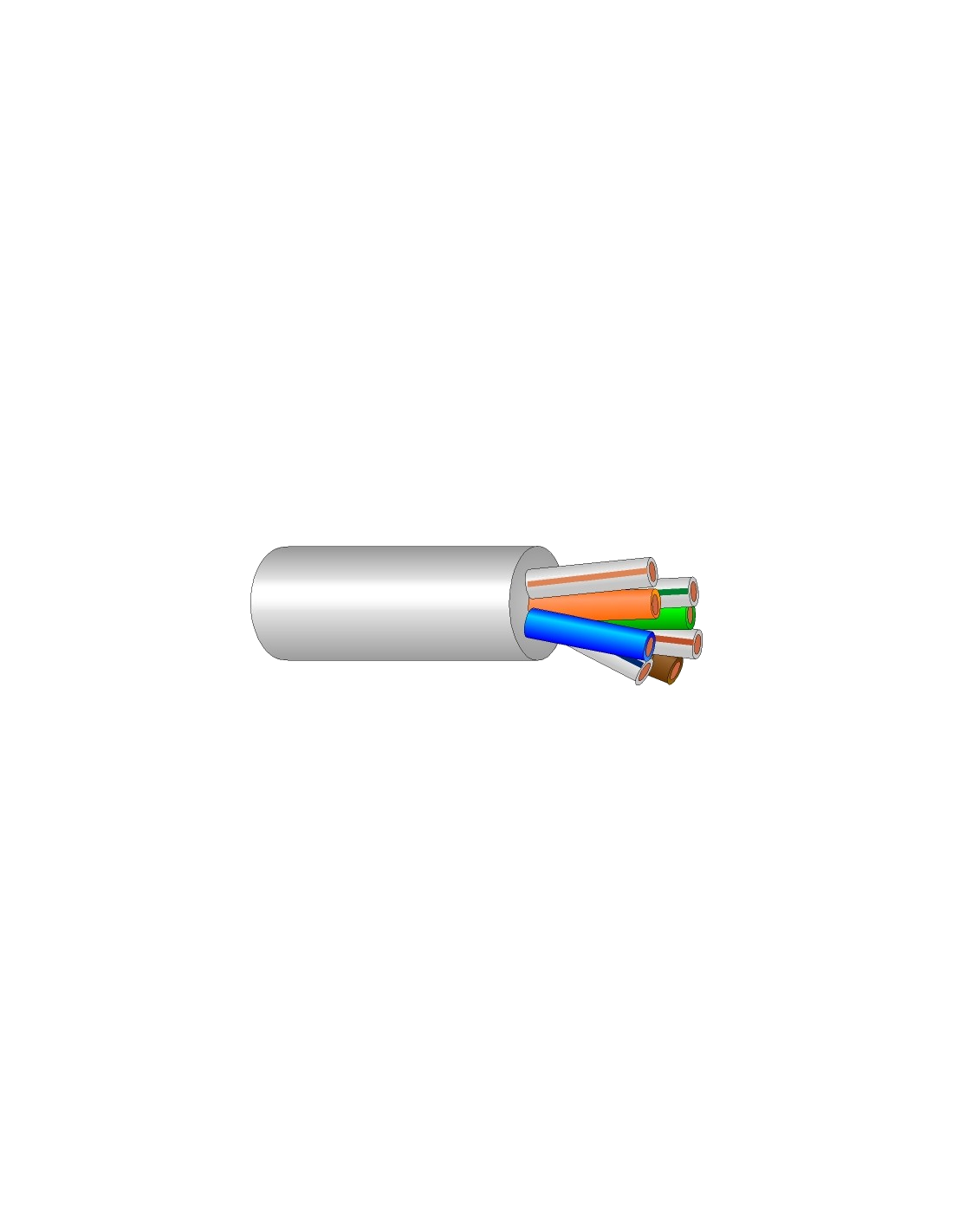

Percon NEO-CAT6020HF B2CA CAT6A U/UTP Data Cable | Solid 23 AWG | Halogen-Free Fixed Installation

Category 6A Fixed-Installation Cable

The Percon NEO-CAT6020HF B2CA is a Category 6A U/UTP data cable for computing and LAN networks in fixed installations. The listing cites ISO/IEC 11801, IEC 61156-5, EN 50173-1 and IEEE 802.3at, so the cable is suitable for PoE links and modern network equipment in buildings and studios. Confirm the required length and connector type when you request a quote.

Conductor and Pair Design

The cable has four pairs of solid 23 AWG copper OFC conductors with PE insulation. The unshielded pair construction keeps the cable thinner and easier to install in trunking where a shielded cable is not required. Solid conductors help maintain stable performance over fixed routes in permanent installations. Check the specification against your project brief before placing an order.

Halogen-Free Jacket and Details

The FRLSZH jacket is halogen-free and low smoke, which is important in enclosed spaces and public buildings. The nominal diameter is 7.4 mm, and the cable is rated B2ca under EN 50575, a classification used in many public buildings and enclosed spaces where cable fire performance is part of the specification. Share the route and quantity with your enquiry so the quote matches the job.

Termination and Certification

Terminate with Category 6A RJ45 connectors and maintain the pair twists up to the contact. Certify the link after installation, since unshielded cable is more sensitive to nearby interference and to poor termination. Careful workmanship at every connector is what delivers the performance the cable is capable of. Confirm the required length and connector type when you request a quote.

Selecting the Fixed CAT6A Cable

Choose the NEO-CAT6020HF B2CA for fixed Category 6A runs that need halogen-free jacketing and a cable without shielding. For mobile use, the NEO-SMART6030/FCA is the shielded version. Lengths are quoted per project, so include the route length and the fire classification your building needs. Check the specification against your project brief before placing an order.
