Percon NEO-CAT7001 Category 7 Data Cable | 900 MHz 4 Pair Shielded | Halogen-Free Mobile Use

Category 7 High-Bandwidth Cable

The Percon NEO-CAT7001 is a Category 7 data cable with a 900 MHz bandwidth rating. The listing cites IEEE 802.3 1000Base-T and 10GBase-T, plus PoE and PoE+, so it targets high-speed network links that also carry power and AV traffic in demanding technical environments. Confirm the required length and connector type when you request a quote.

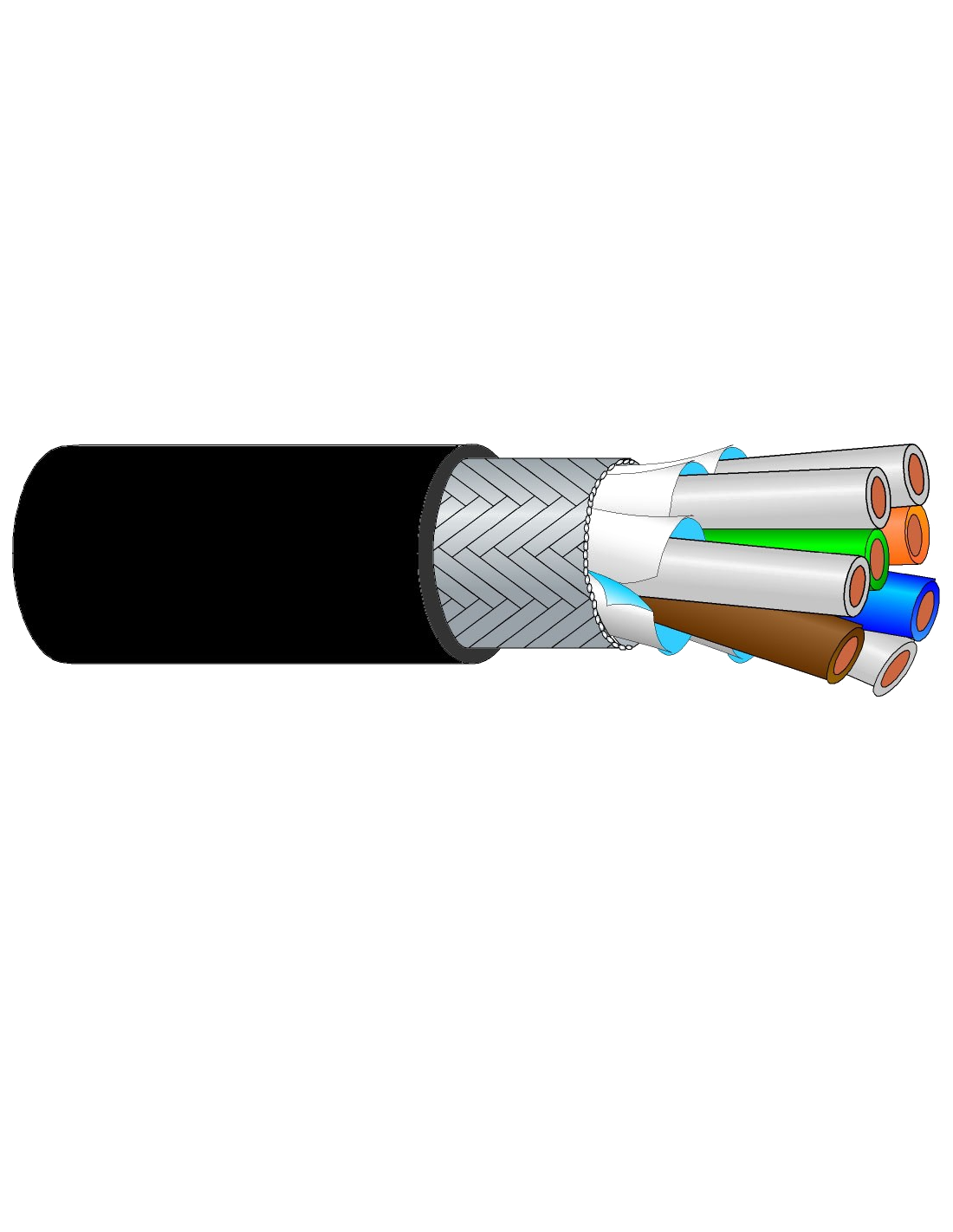

Pair and Screen Design

Four pairs of stranded 23 AWG copper OFC conductors are wrapped with an Al-PET foil, a drain wire and a CuSn screen. The layered screen is what allows the cable to reach Category 7 performance, and it suits environments with significant electrical noise, such as broadcast facilities, plant rooms and studios with heavy lighting. Check the specification against your project brief before placing an order.

Jacket and Mobile Handling

The FRLSZH jacket is halogen-free and low smoke, which suits enclosed venues. The nominal diameter is 7.9 mm, and the cable is listed for mobile installation, so it can be used in production vehicles and temporary networks that are set up and removed between events or productions. Share the route and quantity with your enquiry so the quote matches the job.

Termination and Certification

Category 7 links use shielded connectors designed for that performance class, and the screen must be bonded correctly at both ends. Certify each link after termination, since Category 7 performance is sensitive to poor workmanship and any shortcut in the termination process can reduce the available bandwidth. Confirm the required length and connector type when you request a quote.

Choosing Category 7

Choose the NEO-CAT7001 for high-speed shielded network runs where 10GBase-T performance is needed in a mobile or temporary install. For a lower-cost shielded fixed run, the Category 6 option is the alternative. Quotes are issued by length, so state the speed requirement and route length in your enquiry. Check the specification against your project brief before placing an order.
