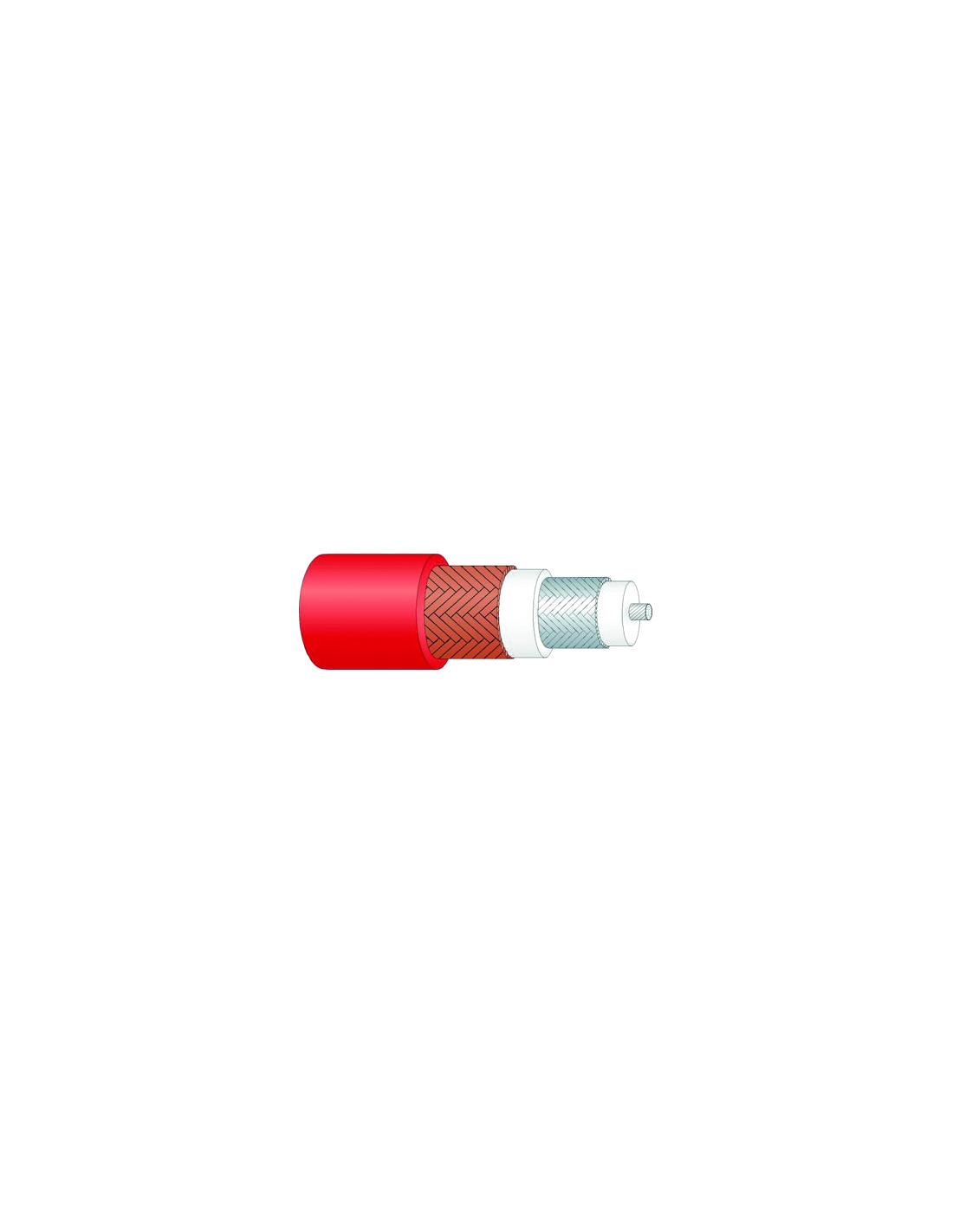

Percon Triax 8 Flex Camera Cable | Flexible Triaxial CuAg 20 AWG | PTC ECA Mobile Installation

Flexible Triax Camera Cable

The Percon Triax 8 Flex PTC ECA is a flexible triaxial camera cable for mobile camera applications. It carries the video, power and communication channels of a triax system and handles repeated movement on camera pedestals, cranes and handheld rigs, where the cable must bend and flex many times over a production day. Confirm the required length and connector type when you request a quote.

Stranded Core Construction

The core is 20 AWG silver-plated copper with 7/28 stranding and a 0.5 mm squared section. The fine strands make the core flexible, and the FHDPE insulation surrounds it in the same way as the rigid version. This is what allows the cable to survive continuous movement without breaking the conductor. Check the specification against your project brief before placing an order.

Shield and Jacket

The copper-silver and copper shield layers keep the triax screening intact while the cable is in motion. The PTC jacket is rated ECA under EN 50575, and the nominal diameter is 8.5 mm, matching the rigid Triax 8 so that the same connectors can be used. Matching diameters simplifies stock and spares for the crew.

Termination and Strain Relief

Use strain relief on the connector, because flexible triax cables tend to fail first at the termination when they are repeatedly flexed. Check the centre conductor and shield continuity after the termination is finished, and retest the cable after any repair so the camera feed remains reliable throughout the shoot. Share the route and quantity with your enquiry so the quote matches the job.

Choosing the Flex Version

Choose the Triax 8 Flex PTC ECA for camera runs that move regularly and need a flexible triax. For fixed studio runs, the Triax 8 Rigid is the rigid option. Quotes are issued by length and connector type, so state the movement profile and length when you enquire. Confirm the required length and connector type when you request a quote.
