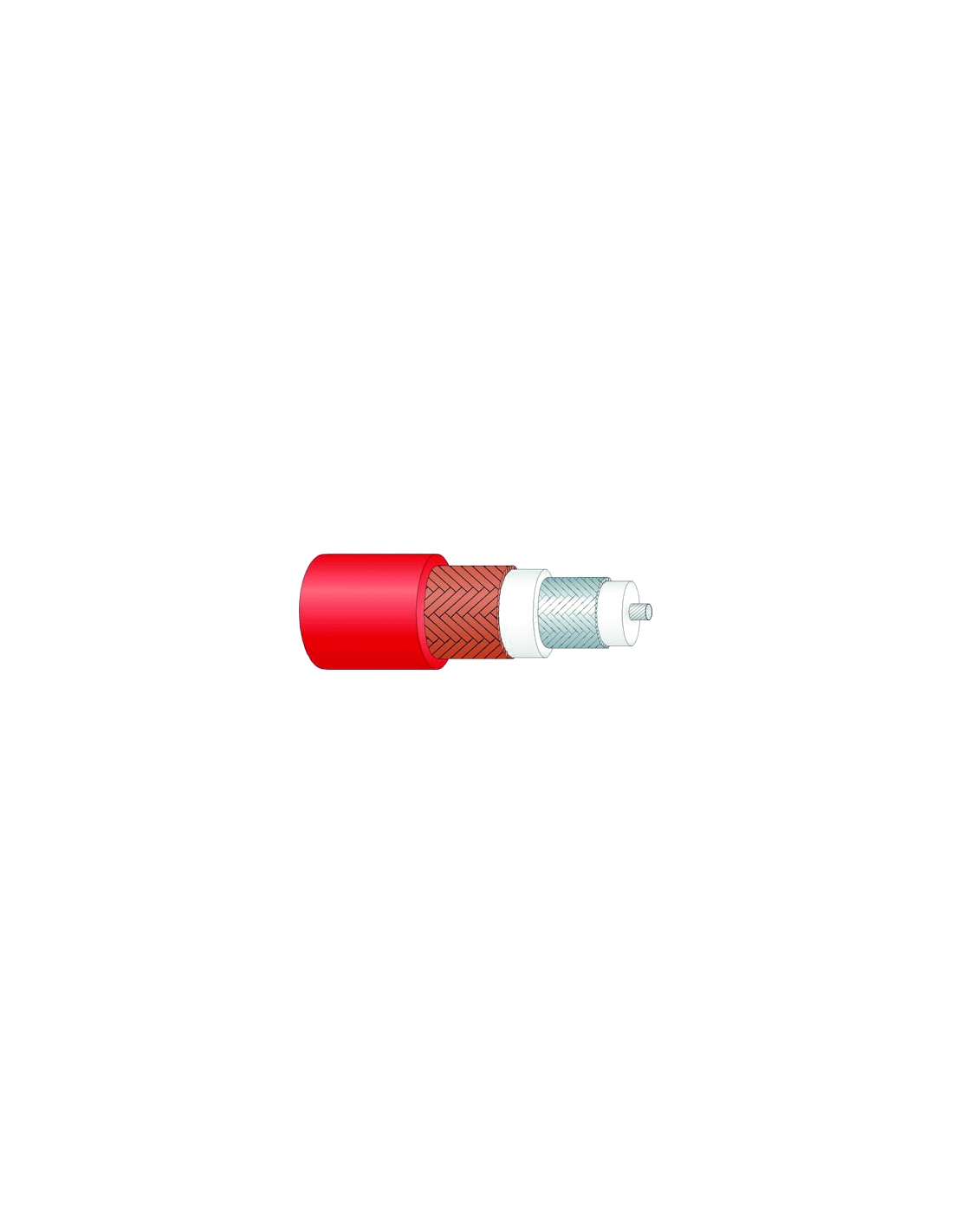

Percon Triax 8 Rigid Camera Cable | Triaxial CuAg Conductor 18 AWG | PUR HF Fixed Studio Use

Triaxial Camera Cable for Studios

The Percon Triax 8 Rigid is a triaxial camera cable that carries video, power and communication over one run. It is built for high performance and resistance in demanding camera applications, and it suits fixed studio installations where the camera position is set and the cable route stays stable over a long period of operation.

Silver-Plated Core and Shielding

The core is silver-plated copper, 18 AWG solid with a 0.785 mm squared section. FHDPE insulation surrounds it, and a copper-silver and copper shield gives the triax its screening and return path. This combination supports the video and power channels in the same cable without mutual interference. Confirm the required length and connector type when you request a quote.

Jacket and Diameter

The jacket is PUR with an HF rating, which is halogen-free and suitable for repeated movement in some installations. The nominal diameter is 8.5 mm, and the cable is listed for fixed installation in studios. The rigid build helps the cable hold its shape once routed through conduit or along a fixed cable path. Check the specification against your project brief before placing an order.

Connector Compatibility and Details

Terminate with triax connectors matched to the 8.5 mm diameter, such as LEMO triax or the matching Percon triax series. Check the shield continuity and the centre-conductor connection before the camera is powered, since a fault at the connector can damage the camera or the power supply in the studio. Share the route and quantity with your enquiry so the quote matches the job.

Choosing Triax 8

Choose the Triax 8 Rigid for fixed camera runs in studios where a rigid build is acceptable and the route is permanent. For flexible camera movement, the Triax 8 Flex PTC ECA is the mobile version. Quotes are issued by length and connector type, so include both when you request pricing. Confirm the required length and connector type when you request a quote.
