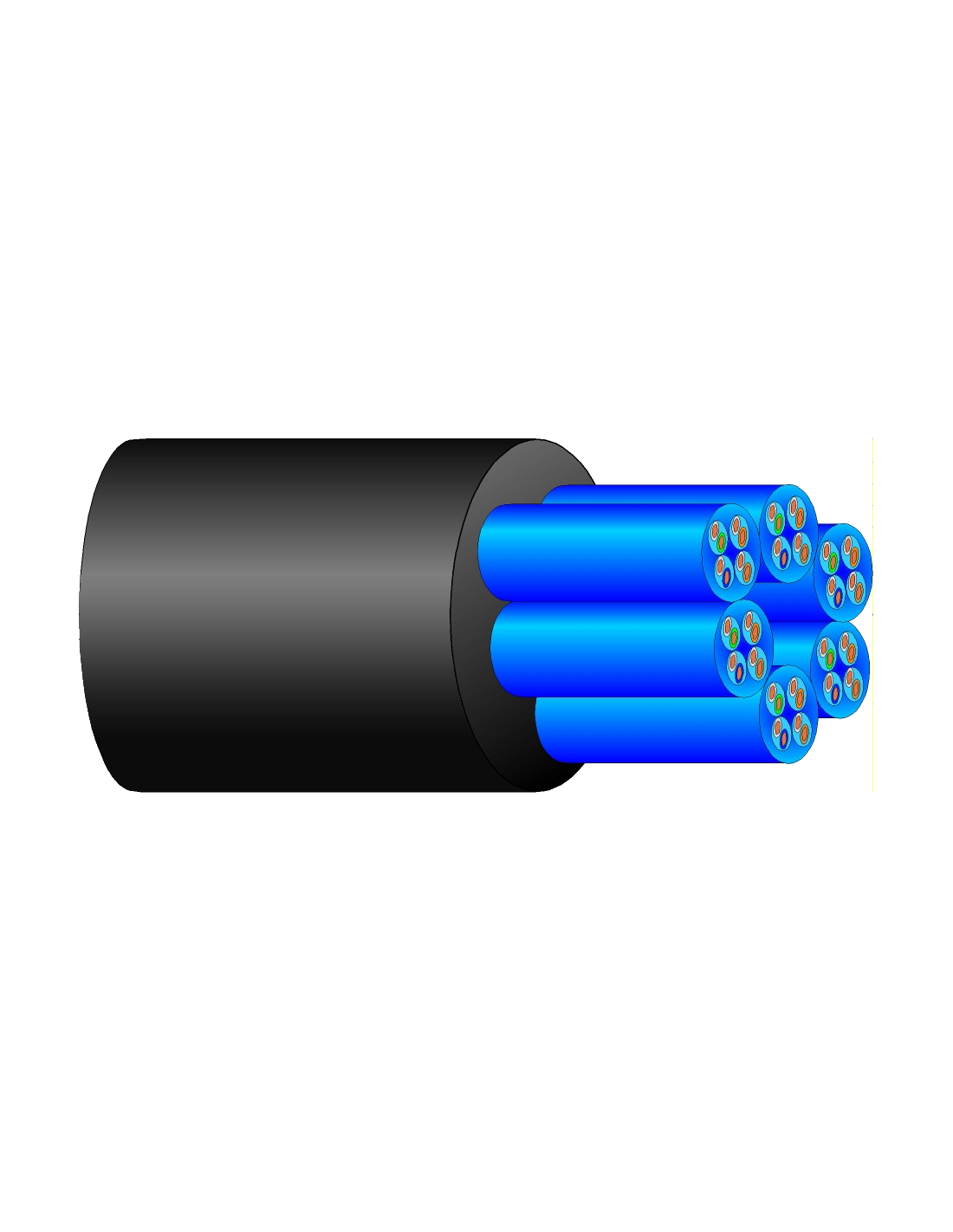

Percon TVL 0006 FCA Analogue Digital Multicore Cable | Composite Video Audio Power | Euroclass FCA

Composite Multicore Cable

The Percon TVL 0006 FCA is a composite cable made to order for video, audio, power and data signals in one jacket. The manufacturer describes it as a cable made to order, so the exact make-up is built to each project's signal list, which avoids running several separate cables on a mobile rig or temporary set.

Conductor Make-Up and Details

The cable has six conductors of 23 AWG solid copper OFC with PEX insulation. The conductors can be combined as coax for video, twisted or quad pairs for audio and UTP for data, which lets one cable replace several separate runs. The make-up is confirmed against the signal list before manufacture so that each conductor has a defined role.

Screening and Diameter

The screen is a foil with two pairs, which keeps the audio and data circuits isolated from the video. The nominal diameter is 24.5 mm, a substantial cable that needs careful routing and strain relief at both ends, especially where it is laid across a rig or passes through cable management on a mobile unit.

Jacket and Compliance

The PTC jacket is rated Euroclass FCA under EN 50575, which is a classification many European and Gulf projects specify for installed cabling. The cable is listed for mobile installation, so it suits outside broadcast units and touring rigs where cable must be moved and reused on several productions. Confirm the required length and connector type when you request a quote.

Choosing a Composite Cable

Choose the TVL 0006 FCA when a single composite run must carry video, audio and data for a mobile rig. For a simpler multicore, the VK or AK series are the standard options. Each composite is quoted to the signal list, so send the full list of signal types and quantities when enquiring. Check the specification against your project brief before placing an order.
