Audio and Power in One Cable

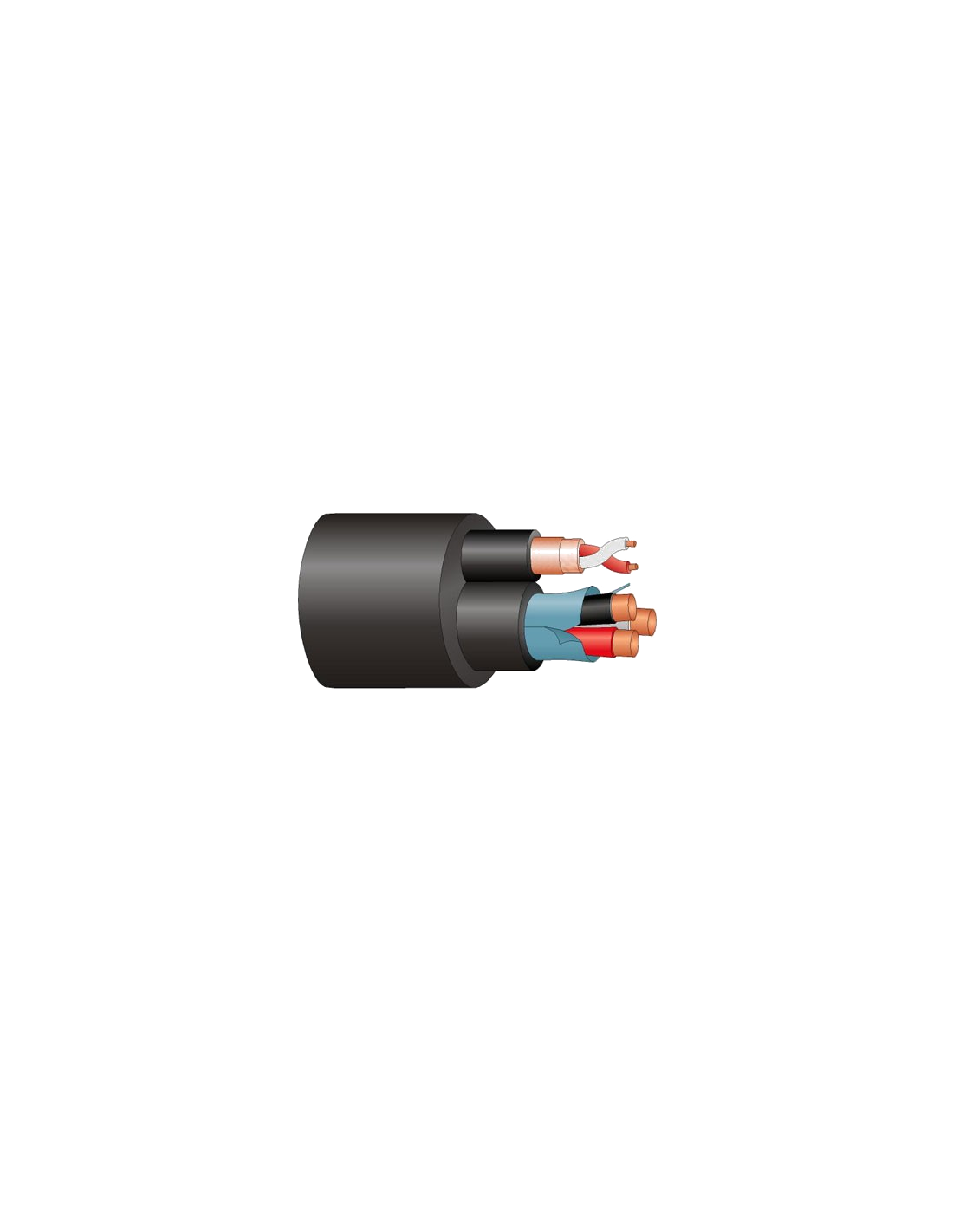

The Percon TVL 0110 FCA is a combined cable that brings an audio pair and power conductors into one jacket. It is designed for self-amplified loudspeaker installations, where one cable must deliver both the signal and the mains supply to the speaker. This reduces the number of cables needed on a stage, in a venue or in a temporary sound system.

Conductor Layout and Details

The audio part uses 24 AWG oxygen-free copper with an Al-PET shield and drain wire. The power section uses larger conductors, with 16 AWG stranding for the power cores, giving a combined design that is built for practical installation. Keeping the audio and power parts within one jacket simplifies routing, though the two sections must still be handled separately at the terminations.

Jacket and Diameter

The jacket is FRLSZH, which is halogen-free and low smoke, a useful feature in enclosed venues. The nominal diameter is 16 mm and the cable is listed for mobile installation, so it suits touring rigs and temporary sound systems where the cable is moved between sites regularly and must survive rough handling. Confirm the required length and connector type when you request a quote.

Installation Safety and Details

Power cores must be terminated and tested by a qualified electrician to the local wiring rules before the speaker is energised. Keep the audio and power conductors separated at the terminations to avoid interference and accidental contact, and label both ends clearly before the system is switched on for the first time. Check the specification against your project brief before placing an order.

Selecting the Active Speaker Cable

Choose the TVL 0110 FCA when one cable must carry audio and power to a powered speaker. For passive speaker runs without power, the SP Premium or SK 2115 are the simpler choices. Quotes are issued by length, so state both the audio and power requirements in the enquiry. Share the route and quantity with your enquiry so the quote matches the job.
