Percon VK 5065 PTC FCA Multicore Video Cable | 5 Coax RGBHV 23 AWG | Fixed Installation Use

Five-Channel Multicore Video Cable

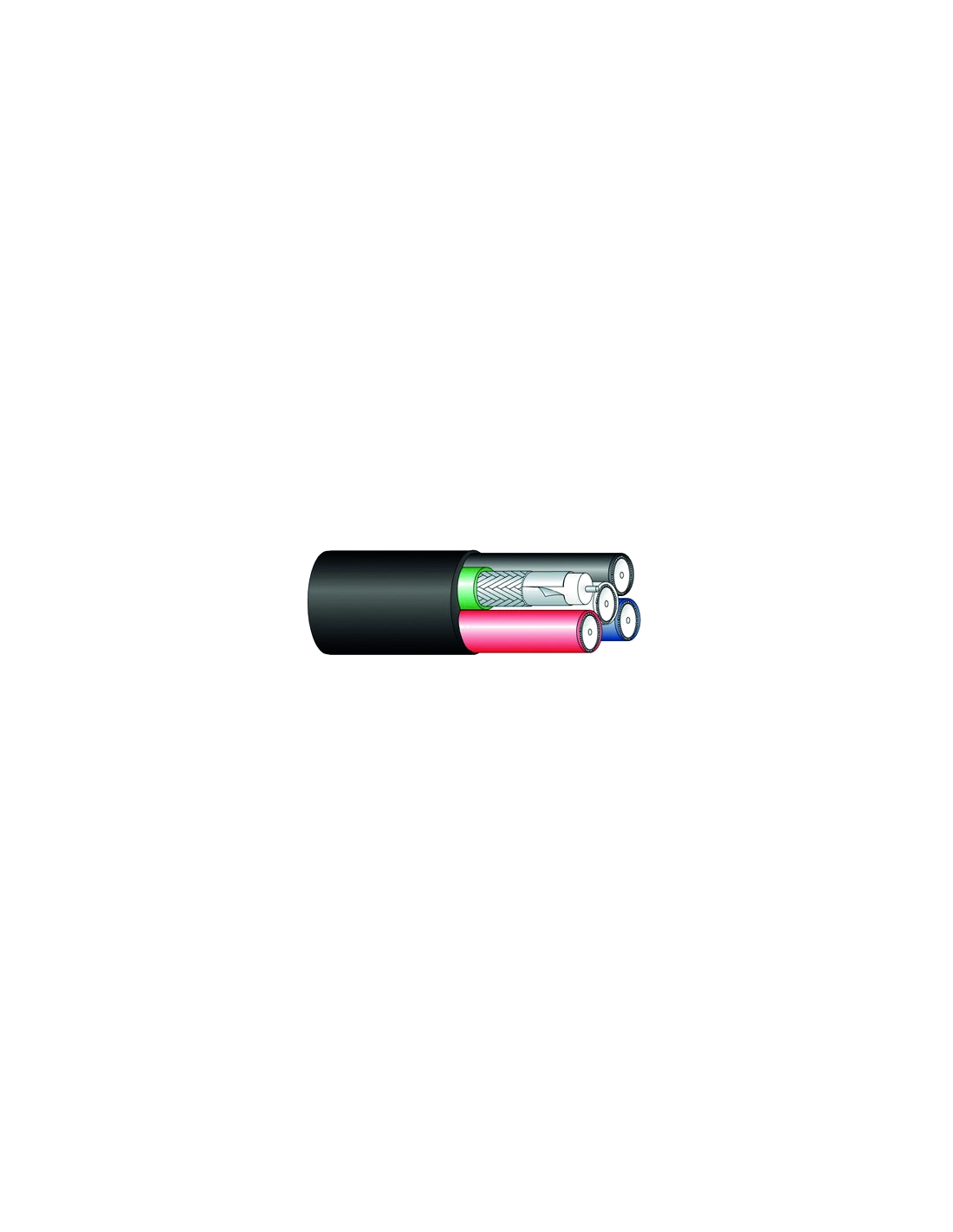

The Percon VK 5065 PTC FCA is a multicore cable for analogue and digital video, computer graphics and component signals. It carries five coaxial channels, enough for RGBHV plus sync, inside a single 14.1 mm jacket. Fewer coaxials than the VK 8065 make it a good fit for smaller rigs, single-display runs and compact camera or monitor links where a full eight-channel bundle would be too large.

Coaxial Construction and Shielding

Each coax has a 23 AWG solid copper conductor, FHDPE insulation and an Al-PET-Al foil with a braided CuSn shield. This shielding limits crosstalk between the five channels, which matters when colour components share one cable, since any leakage would show as colour error on screen. The design keeps the signal paths balanced along the full length of the run, supporting consistent picture quality.

Jacket and Fire Rating

The PTC jacket is a PTC compound designed for fixed installation in buildings. The cable is rated Euroclass FCA to EN 50575, the same standard referenced for the VK 8065, which matters where cable fire performance is part of the tender specification. Confirm the fire class and jacket colour your project needs before specifying the cable on the bill of materials for the job.

Installation and Handling

The VK 5065 is intended for fixed installation in racks, trunking and control rooms, where it will stay in place for many years. Its 14.1 mm diameter and bend radius should be checked against the conduit and cable tray before pulling begins. Use a pulling grip rated for the weight of the cable and terminate with matching multi-coax connectors that suit the five-channel build.

Selecting the Right Multicore Option

Choose the VK 5065 when five coaxial channels are enough for the signal path, since a smaller bundle is easier to route and terminate. For more channels, the VK 8065 provides eight coaxials in one cable. Percon quotes cable by length and configuration, so send the channel count and required length when requesting a quote to make sure the offer matches your route and plan.
