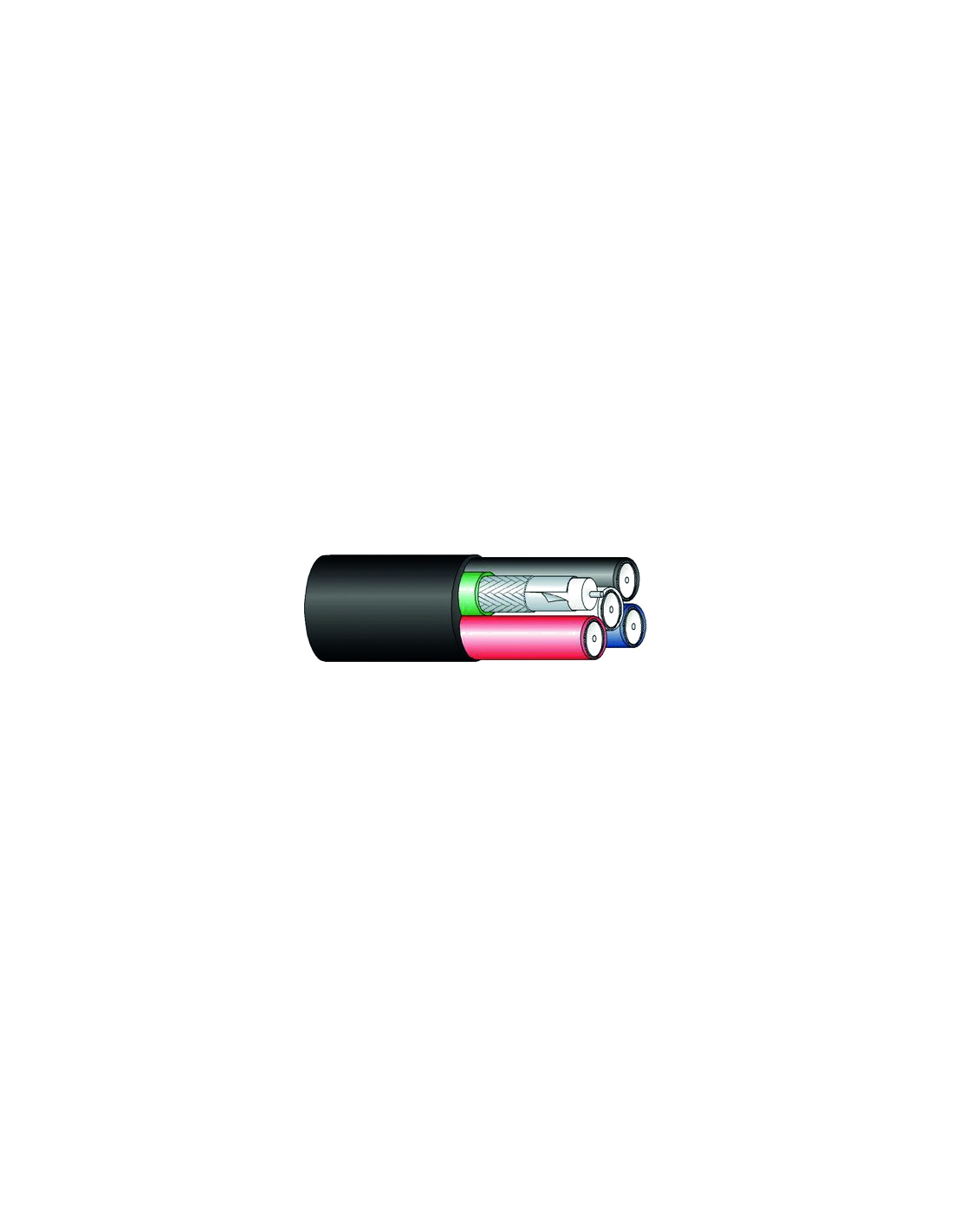

Percon VK 5471 PTC FCA Video Cable | 5 Coax 18 AWG Conductors | Fixed Installation Use

Heavy-Gauge Multicore Video Cable

The Percon VK 5471 PTC FCA is a five-coaxial video cable with 18 AWG conductors. The heavier gauge reduces resistive loss on longer runs, so it is chosen for distances where the smaller VK 5065 would lose too much level. It suits building-scale video distribution, long studio trunks and fixed links that cover significant distances between equipment rooms and control positions.

Conductor and Insulation Design

Each coaxial uses a solid copper conductor with a cross-section of 0.785 mm squared, surrounded by FHDPE insulation. A combined Al-PET-Al and CuSn shield protects each coax from interference, and the design is intended to keep the five channels balanced over distance so that picture quality holds up at the far end of the run.

Outer Diameter and Installation

The overall nominal diameter is 22.1 mm, which is larger than the smaller multicore options in this range. Plan conduit fill, bend radius and pulling tension carefully, and use a pulling grip sized for the cable. The cable is listed for fixed installation rather than repeated movement, so route it in trunking or conduit where it will stay put.

Jacket and Compliance

The PTC jacket is rated Euroclass FCA under EN 50575. The cable is designed for fixed runs in buildings, so the jacket and fire rating matter for insurance, inspection and approval. Confirm the specific jacket requirements of your project before ordering, including any local regulations that apply to cables installed in shared or public spaces.

Recommendation for Long-Distance Runs

Specify the VK 5471 when a multi-channel video path is long and needs low loss across the whole route. For shorter runs or tighter spaces, the VK 5065 or VK 8065 are more practical choices. Quotes are issued by length and configuration, so send the route distance and channel count when enquiring, so that the quote matches the installation plan and the cable can be ordered accurately.
