PL-E90L 90W Bi-color Long Ratio LED Panel

SWIT LED Lights
Professional broadcast product designed for reliable production, streaming, and modern media workflows.
Genuine
Product
Official
Warranty
Technical
Support
Fast
Delivery

Key Features

Key Features

  • 0.5×3 ft long ratio panel for vertical and edge lighting
  • 480 edge-mounted SMD LEDs for soft and even illumination
  • 90W output delivering 2000 Lux at 1 meter
  • Ultra-slim 21mm design for portability
  • Bi-color adjustable from 2700K to 6500K
  • Flicker-free dimming from 0–100%
  • Exceptional color accuracy: CRI 99, TLCI 99
  • Advanced 90° light guide technology for efficient brightness
  • DMX512 and interaction control support
  • USB power output for wireless DMX receivers
  • Includes 2-leaf metal barn doors
  • Portable kit options available
Pricing Dhs. 0.00
Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.
Need help choosing? Talk to our experts →
Product Overview +

Long Ratio Design for Creative Lighting

The PL-E90L features a unique 0.5×3 ft long ratio design, making it ideal for vertical lighting, rim lighting, and shaping subjects. This form factor is especially useful for portrait setups and interview lighting.

Ultra Slim and Portable Build

With a thickness of only 21mm, the PL-E90L is extremely slim and easy to transport. Its lightweight structure makes it perfect for field production and mobile studio setups.

Advanced Edge-Lit Technology

The side-mounted SMD LEDs combined with innovative 90° light guide technology deliver soft, evenly distributed light. This ensures smooth illumination without harsh shadows or hotspots.

High Output with Smooth Dimming

Delivering 2000 Lux at 1 meter, the light provides strong brightness for professional applications. The flicker-free dimming system allows precise control from 0% to 100%.

Flexible Bi-color Adjustment

The adjustable color temperature range from 2700K to 6500K allows seamless switching between warm and cool tones. This ensures accurate lighting for various shooting environments.

Superior Color Accuracy

With CRI 99 and TLCI 99, the PL-E90L guarantees highly accurate color reproduction, making it ideal for broadcast, film, and professional video production.

Professional Control and Connectivity

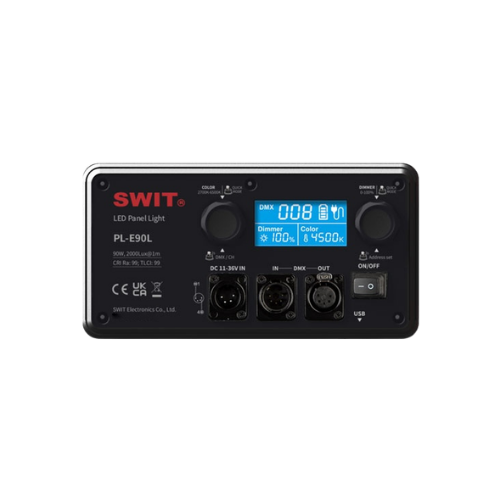

The light supports DMX512 control and interaction control for multi-light setups. The built-in LCD screen provides real-time information including brightness, color temperature, and power status.

Versatile Mounting and Kit Options

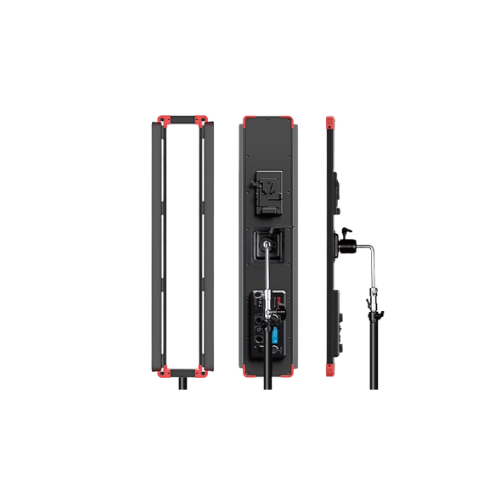

The rotatable mounting system allows 360° rotation and 180° tilt for flexible positioning. It is available in single or 3-light kit packages, with an optional ceiling-mounted version for studio installations.

Technical Specifications +

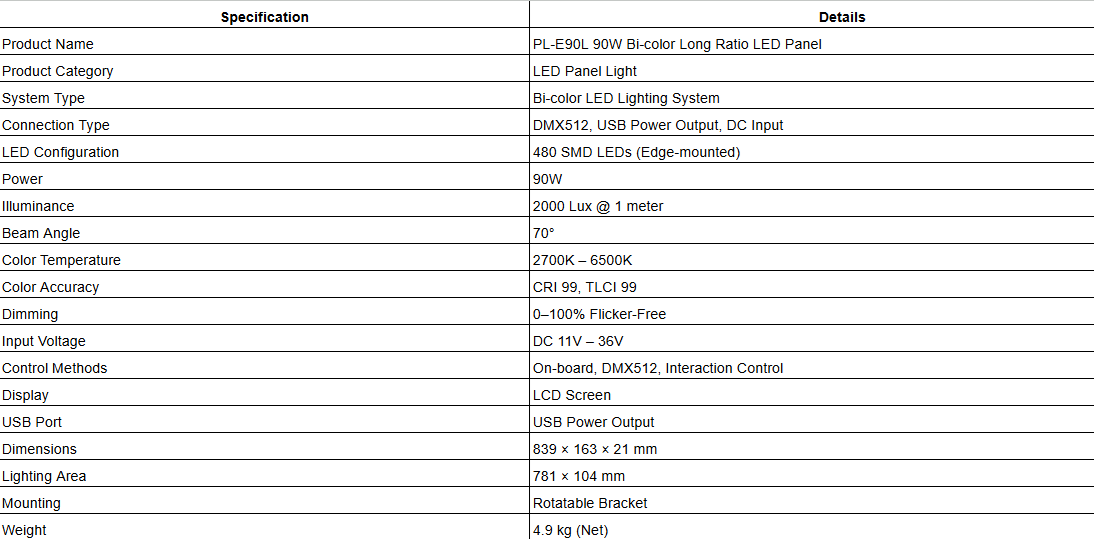

PL-E90L 90W Bi-color Long Ratio LED Panel technical specifications
