PL-S150D 150W Bi-color Studio SMD LED Light

PL-S150D 150W Bi-color Studio SMD LED Light

SWIT LED Lights

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

150W bi-color 2×1 studio SMD LED panel
1152 ultra-bright long-life SMD LEDs
High-efficiency surface-mounted LED technology
Bright output up to 5,500 Lux at 1 meter
64° half-peak beam angle for controlled soft light
Bi-color range from 2700K to 6500K, continuously adjustable
Full 150W output at any color temperature
High color accuracy with CRI 97, TLCI 99, SSI (D55) 73
Smooth exponential dimming curve for natural light response
DMX512 control with LCD interface

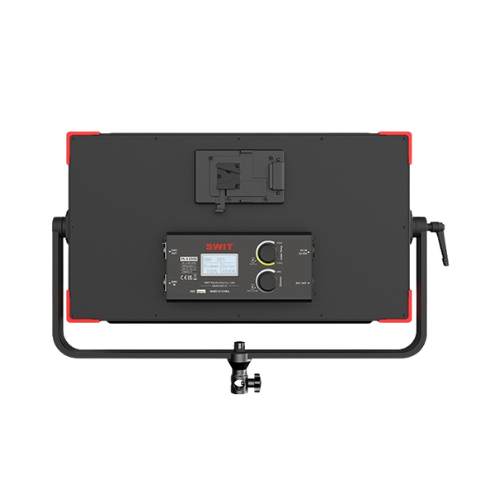

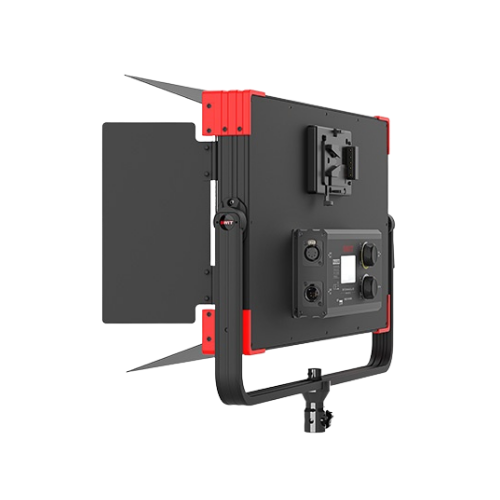

Power via V-mount / Gold mount battery or AC adapter
5-pin DMX IN/OUT with USB-A power output for wireless DMX
Fanless design for silent studio operation

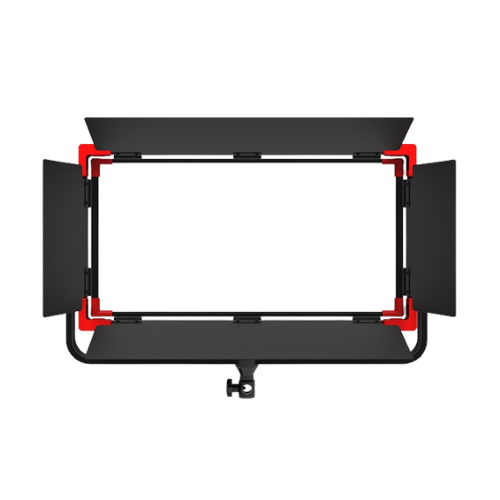

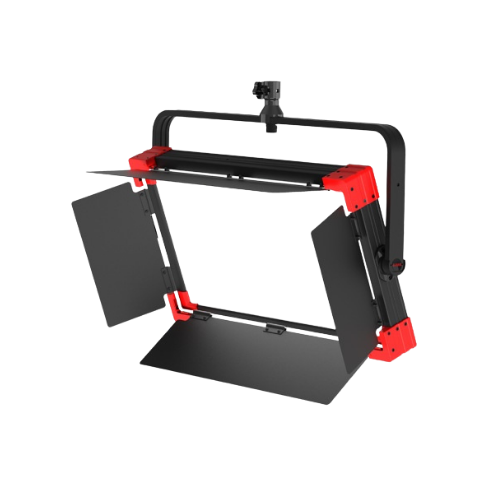

Includes 4-leaf metal barndoors and yoke bracket
Optional 40° honeycomb for beam control

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Powerful Compact Studio Lighting

The PL-S150D is a professional 150W bi-color SMD LED panel designed for broadcast studios, film production, and field shooting. It delivers strong output in a compact 2×1 form factor.

High Brightness Output

With 5,500 Lux at 1 meter, this panel is significantly brighter than standard 100W LED fixtures, making it suitable for modern HDR and 4K studio environments.

Smooth Soft Light with Control

The 64° beam angle provides a balanced soft-light spread with enough directionality for key and fill lighting. The exponential dimming curve ensures smooth transitions at low intensities.

Accurate Color Reproduction

With CRI 97, TLCI 99, and SSI (D55) 73, the PL-S150D ensures consistent and natural color reproduction, especially important for broadcast and cinematic production.

Silent Operation

The fanless thermal design ensures completely silent operation, making it ideal for interviews, live broadcasting, and sound-sensitive environments.

Flexible Power System

Supports both AC adapter and DC 12–36V input with V-mount/Gold mount battery compatibility, allowing seamless studio or field use.

Professional Control System

DMX512 control with LCD display allows precise adjustment of brightness, color temperature, and group control settings. USB-A output supports wireless DMX receivers.

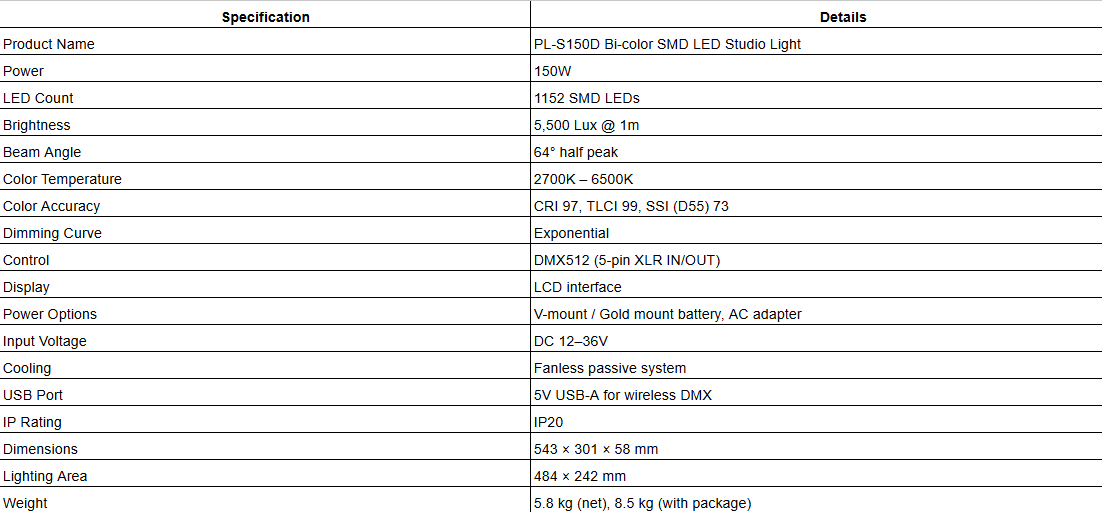

Technical Specifications +

technical specifications
