Key Features
Key Features
- 150W bi-color studio LED panel (long ratio design)
- 1152 ultra-bright long-life SMD LEDs
- Slim 3×0.5' form factor ideal for low ceiling studios
- Bright output up to 4,800 Lux at 1 meter
- Wide 69° half-peak beam angle for soft, even lighting
- Bi-color range from 2700K to 6500K, continuously adjustable
- High color accuracy with CRI 97, TLCI 99, SSI (D55) 73
- Smooth exponential dimming curve for natural low-light control
- Fanless design for completely silent operation
- IEC 62471 certified for photobiological safety
- DMX512 control with LCD interface
- 3-pin XLR DC 12–36V input with AC adapter support
- On-board V-mount battery plate for mobile setups
- 360° ball head mounting bracket for flexible positioning
- Includes 2-leaf metal barndoors
- Optional pole-operated pan/tilt yoke available
Features & Specifications
Product Overview +
Designed for Low Ceiling Studios
The PL-S150L features a unique long, slim 3×0.5' design specifically created for tight studio environments. It mounts close to the ceiling, reducing visual obstruction and maximizing camera angles.
Soft, Controlled Output
With a 69° beam angle and 4,800 Lux output at 1 meter, this light provides soft yet powerful illumination suitable for key, fill, or background lighting in compact studios.
Precision Bi-Color Control
The panel offers smooth adjustment between 2700K and 6500K using dual LED arrays, maintaining consistent 150W output across all color temperatures.
High Color Accuracy
With CRI 97, TLCI 99, and SSI (D55) 73, the PL-S150L delivers accurate skin tones and true-to-life color reproduction for professional video production.
Silent Fanless Operation
Its passive cooling system ensures zero fan noise, making it ideal for interviews, podcasts, and sound-sensitive recording environments.
Flexible Installation & Control

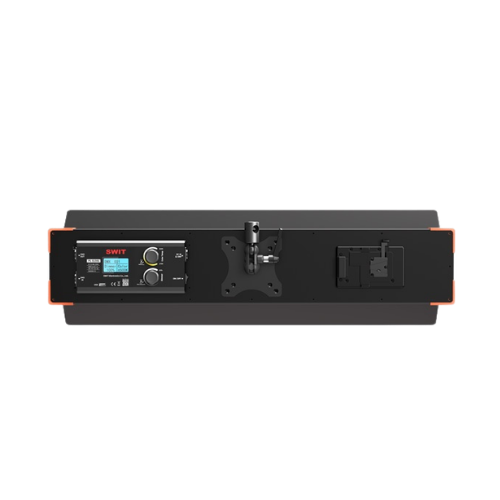

The 360° ball head bracket allows flexible positioning, while DMX512 control and onboard LCD interface provide precise lighting adjustments.
Portable Power Options
Supports both AC power and DC 12–36V input with an integrated V-mount battery plate, making it suitable for studio and field use.

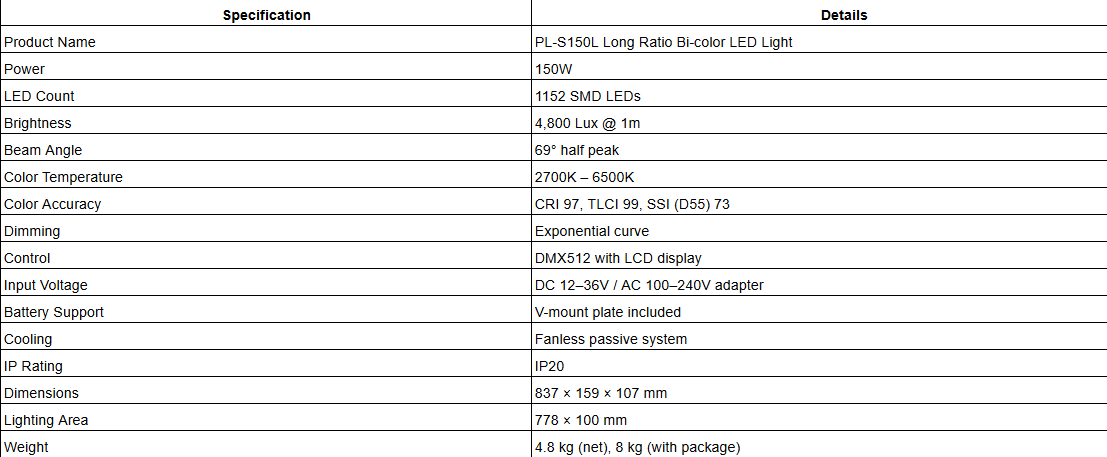

Technical Specifications +
technical specifications
