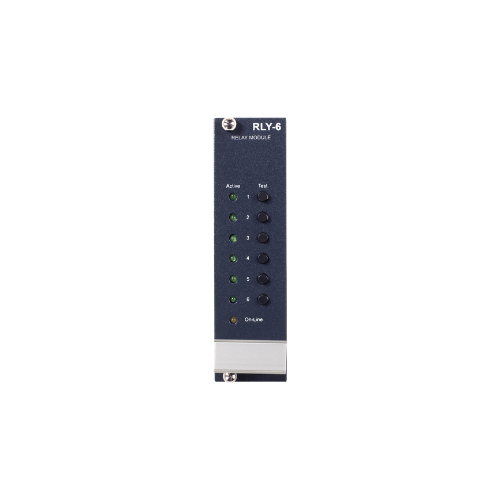

Clear-Com RLY-6 6-Way Relay Control Interface Module

Clear-Com RLY-6 6-Way Relay Control Interface Module

Clear-Com Matrix

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Provides six programmable SPDT relay outputs
Supports external switching and control functions
Integrates directly with the Eclipse HX matrix system
Daisy-chain connectivity for multiple control modules
Does not consume standard audio I/O ports
Ideal for automation, signaling, and external device control
Designed for broadcast and professional communication environments

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

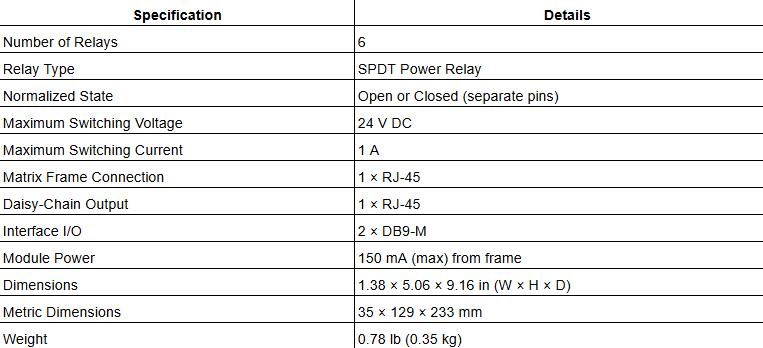

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Dedicated Relay Control for Intercom Systems

The RLY-6 6-Way Relay Control Interface Module expands the control capabilities of the Eclipse HX Digital Matrix System by providing six programmable relay outputs. These relays allow the intercom system to trigger external equipment and perform switching functions within complex communication setups.

Flexible External Device Control

Each relay operates as an SPDT power relay, allowing integration with external hardware such as signal lights, alarms, broadcast equipment, or automation systems. This makes the RLY-6 suitable for studios, production facilities, and command centers where intercom systems must interact with other operational equipment.

Daisy-Chain Module Architecture

The RLY-6 connects through the system’s CPU card and supports daisy-chain connectivity, enabling multiple control modules to be installed in sequence. This architecture allows users to expand the system’s control capabilities without using valuable audio interface ports.

Seamless Integration with Eclipse Frames

The module can be installed in compatible frames including Median Frame, Delta Frame, Delta-Lite Frame, or interface frames such as IMF-3 Interface Frame. Once installed, it integrates directly with the matrix system to provide reliable hardware control capabilities.
