RM-2S10 Reference Monitor | 1U Rack-Mount 10-Stereo Channel Precision Metering System
Product
Warranty
Support
Delivery
Key Features
Key Features
- Dual 53-Segment Broadcast LED Metering
- Multi-Format Analog & AES/EBU Audio Inputs
- DSP Three-Way Monitor Speaker System
- Advanced Audio Monitoring Controls
- Parametric EQ & Hardware Alarm Outputs
Request a Quote
Secure checkout. Authorized partner. 100% genuine products.
Features & Specifications
Product Overview +
The Broadcast Industry Standard for Rack-Mount Monitoring
The RM-2S10 is the quintessential solution for broadcast engineers and studio managers needing precise, high-density audio monitoring. Designed for use in Outside Broadcast (OB) trucks, control rooms, and engineering racks, this unit offers uncompromising fidelity and versatile signal management in a space-efficient 1U rack-mount chassis.
Flexible Configuration & Expansion
Beyond its generous standard input count, the RM-2S10 supports optional SDI expansion cards, allowing for direct de-embedding of audio from HD/SD-SDI signals—even with optional Dolby® E or Digital encoding. With its combination of precise bargraph metering, phase correlation monitoring, and high-quality Class-D amplification, it provides a "source-of-truth" for any professional audio environment.

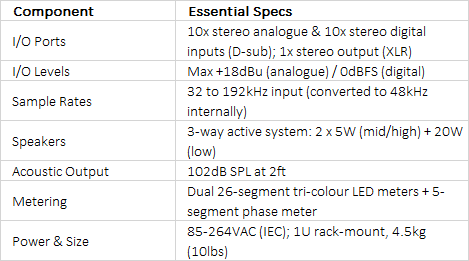

Technical Specifications +
technical specifications
