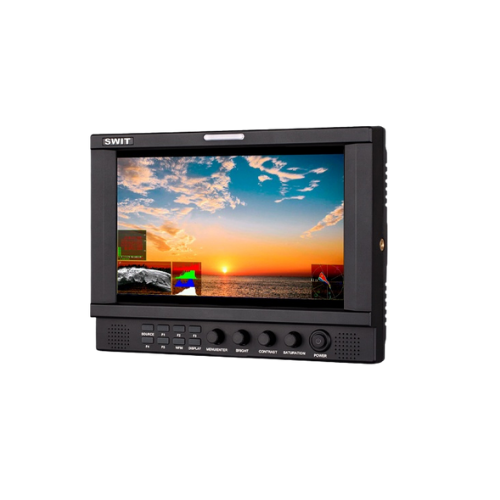

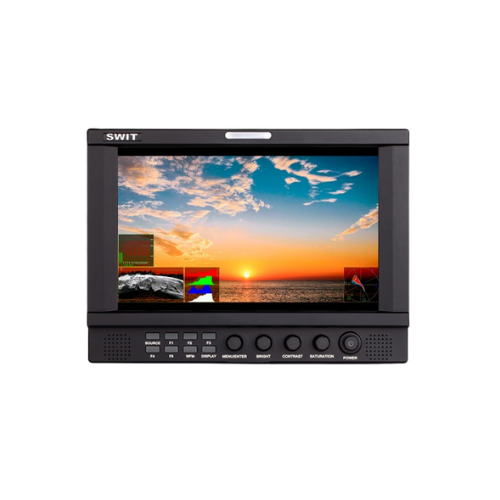

9-inch Full HD IPS Display

The S-1093F features a high-quality 9-inch IPS LCD panel with 1920×1200 resolution, delivering sharp visuals, accurate colors, and wide 170° viewing angles. The LED backlight ensures consistent brightness and clarity for professional monitoring environments.

Durable Protective Glass Design

Equipped with built-in protective glass, the monitor screen is safeguarded against scratches and physical damage, making it ideal for field and studio use.

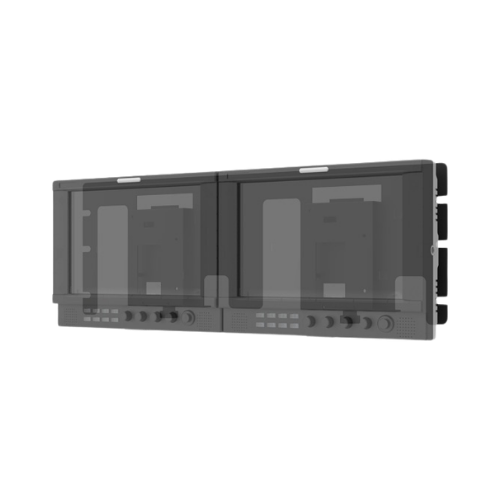

Flexible Rack Mount Installation

With optional dual monitor rack mount support, two S-1093F units can be installed into a standard 19-inch rack using the MA-RT93 bracket. This provides a compact and efficient monitoring solution for broadcast setups.

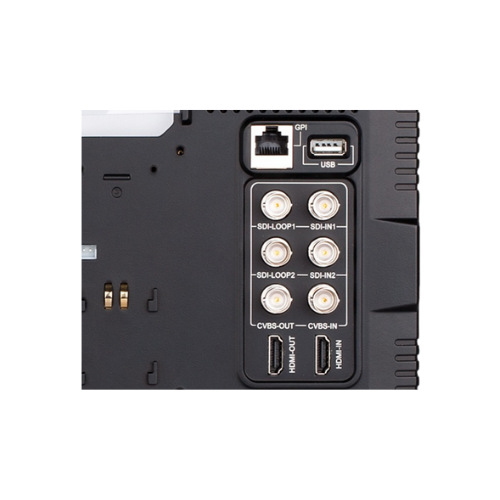

Multi-format Connectivity

The monitor supports a wide range of input and output formats including SDI, HDMI®, and CVBS, ensuring compatibility with various broadcast and production equipment.

Advanced Video Analysis Tools

Includes waveform (Y/Cb/Cr/R/G/B), vector scope, and histogram for accurate signal monitoring. These tools help professionals analyze brightness, color, and saturation in real time.

Professional Audio Monitoring

Supports up to 16-channel embedded audio meters with alerts. Users can select any 2 channels for output via speakers or headphones.

Broadcast Control & TALLY Support

Features TSL 3.1/4.0 UMD and text TALLY display, along with customizable TALLY lights (red, green, yellow) via RS485 control.

Flexible Power Options

Supports DC input and multiple battery plates (V-mount, Gold mount, and DV batteries), making it suitable for both studio and on-location use.
