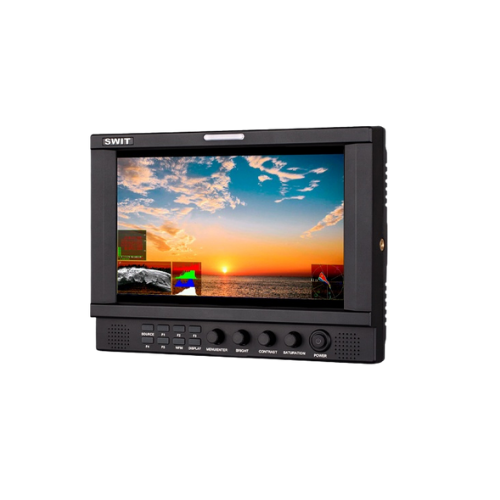

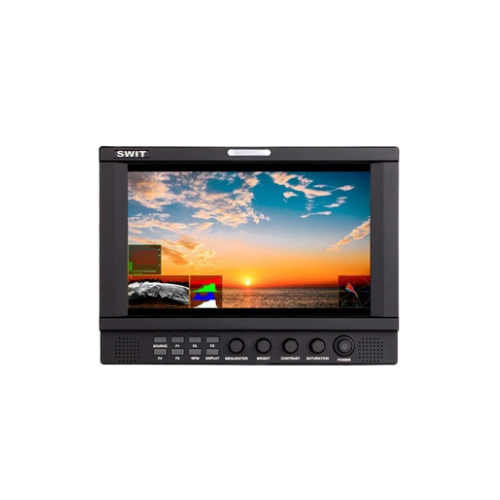

Full HD IPS Display

The S-1093F features a 9-inch IPS LCD panel with 1920×1200 resolution, delivering sharp images and accurate colors. The wide 170° viewing angle ensures consistent visuals from different positions.

Built-in Screen Protection

The monitor includes a durable protective glass layer that safeguards the screen from scratches and accidental damage, making it reliable for field and studio use.

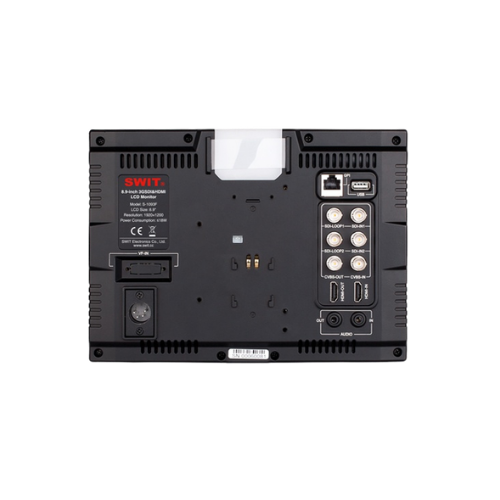

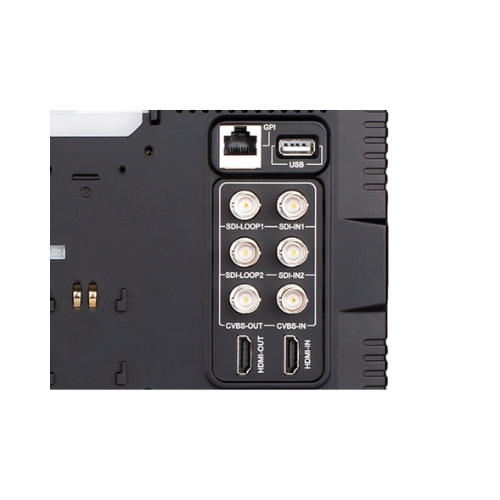

Versatile Input and Output Options

Supports 2K/3G/HD/SD-SDI, HDMI, and CVBS signals with loop outputs. It also includes analog audio input and output for flexible connectivity in various production environments.

Professional Video Analysis Tools

Equipped with waveform (Y/R/G/B), vectorscope, and histogram displays, allowing precise monitoring of exposure, color, and signal quality. Users can customize position, size, and transparency.

Advanced Audio Monitoring

Displays up to 16-channel embedded audio meters with alert indicators. Users can select any 2 channels for output via the 3.5mm headphone jack or built-in speakers.

UMD and TALLY Support

Compatible with TSL 3.1/4.0 protocols for UMD and TALLY display. It supports address selection and text display via RJ45 interface for broadcast workflows.

Flexible Power Options

Supports multiple power sources including DC input, V-mount, Gold mount, and various DV battery plates, offering flexibility for both studio and field operations.
