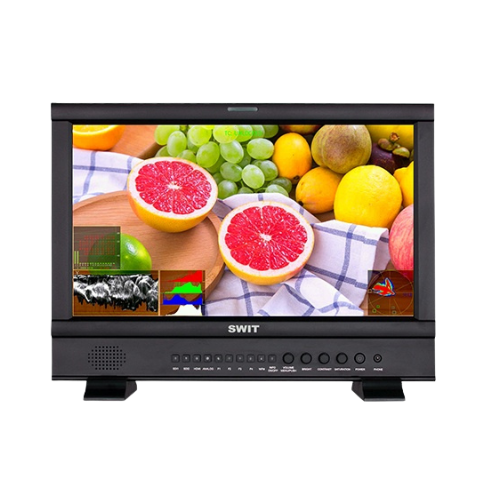

Professional Full HD IPS Display

The S-1173F features a 17.3-inch IPS LCD panel with Full HD resolution, delivering accurate colors and consistent image quality. Its wide viewing angles ensure clear visibility in studio environments.

Comprehensive Multi-Format Connectivity

Designed for broadcast and production workflows, this monitor supports SDI, HDMI®, VGA, YUV, and CVBS inputs. Dual SDI inputs with loop outputs allow seamless integration into professional setups.

Advanced Video Analysis Tools

Built-in waveform, vectorscope, and histogram tools provide precise monitoring of luminance, color balance, and saturation—critical for professional video production and color grading.

3DLUT Calibration & Color Accuracy

With support for 17×17×17 3DLUT calibration, users can achieve highly accurate color reproduction. The monitor also includes built-in De-log LUTs and allows custom LUT uploads via USB.

Professional Audio Monitoring

The monitor supports up to 16-channel embedded audio meters with alert indicators. Users can select and output any two channels for real-time monitoring.

Broadcast-Ready Features

Includes TSL UMD and text TALLY display, timecode, AFD, and safety markers. These features make it ideal for live production and studio broadcasting environments.

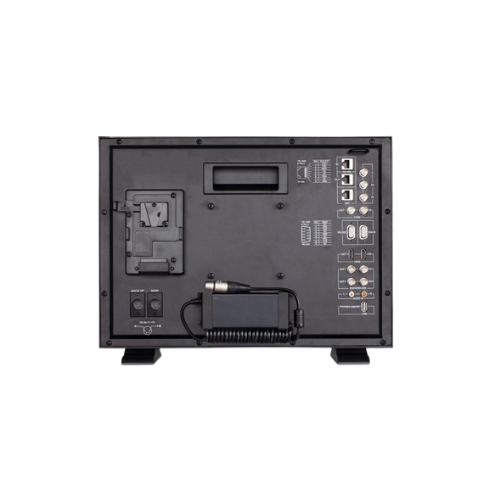

Flexible Power & Installation

Supports AC power, DC input, and V-mount/Gold mount batteries. Its 19-inch 7U rack-mount design makes it perfect for studio racks and OB vans.
