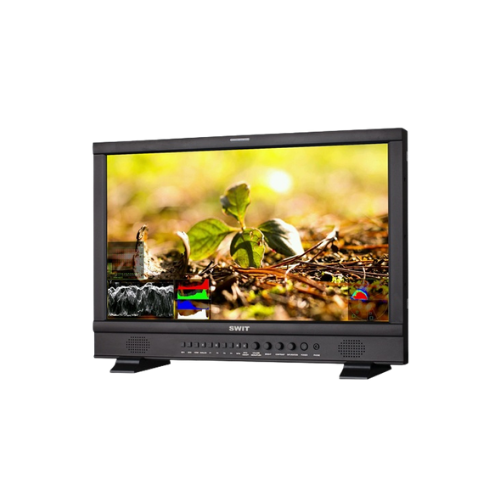

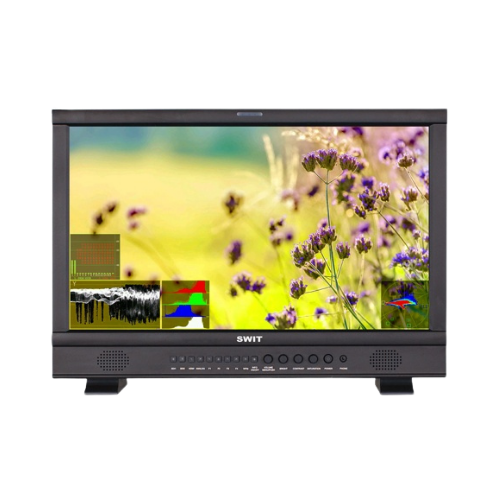

Large 21.5-inch Full HD IPS Display

The S-1223F features a 21.5-inch IPS LCD panel with Full HD resolution, offering accurate color reproduction and wide 178° viewing angles. Ideal for studio and broadcast environments requiring precise monitoring.

Comprehensive Multi-Format Connectivity

Equipped with SDI, HDMI®, VGA, YUV, and CVBS inputs, this monitor supports a wide range of video sources. Dual SDI inputs with loop outputs ensure smooth workflow integration in professional setups.

Advanced Video Analysis Tools

Built-in waveform, vectorscope, and histogram tools allow real-time monitoring of luminance, chroma, and signal levels. These tools are essential for maintaining broadcast-quality output.

3DLUT Calibration for Accurate Colors

Supports 17×17×17 3DLUT calibration for precise color accuracy. Includes built-in De-log LUTs and allows users to upload custom LUTs via USB for flexible color grading workflows.

Professional Audio Monitoring

Displays up to 16 channels of embedded audio with alert indicators. Users can select any 2 channels for output, ensuring accurate audio monitoring during production.

Broadcast-Ready Features

Includes TSL UMD and text TALLY display, timecode, AFD, H/V delay, and safety markers. Designed for live production, OB vans, and studio environments.

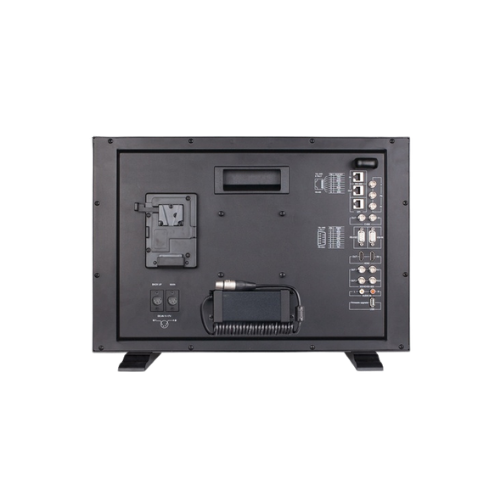

Flexible Power Options

Supports AC and DC power input along with optional V-mount and Gold mount battery plates, making it suitable for both studio and field use.
